Material: Brass

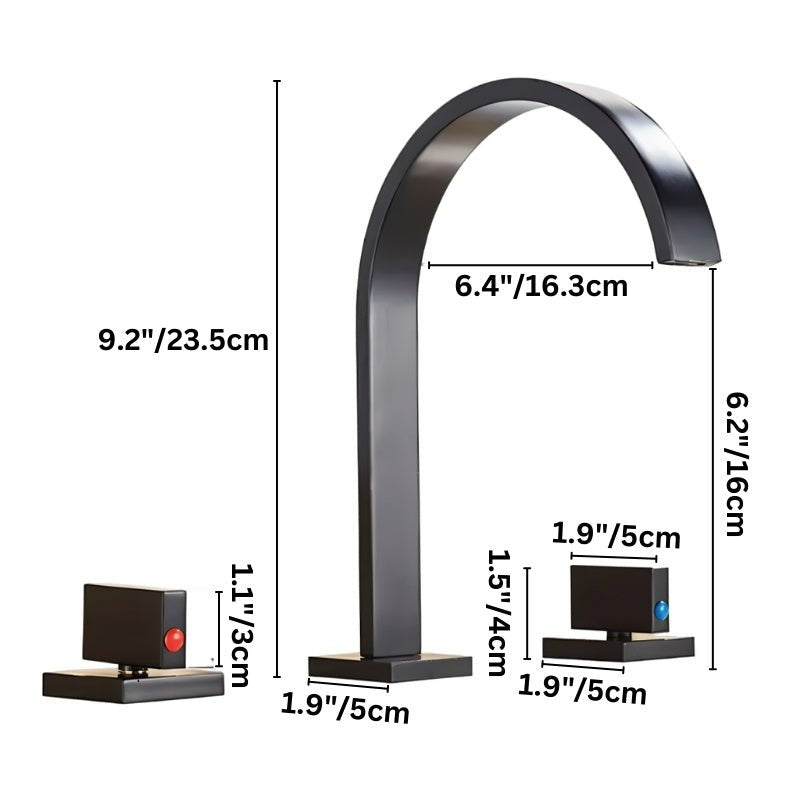

Dimensions: 6.4" x 9.2" / 16.3 x 23.5cm
Tap hole: Triple - 1.8" / 4.5cm
GPM (Gallons Per Minute): 1.9
Minimum pressure: 14 Psi
Medium pressure: 44 Psi
Maximum pressure: 73 Psi
Thread: G1/2 BSP (British Standard Pipe) - Parallel thread: Suitable for most plumbing systems outside North America. NPT (National Pipe Thread) compatibility available: For North American systems (U.S. and Canada). Adapter may be required for full compatibility.
Certifications: CE, NSF/ANSI 61 & 372, UPC/cUPC, WaterSense

Details

Mounting Options: This collection includes both wall-mounted and counter-mounted faucets. Check your product's description before beginning installation.
Thread Compatibility:

• G1/2 BSP thread (standard for most systems outside North America)
• NPT-compatible options available for U.S. and Canadian plumbing. Adapter may be required.

Tools You May Need

• Adjustable wrench
• Pipe tape (Teflon tape)
• Basin wrench
• Plumber’s putty or silicone sealant
• Bucket or towel (for water drainage)
• Drill and anchors (for wall-mounted units)

Installation Steps

A. For Wall-Mounted Faucets

Step 1: Turn Off Water Supply
Shut off the hot and cold water valves and open nearby faucets to release residual pressure.

Step 2: Prepare Water Lines
Ensure that wall outlets for hot and cold water align with your faucet’s inlets. Make any plumbing adjustments before mounting.

Step 3: Install Mounting Hardware
Mark and drill holes on the wall. Use provided anchors or screws to mount the support plate.

Step 4: Connect Supply Lines
Wrap threaded pipe connections with plumber’s tape. Attach hot and cold lines securely to the faucet valve inlets.

Step 5: Mount the Faucet Body
Secure the faucet spout and handles onto the mounted base. Use a wrench to tighten connections, do not overtighten.

Step 6: Seal and Finish
Apply silicone sealant around base fittings for waterproof integrity. Let it cure as recommended.

Step 7: Turn On Water and Test
Open the main water valves. Check for leaks and test water temperature control.

B. For Counter-Mounted Faucets

Step 1: Turn Off Water Supply
Shut off both water valves under the sink. Open the faucet to drain any remaining water.

Step 2: Position Faucet and Handles

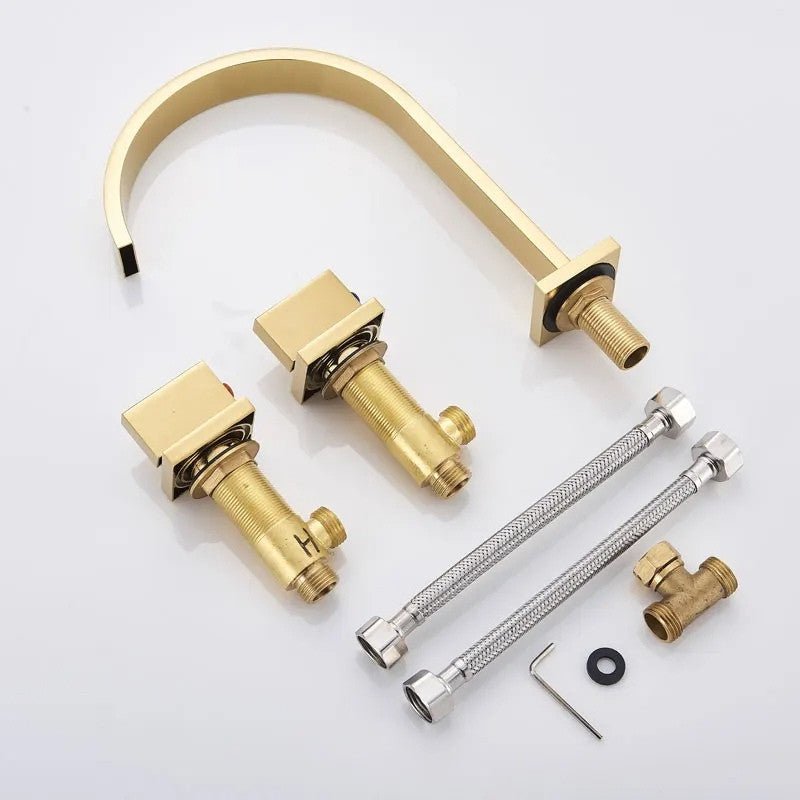

Insert the faucet spout and handle through the pre-drilled holes on the countertop or sink deck.

Step 3: Secure from Beneath
From below the sink, use mounting nuts and washers to hold the faucet components in place.

Step 4: Connect Water Supply Lines
Use plumber’s tape on all threaded joints. Attach the hot and cold lines to their respective valves using flexible connectors.

Step 5: Seal the Base
Apply plumber’s putty or silicone around the faucet base (if required) to prevent leaks.

Step 6: Turn On Water and Inspect
Restore water supply and test for steady flow, correct temperature, and tight seals.

Important Tips

• Always verify thread compatibility (BSP vs. NPT). Use an adapter where needed.
• If unsure about your plumbing system, consult a licensed plumber.
• Clean aerators periodically for optimal water flow.
• For outdoor wall applications, ensure frost protection in colder climates.
