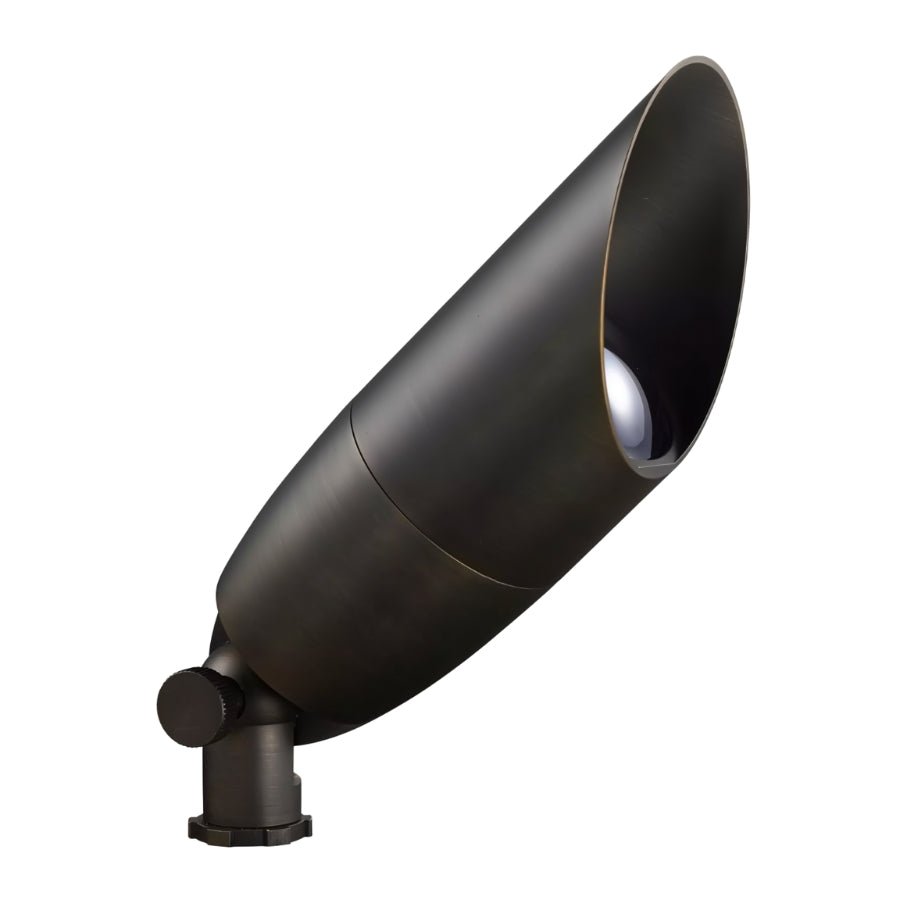

Emant Outdoor Spotlight

Dimmable: Yes (Dimmer Switch)
Chain/Cord Length: N/A
Adjustable Cord: N/A
Canopy/Backplate Dimensions: N/A
Sloped Ceiling Compatible?: N/A
Installation: Hardwired
Voltage: 9-17V AC/DC
Wattage:

• 7W

Lumens: 100 lm/W
Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
Finish:

• Bronze

Material:

• Brass

Light Source: LED Light Bulb (Replaceable)
Bulb Included: Yes
Number of Bulbs: 1
Bulb Base: MR16
Product Dimensions:

• 7" x 2.4" / 18 x 6.1cm

Weight:

• 1.1 Kg

Details:

Dimming: Fixtures with light bulb sockets are dimmable. Integrated LED lights are non-dimmable. For custom dimming projects - just ask us! - Contact Us

Hanging height: Standard hanging length is 60" (1.5m). Need a custom fit? Just ask, we're here to help! Contact Us

Sloped Ceilings: All wire-hung fixtures adjust to sloped or uneven ceilings with ease.

Dimensions: Need specific dimensions not listed on the product page? Contact Us

Instruction:

Step 1: Turn Off Power
Locate the circuit breaker or fuse box that controls the power to the installation area. Switch off the power supply to avoid any electrical hazards during the installation process.

Step 2: Mark the Mounting Holes
Hold the included mounting bracket against the wall at the desired installation height. Use a pencil to mark the positions of the screw holes on the wall. Ensure that the bracket is level.

Step 3: Drill Holes and Insert Anchors
Using a drill, create holes in the marked positions on the wall. Insert included anchors into the drilled holes to provide secure attachment points for the screws.

Step 4: Mount the Bracket
Align the holes in the mounting bracket with the anchors on the wall. Insert screws through the bracket holes and into the anchors. Tighten the screws using a screwdriver to securely fasten the bracket to the wall.

Step 5: Connect the Wiring
Carefully remove the cover of the LED lamp to access the wiring compartment. Identify the black (live/hot), white (neutral), and green or bare copper (ground) wires and connect them to your existing circuit.
