Lámpara de pared exterior Karasi

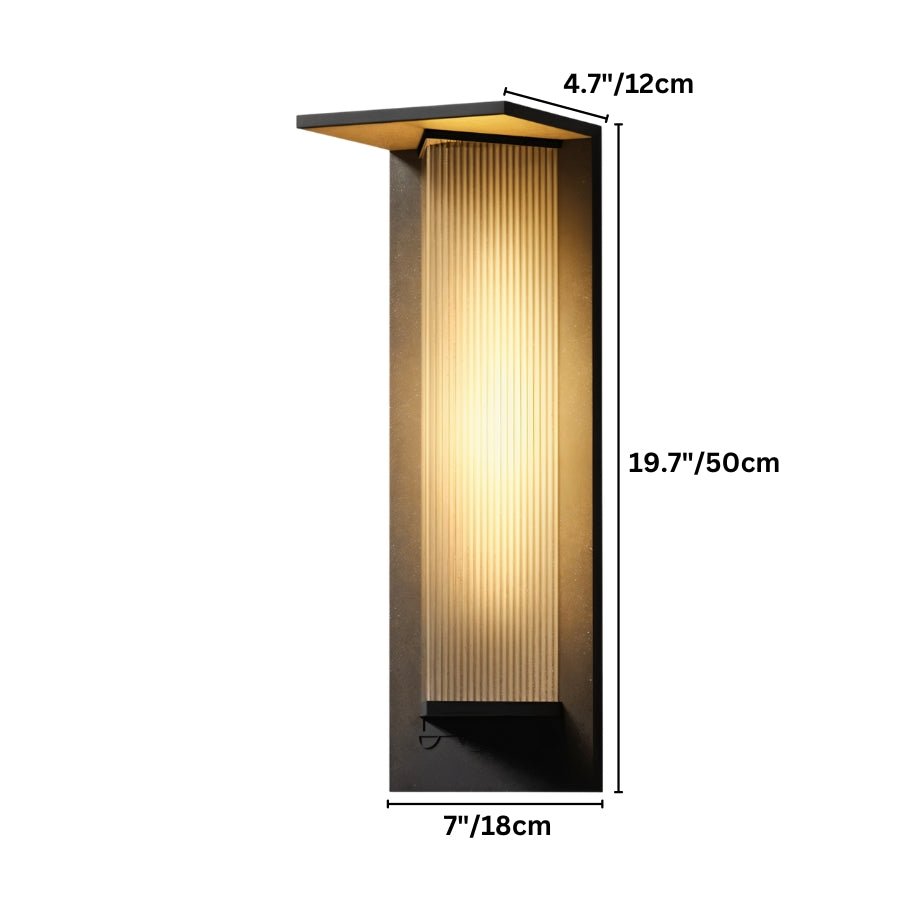

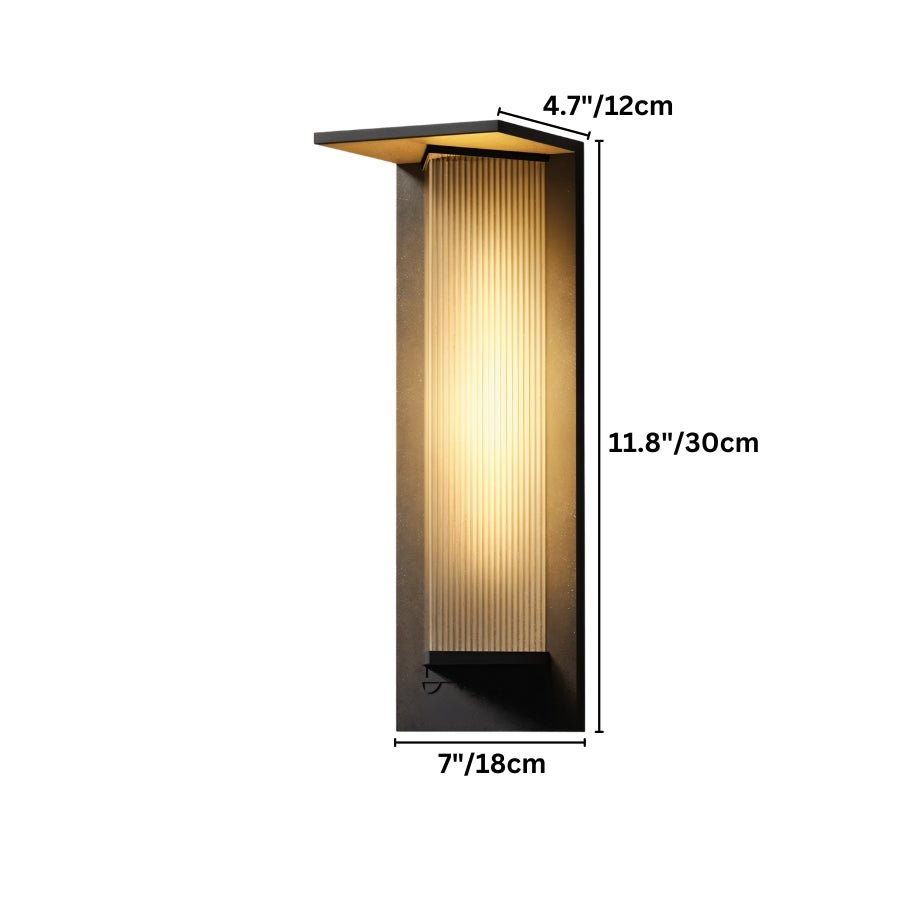

Product Dimensions:
L7"(18cm) x H11.8"(30cm)
L7"(18cm) x H19.7"(50cm)

Wattage (Lumens):
6W (660lm)
10W (1100lm)

Weight: 8.8lbs (4kg)
Material: Stainless Steel, Acrylic
Finish: Nickel
Light Source: Integrated LED
Dimmable: Upon Request
Voltage: 90-260VAC
Installation Type: Wall Mount
Canopy/Backplate Dimensions:
L7"(18cm) x H11.8"(30cm)
L7"(18cm) x H19.7"(50cm)

Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

Details

Dimming: Most socketed wall lamps are dimmable. Integrated LED models are not. For dimmer compatibility or custom solutions, reach out — Contact Us.
Power Options: Depending on the model, your lamp may be hardwired, plug-in, or rechargeable. Check the product details before installation.
Mounting Type: All wall lamps are designed for wall-mount installation. Mounting hardware is included.
Indoor/Outdoor Use: Designed for versatility. Please verify your model is rated for outdoor use if installing outside.
Dimensions: Need detailed measurements? We’re here to help — Contact Us.

Tools You May Need

• Screwdriver
• Wire nuts (included for hardwired models)
• Voltage tester
• Power drill (for new mounting locations)

Installation Steps

Step 1: Identify Your Power Type
Confirm whether your wall lamp is:

• Hardwired - Requires electrical wiring.
• Plug-In - onnects directly to a wall outlet.
• Rechargeable - Mount and charge via included cable.

If Your Lamp Is Hardwired:

Step 2: Turn Off Power
Switch off power at your home's main electrical panel.
Use a voltage tester to ensure wires are not live.

Step 3: Remove the Old Lamp (if replacing)
Unscrew and remove your old wall lamp.
Carefully disconnect wires by removing wire nuts.

Step 4: Attach New Mounting Bracket
Align the new bracket with your junction box or marked wall location.
Use included screws to secure it firmly in place.

Step 5: Connect Wires
Match black (live), white (neutral), and green/bare (ground) wires.
Twist wires together and secure using the provided wire nuts.
Tuck wires neatly into the junction box.

Step 6: Mount the Lamp Fixture
Align the fixture with the bracket and secure it using screws provided.

Step 7: Install Bulb (if applicable)
Insert the recommended bulb type and wattage into the socket.

Step 8: Restore Power and Test
Switch power back on at the panel.
Turn on your lamp to confirm it functions correctly.

If Your Lamp Is Plug-In:
Mount the bracket to the wall using anchors/screws.
Attach the fixture and plug it into a nearby outlet.
Route cord neatly and secure if needed.

If Your Lamp Is Rechargeable:
Mount the bracket using screws and anchors.
Fully charge the lamp using the included cable.
Install the lamp onto the bracket and power it on.

Important Tips

• Always follow local electrical codes.
• Contact a licensed electrician if unsure.
• Regularly dust and clean your fixture to maintain its look and performance.

Need help?

Our support team is ready to assist with installation or product questions.
Email: help@residencesupply.com
