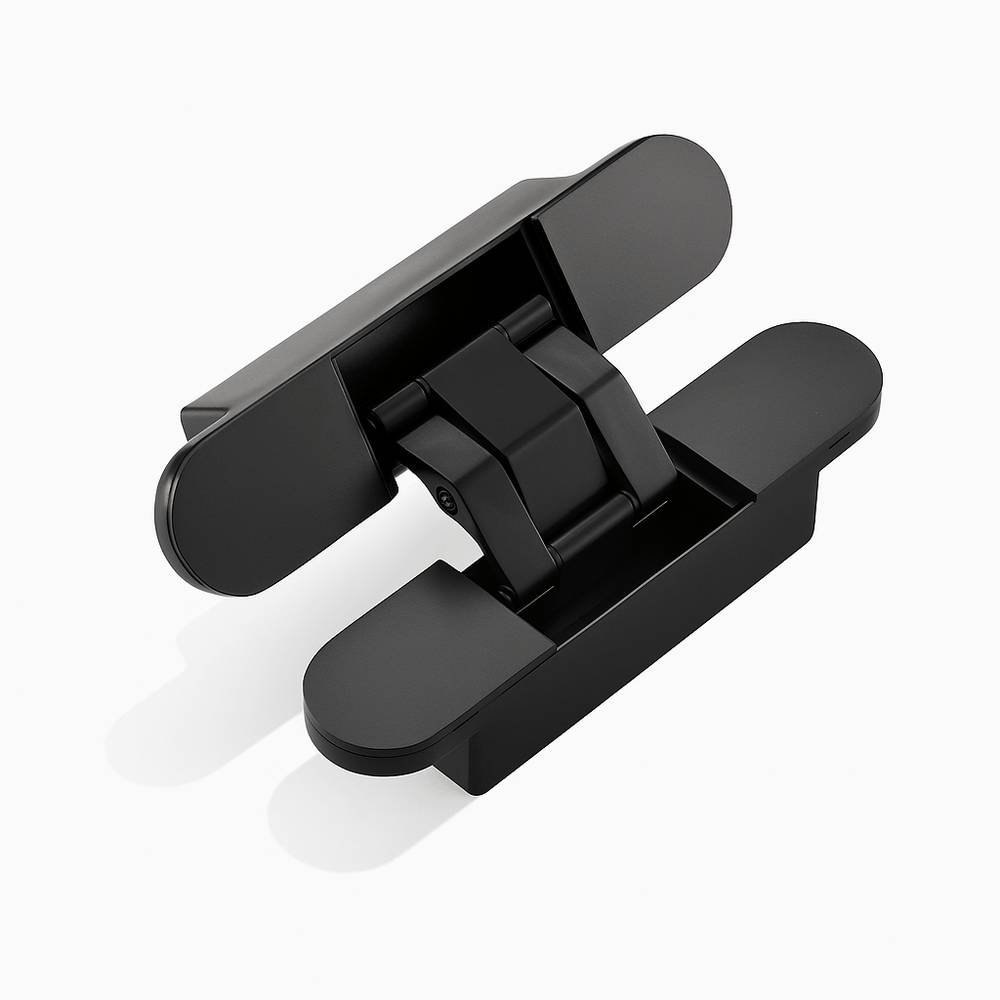

Tuarai Recessed Door Hinge

Product Details

Everything you need to know

Description

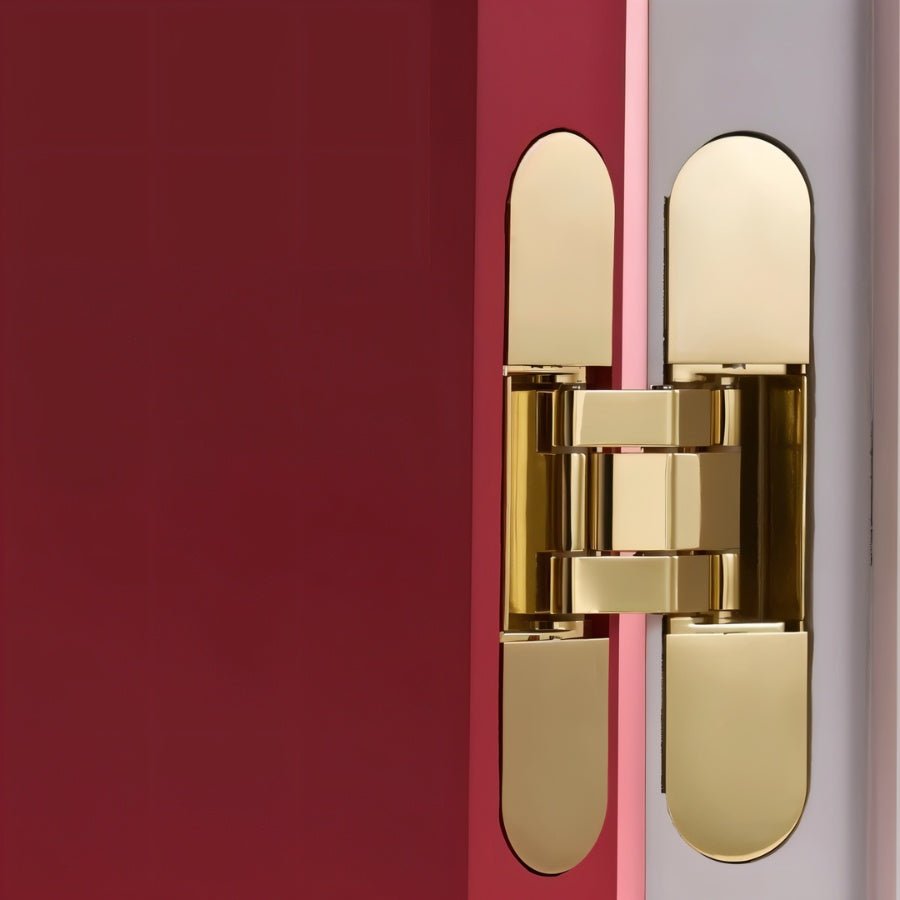

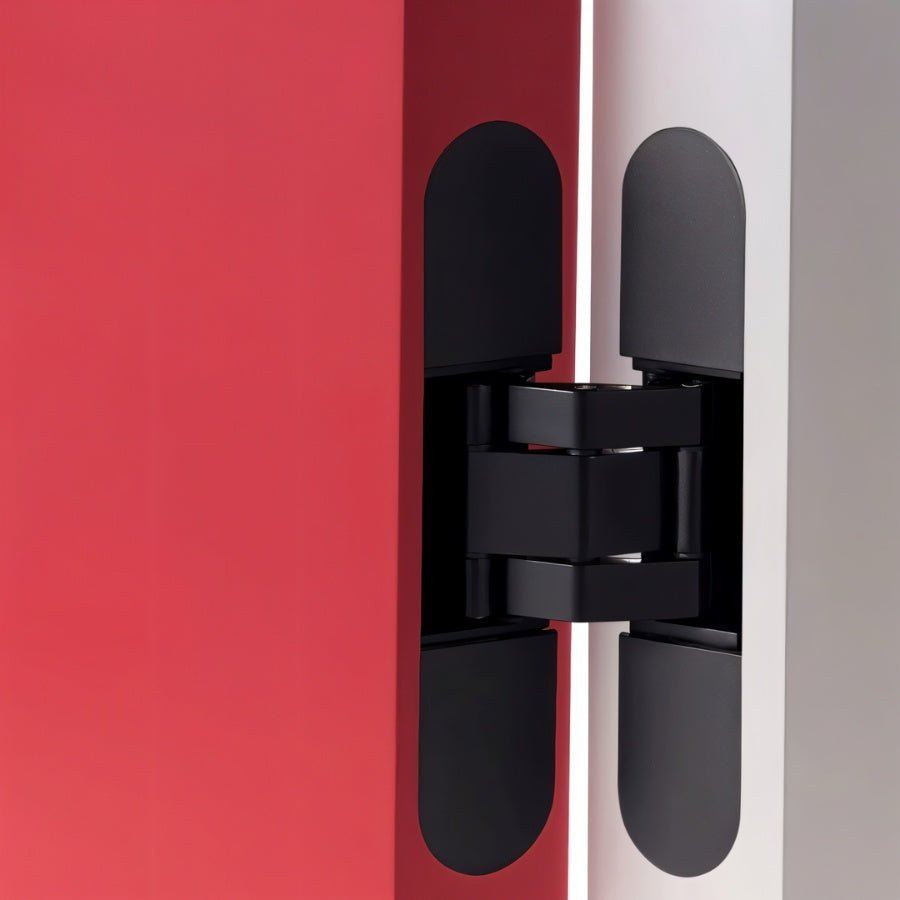

Tuarai Door Hinge is a sleek solution for doors that gives a tidy, modern look. With removable cover plates hiding adjustment screws, this hinge seamlessly blends into your decor. When the door is shut, the hinge is entirely hidden, offering a clean and smooth appearance.

FEATURES:

Conceals adjustment screws for a clean appearance.
Ideal for unrebated, flush, folding, and swing doors.
Engineered for silent and effortless door movement.
Adaptable to various door types for versatility.

DIMENSIONS:

1.1" x 5.3" / 2.8 x 13.5 cm

Product Specifications

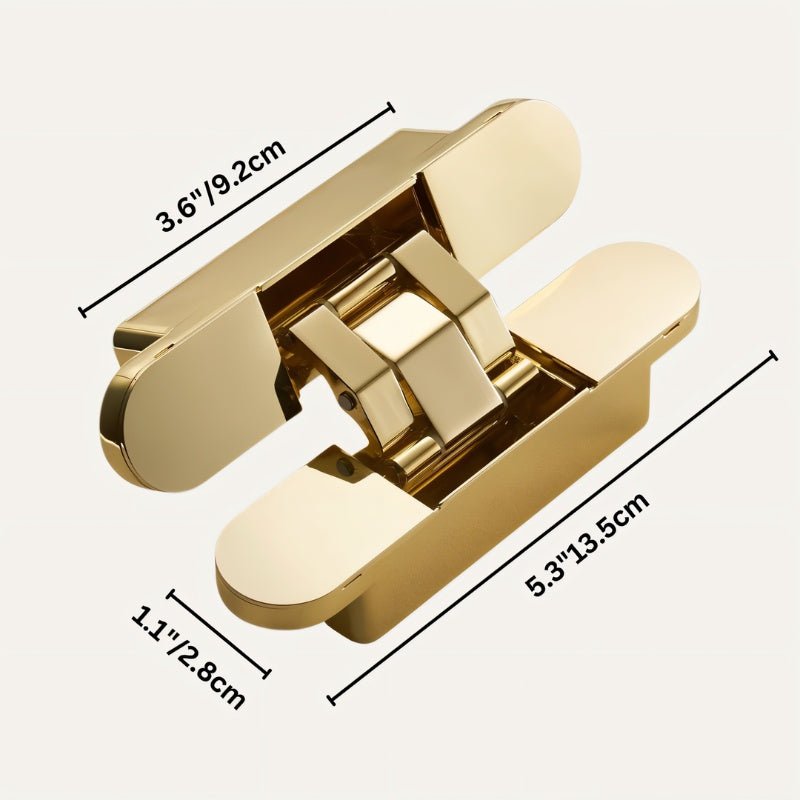

Dimensions: L1.1"(2.8cm) x H5.3"(13.5cm)
Material: Metal

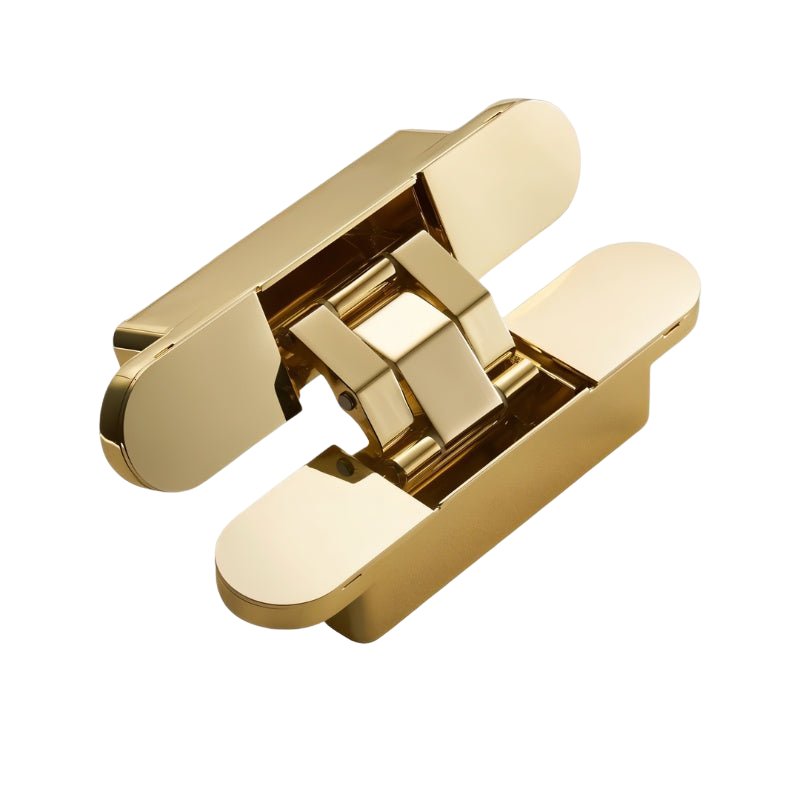

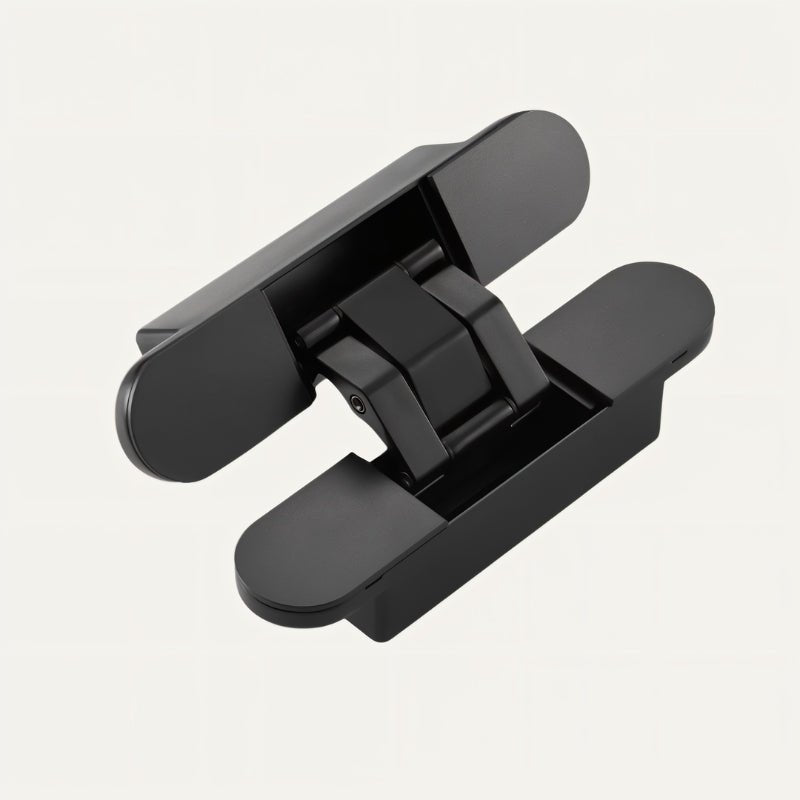

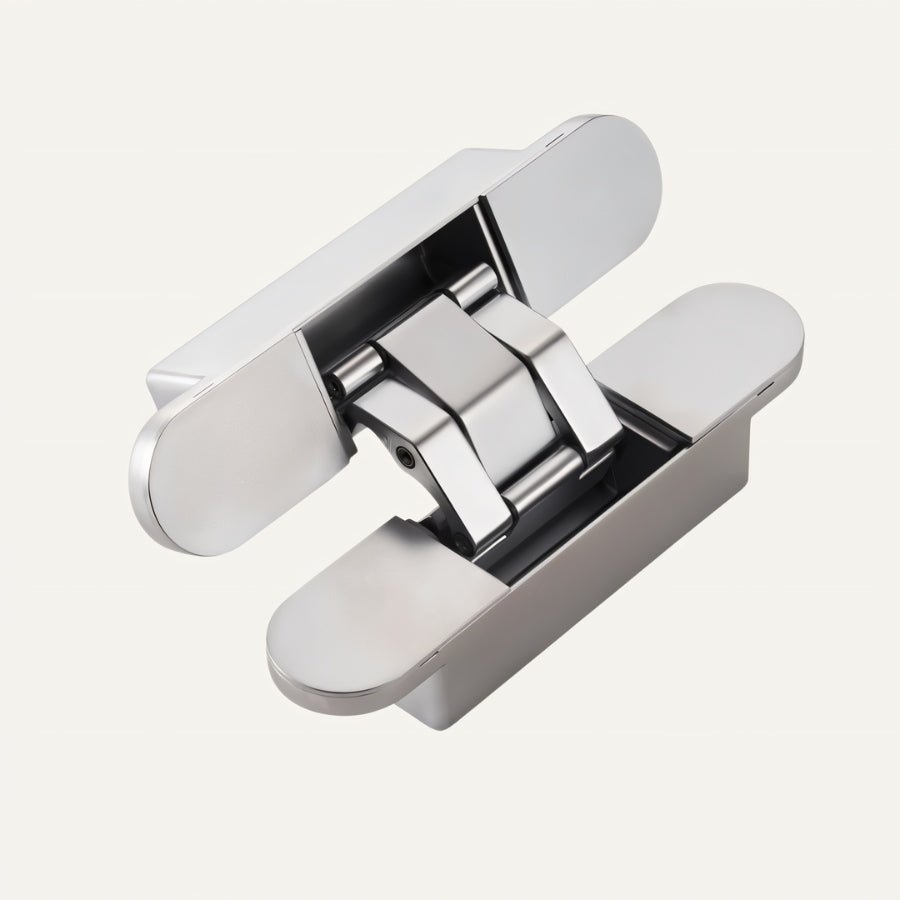

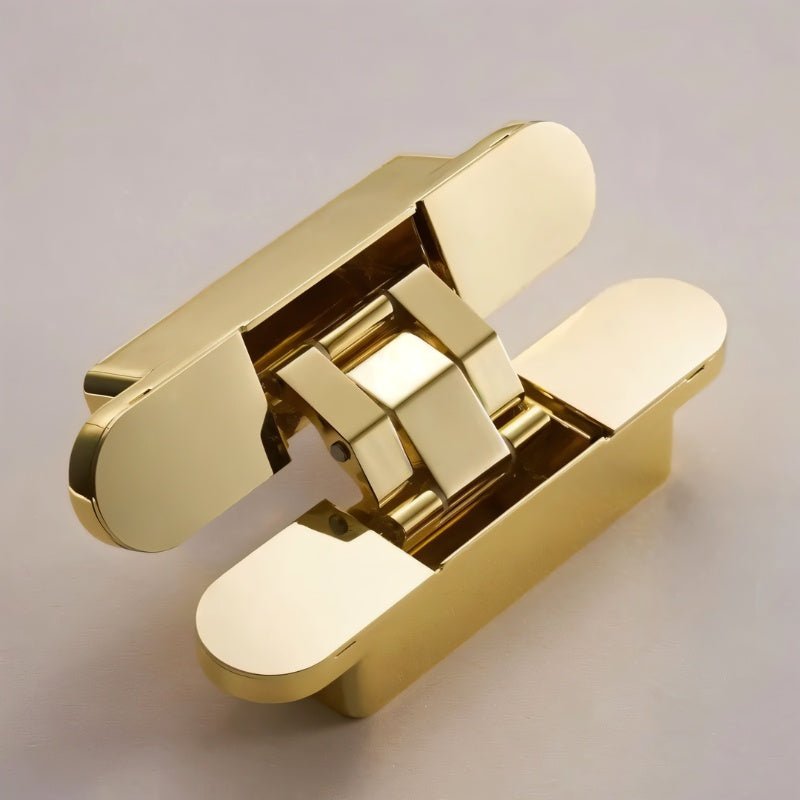

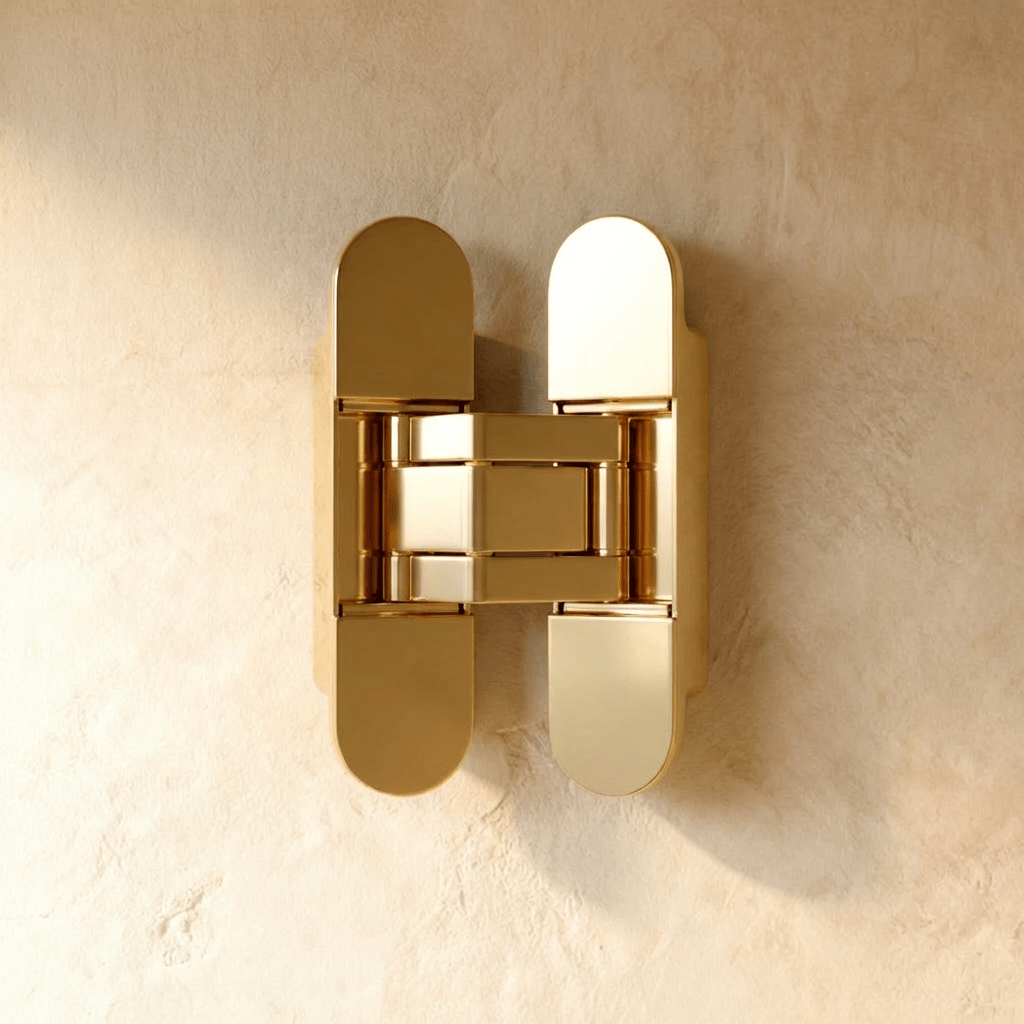

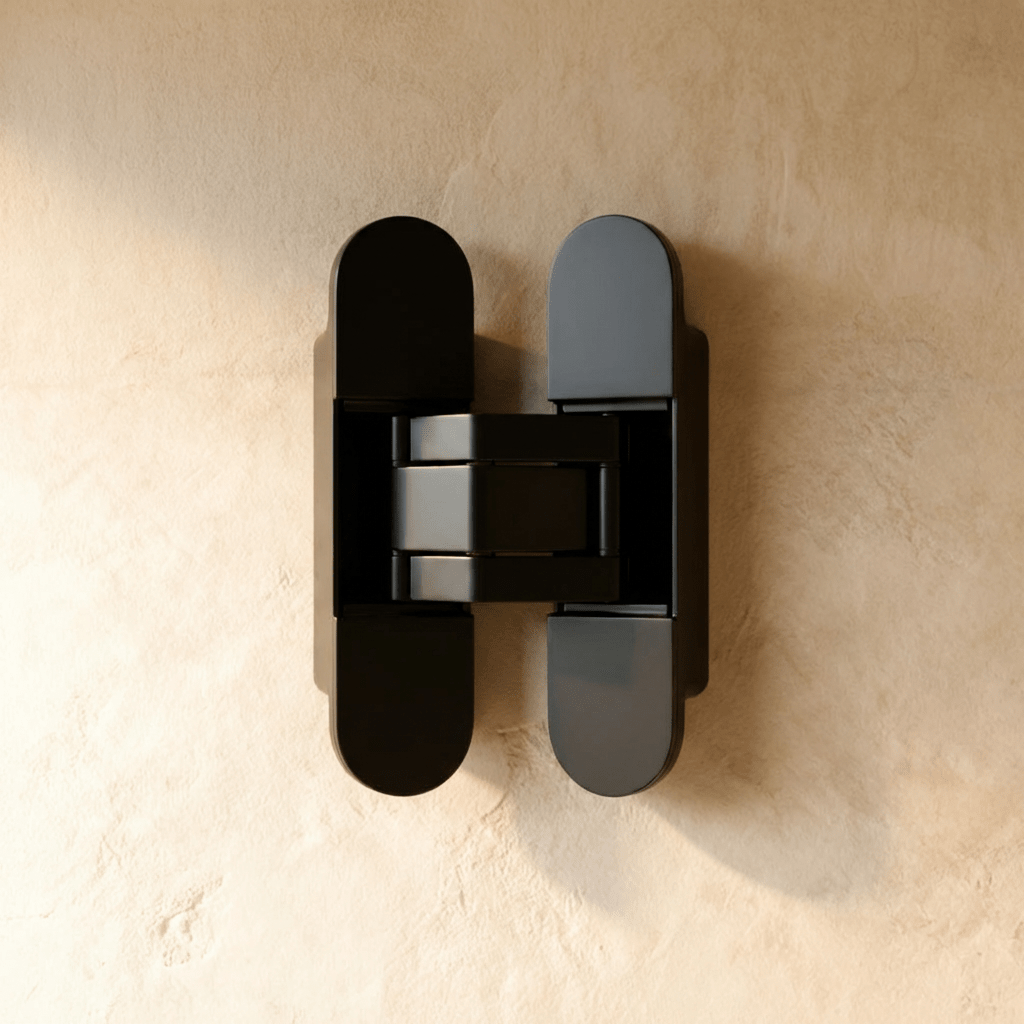

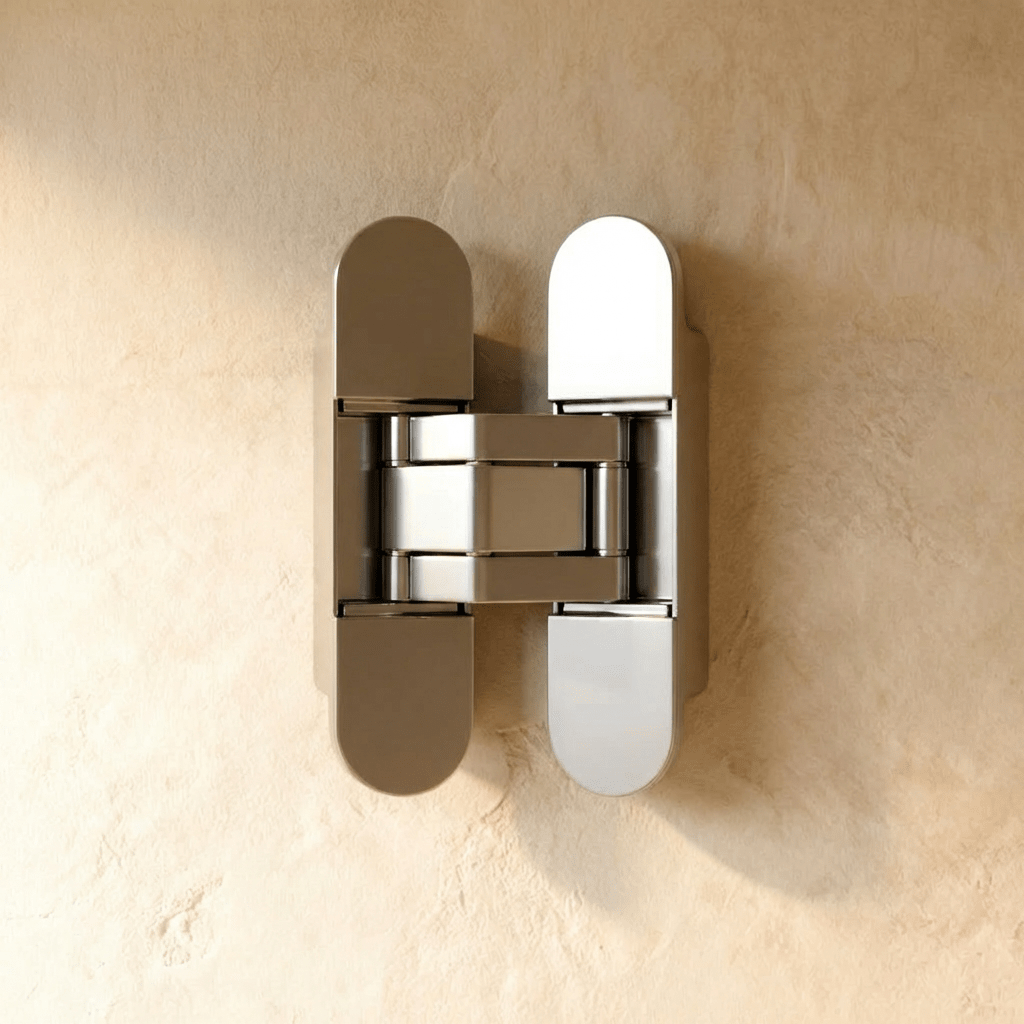

Finish: Brass, Black, Nickel
Weight Capacity: Up to 40 Kg
Pin Type: Non-removable Pin
Bearing Type: Plain Bearings
Installation: Concealed
Application: For Interior Use

We recommend professional installation by a certified technician.

Installation Guide

Details

Mounting Options:
Door hinges are designed for installation on the door edge and the corresponding frame. Placement and method depend on hinge type.

Tools You May Need

Screwdriver (Phillips or flathead)
Drill and drill bits
Chisel (for mortising)
Screws
Tape measure and pencil
Level or square
Hammer and mallet

A. Mortise Hinges

Step 1: Mark Placement

Measure and mark hinge positions on the door edge. Standard placement is:

Top hinge: 5–7 inches from the top of the door.
Bottom hinge: 10–12 inches from the bottom.
Third hinge (if used): centered between top and bottom.

Step 2: Mortise the Door and Frame

Trace the hinge outline. Chisel shallow recesses into the door edge and frame so the hinge leaf sits flush.

Step 3: Pre-Drill Screw Holes

Place the hinge in the mortise, mark screw locations, and drill pilot holes.

Step 4: Attach Hinges

Screw one leaf of each hinge to the door edge. Position the door in the frame and secure the other hinge leaf to the jamb.

Step 5: Test Door Swing

Open and close the door to ensure smooth movement. Adjust screws if necessary.

B. Concealed Hinges

Step 1: Mark and Cut Recess

Mark hinge placement on both the door edge and the frame. Use a router or chisel to cut recesses deep enough to house the concealed hinge body.

Step 2: Position and Pre-Drill

Insert the hinge body into the recess, align flush with the surface, and mark screw holes. Drill pilot holes.

Step 3: Attach Hinges

Secure the hinge body into both the door and the frame using provided screws. Ensure full seating for proper alignment.

Step 4: Adjust Alignment

Most concealed hinges include adjustment screws. Use these to fine-tune door alignment vertically and horizontally.

Step 5: Test Operation

Open and close the door fully to confirm smooth, quiet motion without rubbing or binding.

Important Tips

Always mark hinge locations carefully before cutting or drilling.
Mortising ensures hinges sit flush and the door closes properly.
Use a level to check vertical alignment.
For heavy doors, use at least three hinges.
Periodically tighten screws to maintain performance.

Need Help?

We’re here to assist with installation or compatibility questions.
Email us at: help@residencesupply.com

Why you'll love it

Durable construction for lasting performance
Minimalist design enhances door aesthetics
Easy installation saves time and effort

Request call back

Our design concierge will call you within 2 minutes.

Thank you! We've received your request.

Our design team will reach out within 24 hours to discuss your project.

Design Consultation

Need help planning your project?
Book a complimentary 15-minute consultation with our design team for layout guidance and expert advice.
Book now

Tuarai Door Hinge is a sleek solution for doors that gives a tidy, modern look. With removable cover plates hiding adjustment screws, this hinge seamlessly blends into your decor. When the door is shut, the hinge is entirely hidden, offering a clean and smooth appearance.

FEATURES:

Conceals adjustment screws for a clean appearance.
Ideal for unrebated, flush, folding, and swing doors.
Engineered for silent and effortless door movement.
Adaptable to various door types for versatility.

DIMENSIONS:

1.1" x 5.3" / 2.8 x 13.5 cm

Frequently Asked Questions

Is the hinge compatible with historical home doors?

Yes, the Tuarai Door Hinge is adaptable to various door types, including unrebated, flush, folding, and swing doors, making it suitable for historical home doors.

How easy is the installation process?

Installing the Tuarai Door Hinge is straightforward and designed to be user-friendly. Simply align the hinge with your door and frame, then secure it using the provided screws. The removable cover plates make it easy to access and adjust the screws for a perfect fit. If you're comfortable with basic DIY tasks, you should find the installation process quite manageable!

What materials are used in the hinge construction?

The Tuarai Door Hinge is crafted from high-quality, durable materials designed to ensure longevity and smooth operation. This hinge not only offers a sleek and modern look but also provides the robustness needed for various door types, making it a versatile choice for any interior design project.

Will the hinge maintain the door's silent movement?

Yes, the Tuarai Door Hinge is specifically engineered to ensure silent and effortless door movement. Its design focuses on providing a seamless and quiet operation, making it ideal for environments where noise reduction is crucial. The hinge's features, including its ability to conceal adjustment screws, contribute to its overall functionality and efficiency in maintaining a silent operation when the door is in use. This makes it an excellent choice for various door types, including unrebated, flush, folding, and swing doors, where maintaining quietness is beneficial.

Does the hinge support various door types?

Yes, the Tuarai Door Hinge is designed to support various door types, making it a versatile choice for different applications. It is specifically engineered to be ideal for unrebated, flush, folding, and swing doors. This adaptability allows it to seamlessly integrate with a wide range of door styles, ensuring both functionality and aesthetic coherence in diverse architectural environments.

Does the hinge come with removable cover plates?

Absolutely! The Tuarai Door Hinge comes with removable cover plates that effectively conceal the adjustment screws, ensuring a clean and modern look that seamlessly blends into your decor. This feature is part of what makes the Tuarai Door Hinge an excellent choice for achieving a tidy and sophisticated appearance in your home.

Will the hinge blend seamlessly with my decor?

Yes, the Tuarai Door Hinge is designed to blend seamlessly with your decor by concealing adjustment screws with removable cover plates and being entirely hidden when the door is shut, offering a clean and modern look.

How does the hinge handle frequent use?

The Tuarai Door Hinge is engineered for silent and effortless door movement, making it ideal for frequent use.

Is the hinge adaptable for different door styles?

Yes, the Tuarai Door Hinge is adaptable for unrebated, flush, folding, and swing doors.

Does the hinge ensure a clean and smooth appearance?

Yes, the Tuarai Door Hinge ensures a clean and smooth appearance by concealing adjustment screws and being entirely hidden when the door is shut.
