Dimmable: No
Chain/Cord Length:
Adjustable Cord:
Canopy/Backplate Dimensions: 11.8"/30cm , 19.6"/50cm , 27.5"/70cm
Sloped Ceiling Compatible?:
Installation: Wall Mount
Voltage: 90-260VAC
Wattage:

Lumens: 110lm/watt
Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
Finish:

Material:

• Iron
• Acrylic

Light Source: Integrated LED
Bulb Included: Yes
Number of Bulbs: 4
Bulb Base:
Product Dimensions:

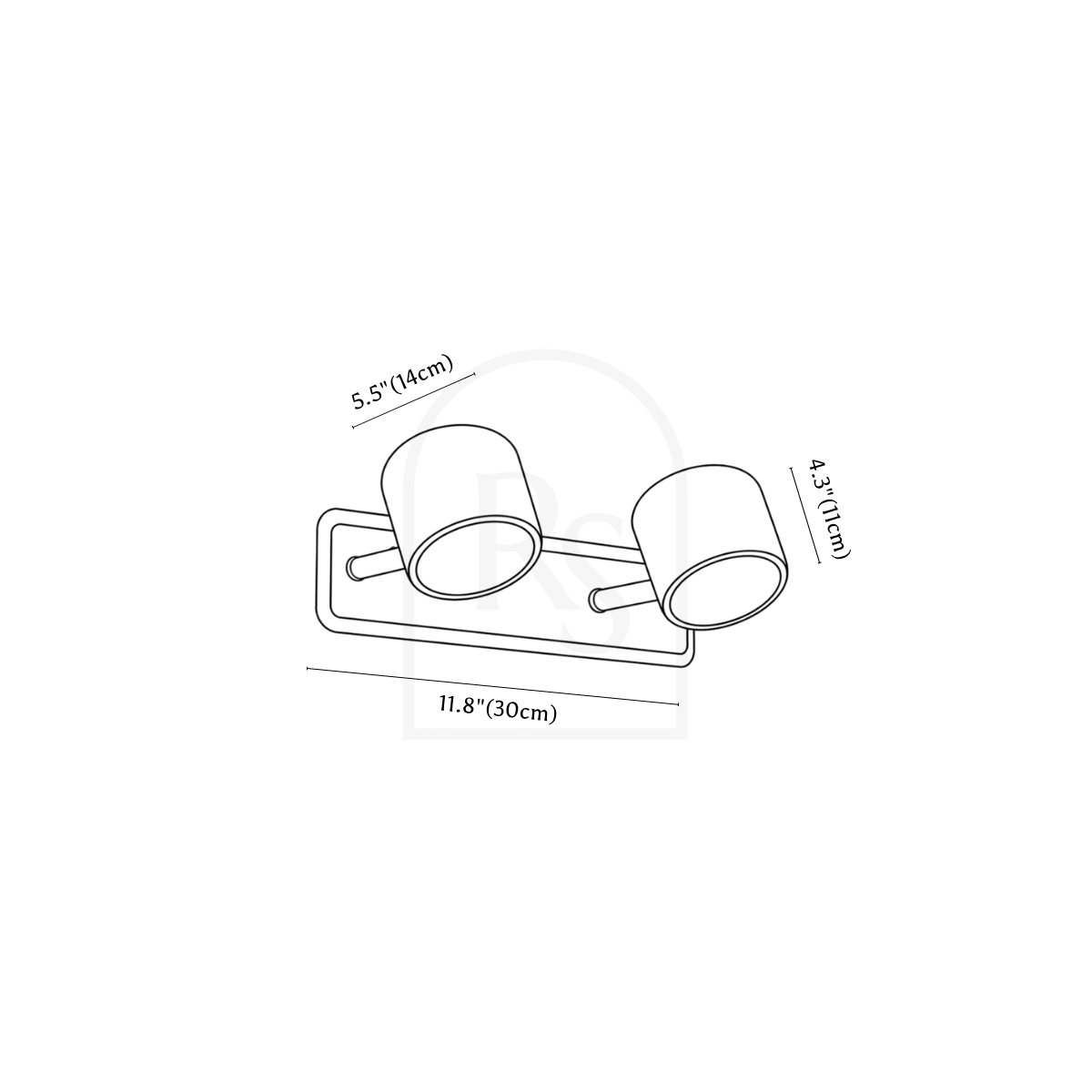

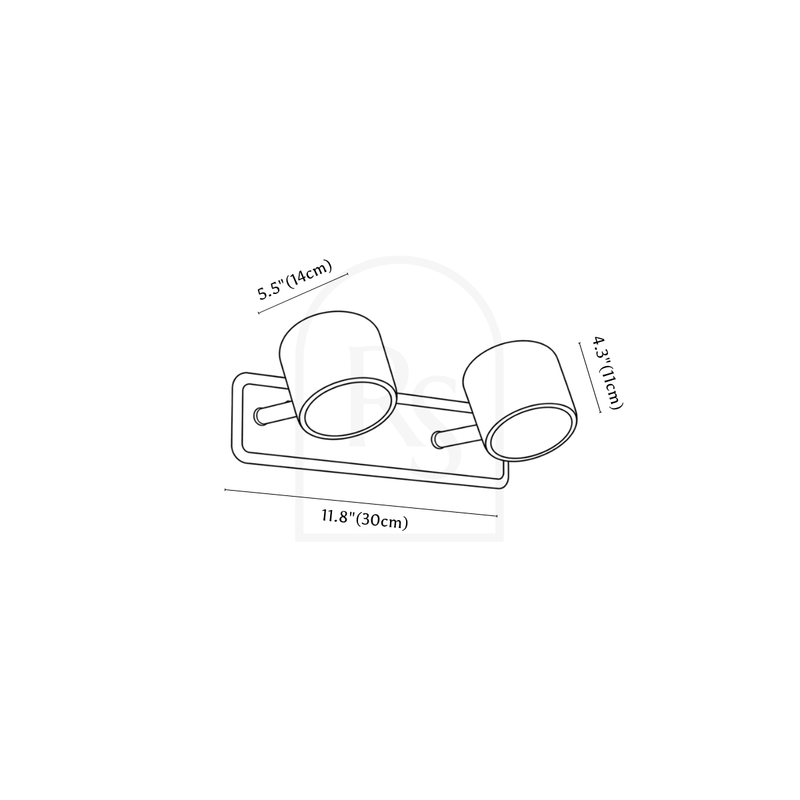

• 2 Lights - 4.3" x 11.8" / 11 x 30cm / 10W

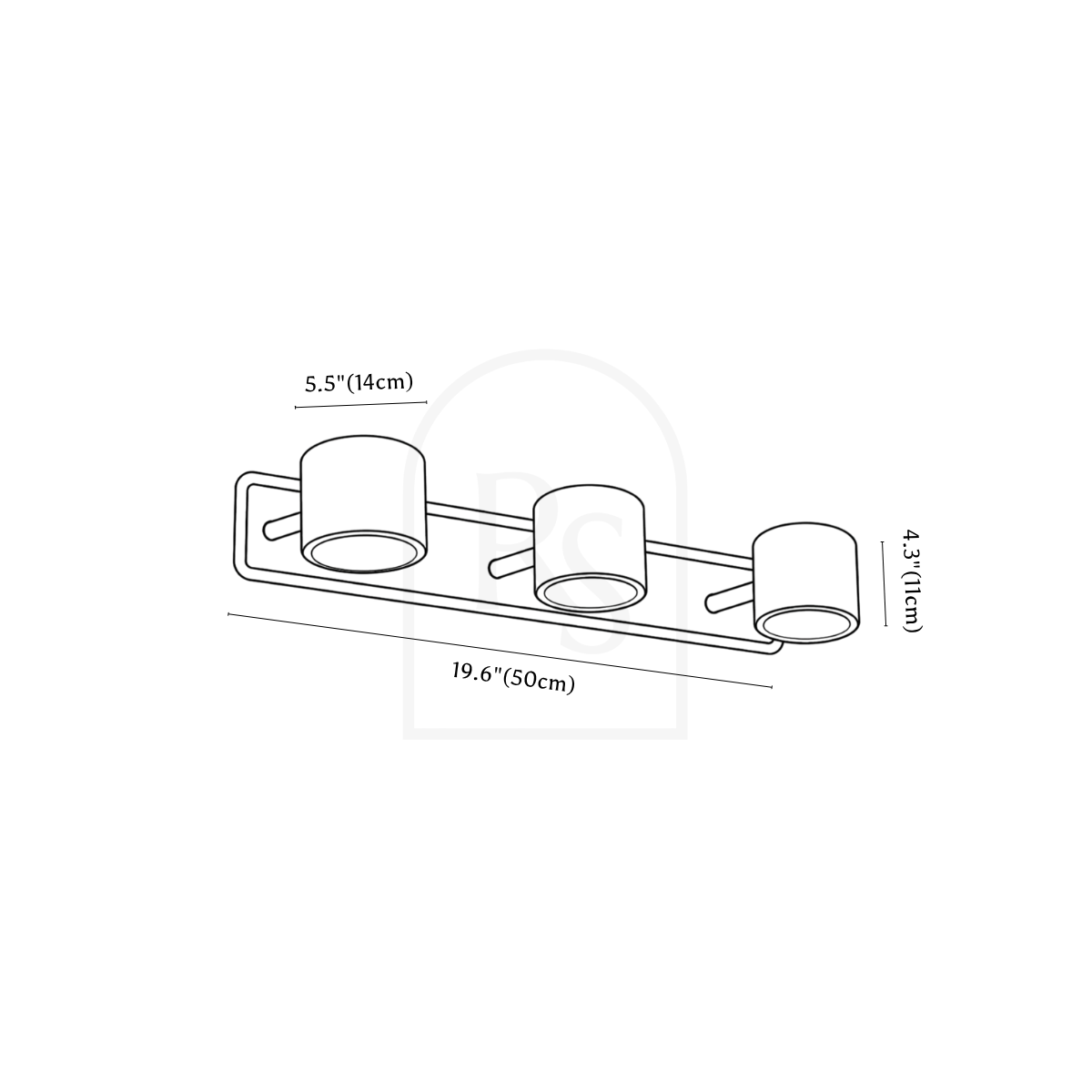

• 3 Lights - 4.3" x 19.6" / 11 x 50cm / 15W

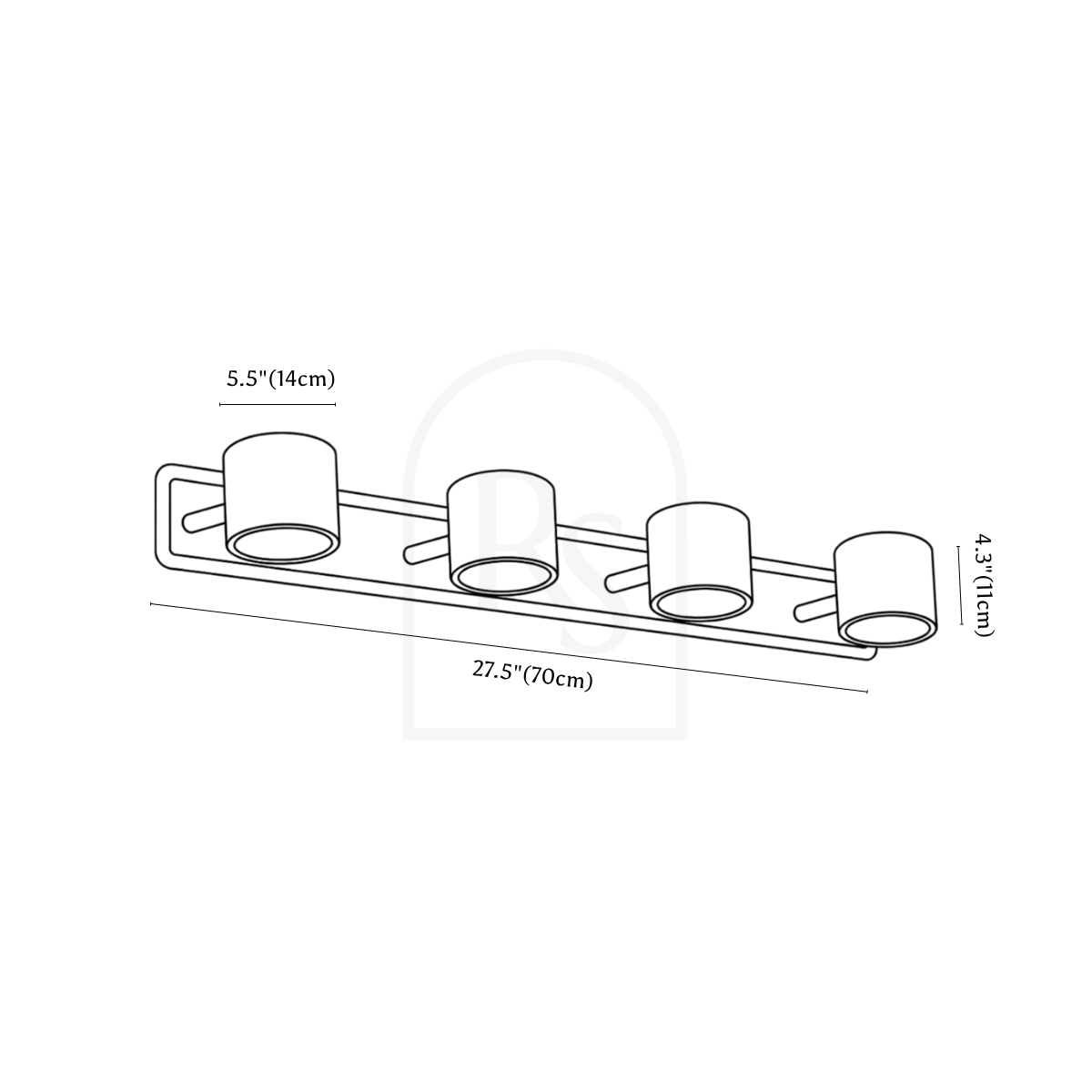

• 4 Lights - 4.3" x 27.5" / 11x 70cm / 20W

Weight:

Follow these easy steps to install your new wall lamp, whether indoors or outdoors. This guide covers replacing an existing wall sconce.

Tools Needed:

• Screwdriver
• Wire nuts (included)
• Voltage tester

Installation Steps:

1. Turn Off Power:

• Switch off power at your home's main electrical panel.
• Use a voltage tester to confirm the power is off.

2. Remove Old Lamp:

• Unscrew and remove your old wall lamp from the junction box.
• Carefully disconnect the wires by removing any wire nuts.

3. Attach New Mounting Bracket:

• Place the new mounting bracket onto the existing junction box.
• Secure the bracket using the screws provided.

4. Connect Wires:

• Match and connect the wires from your new lamp to those in the junction box:
• Twist wires together and secure them using the wire nuts provided.

5. Mount Lamp Fixture:

• Align your new lamp with the mounting bracket.
• Securely fasten the fixture to the bracket using provided screws.

6. Install Light Bulb (if needed):

• Insert the recommended bulb type and wattage into the lamp socket.

7. Restore Power and Check:

• Turn power back on at your electrical panel.
• Switch on your lamp to test it works properly.

Important Tips:

• Always follow local electrical codes.
• If unsure, contact a qualified electrician.
• Regularly clean your lamp for the best appearance and performance.

Need help? Reach out to our support team at help@residencesupply.com.
