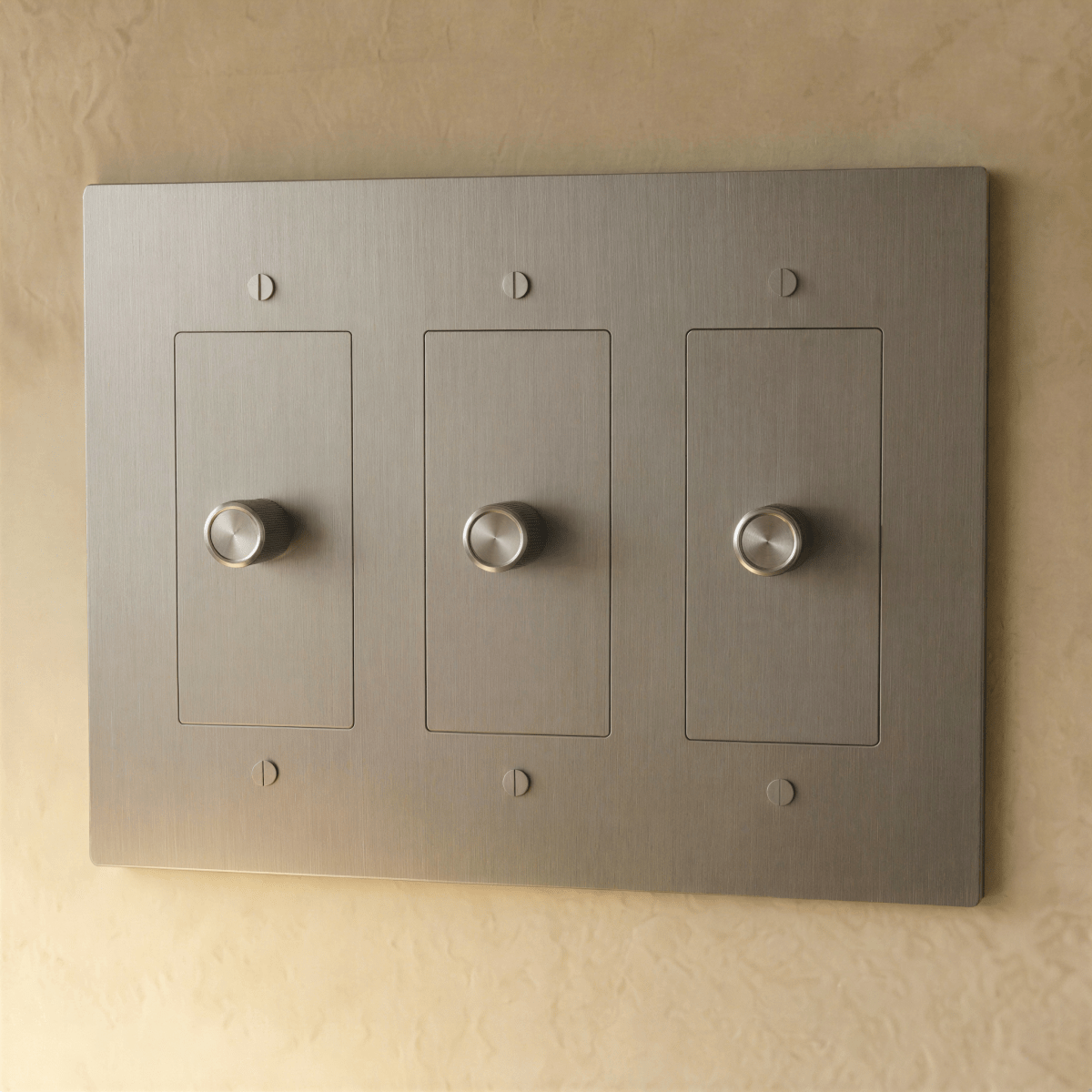

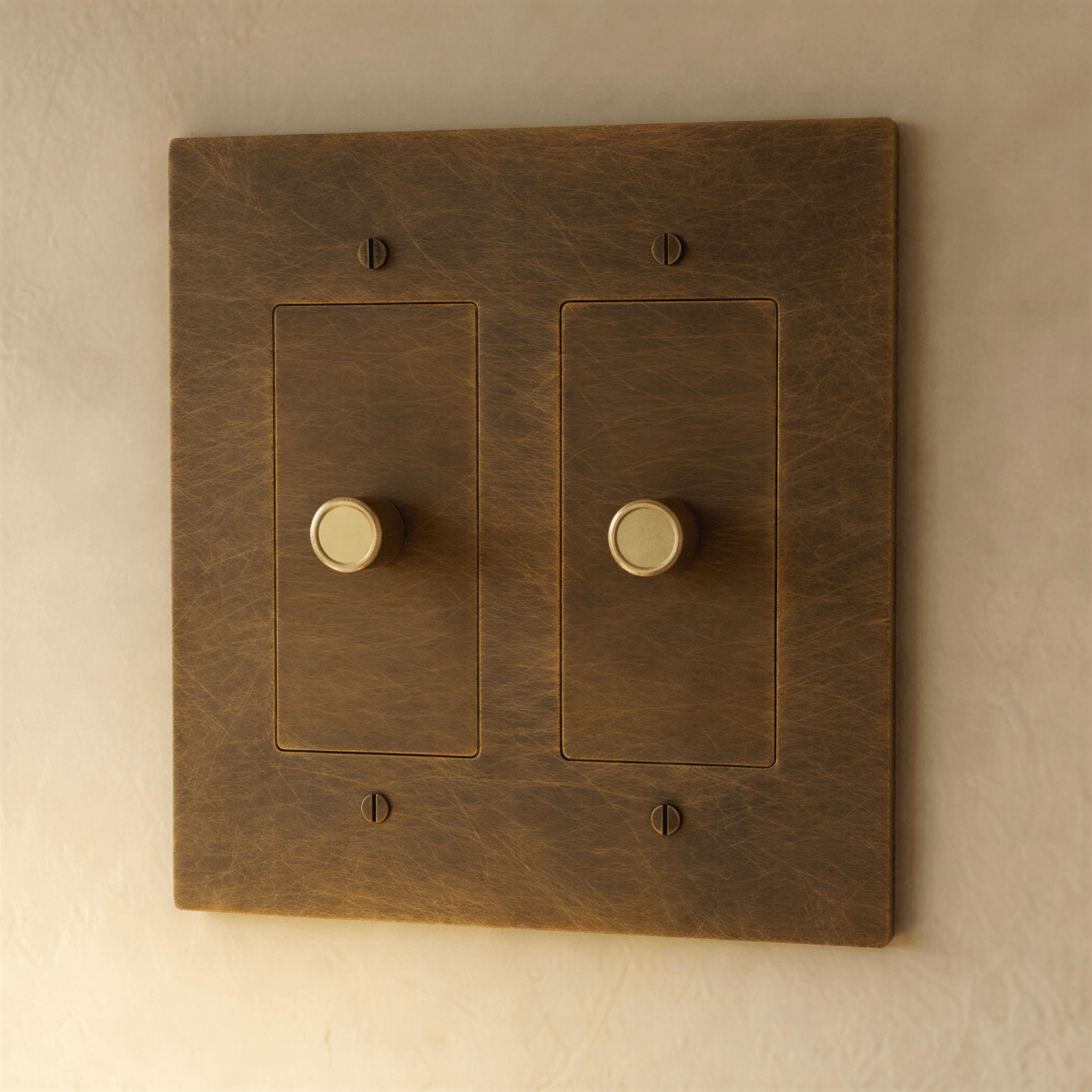

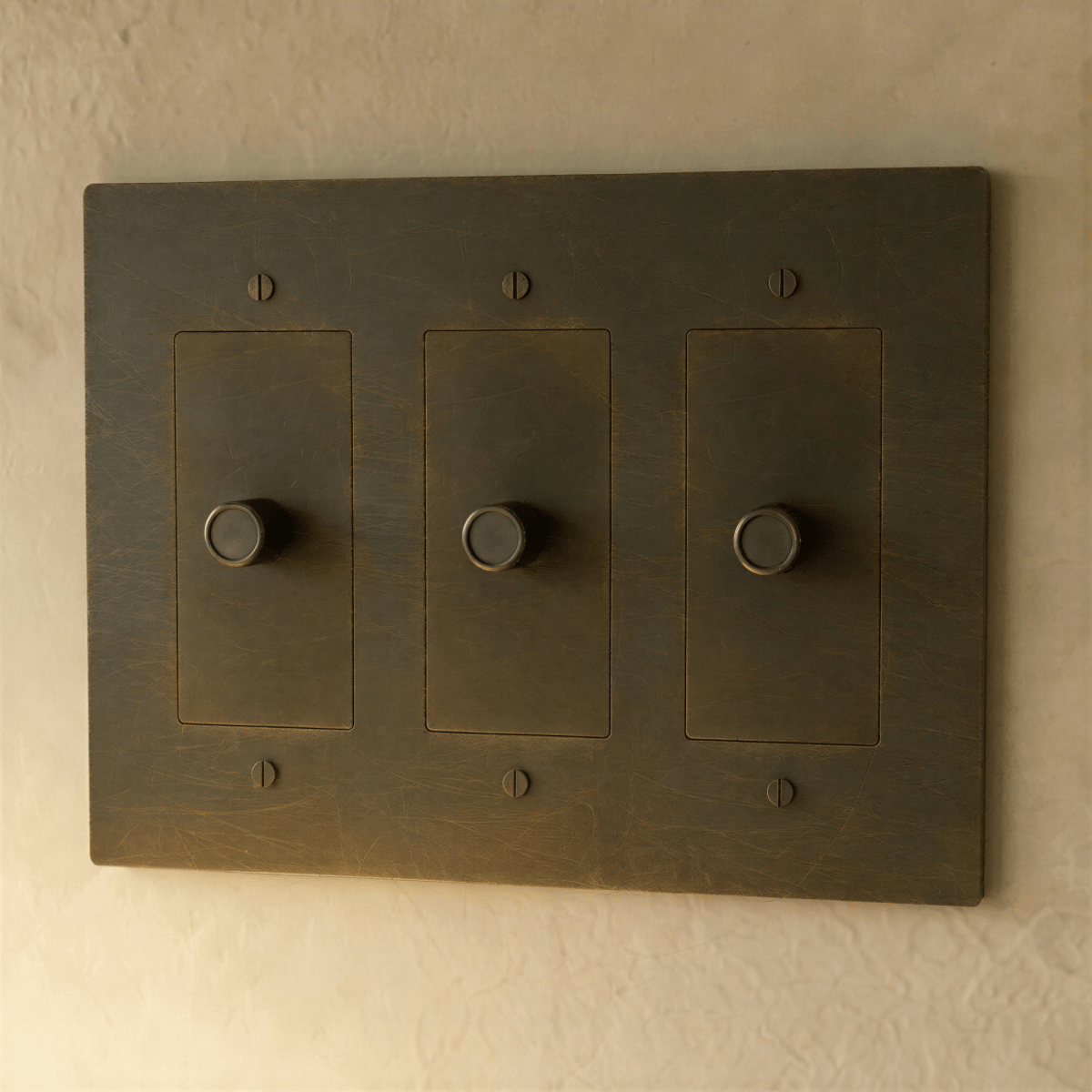

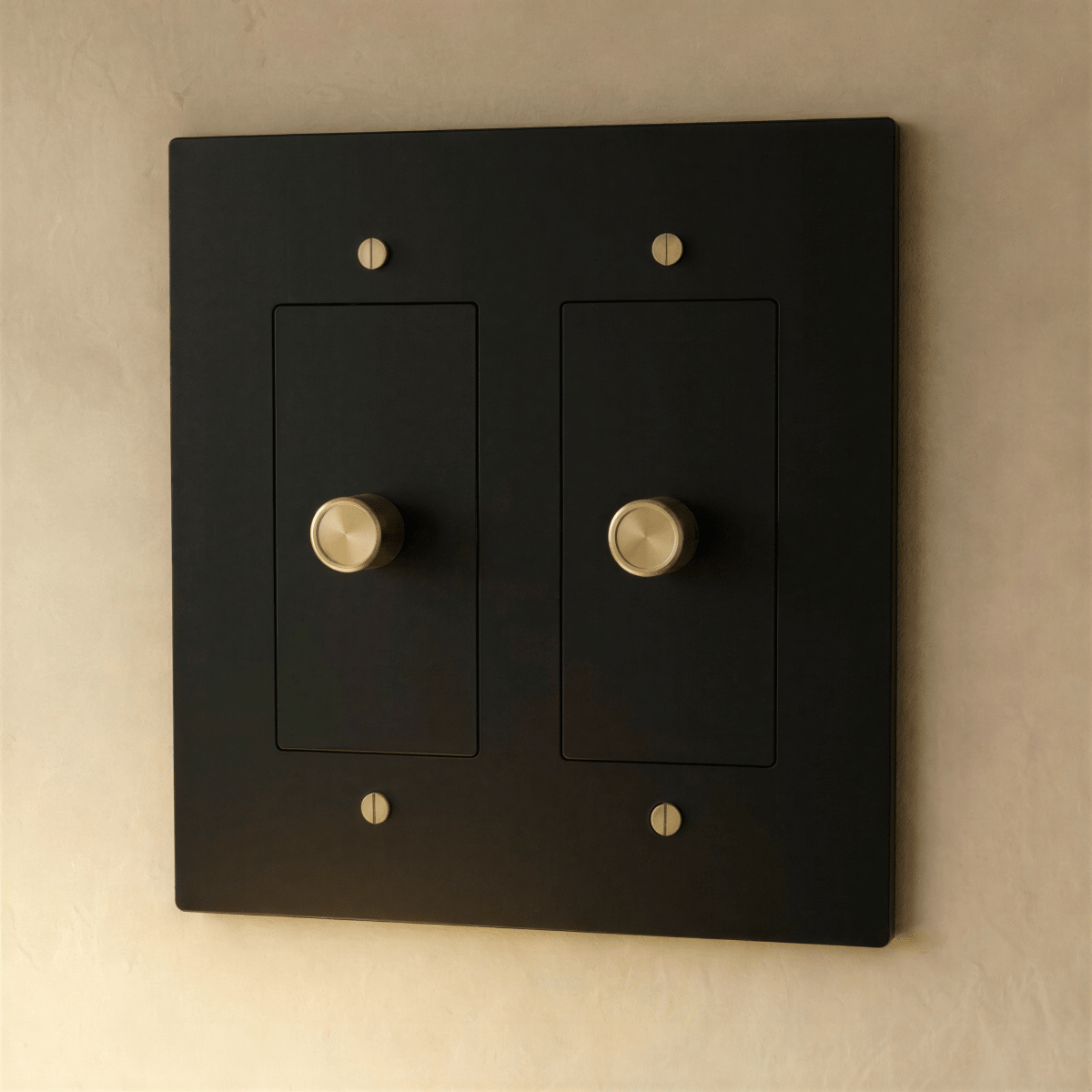

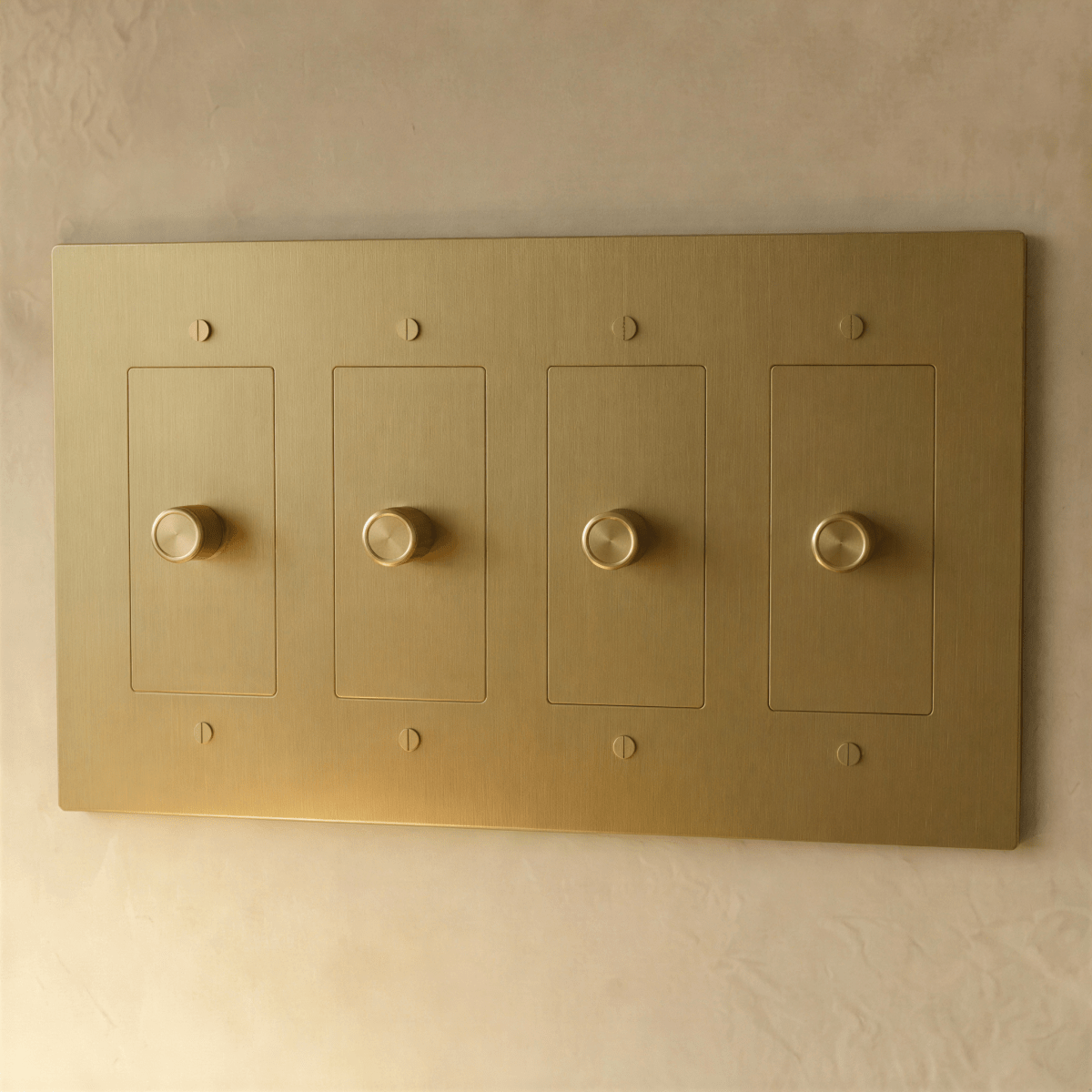

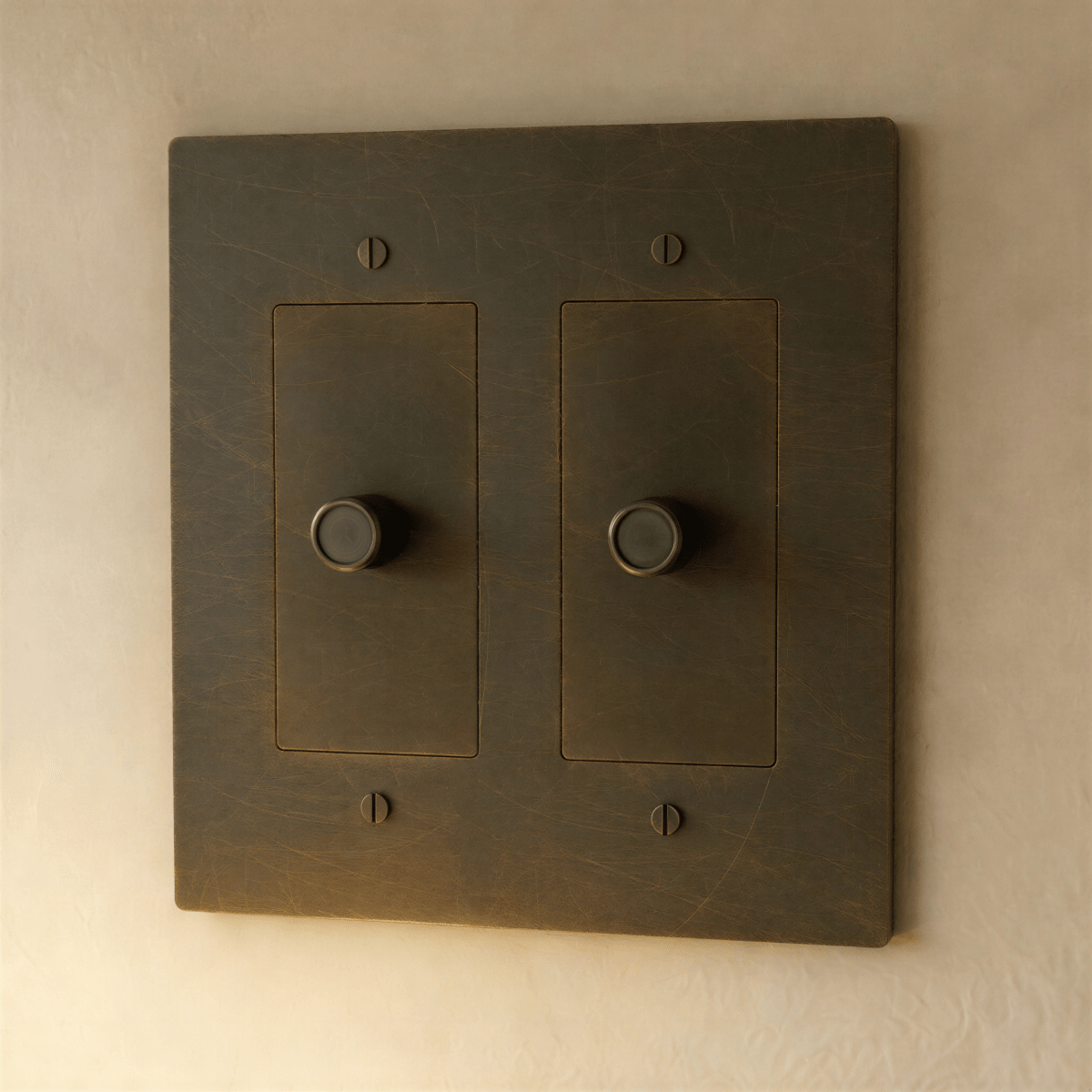

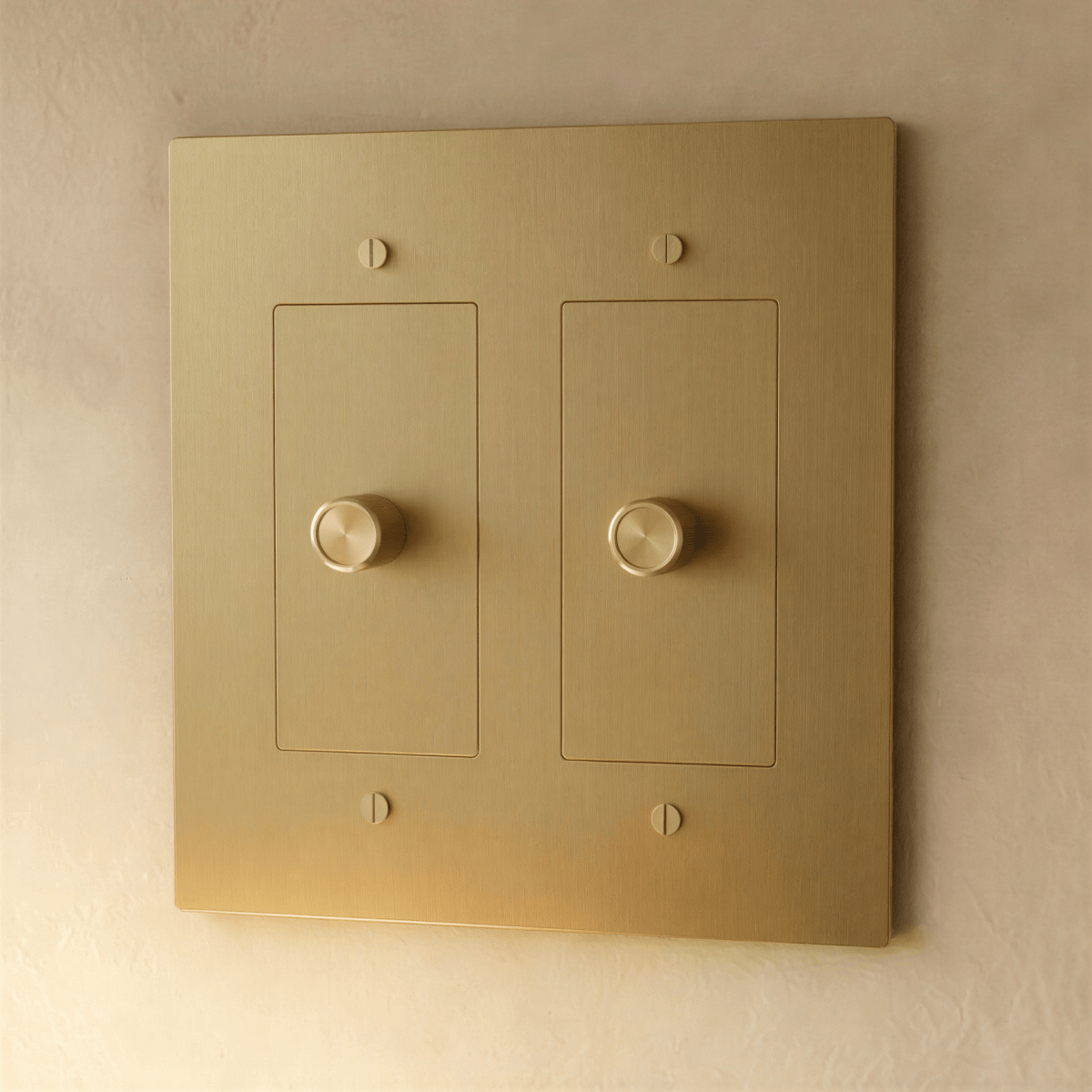

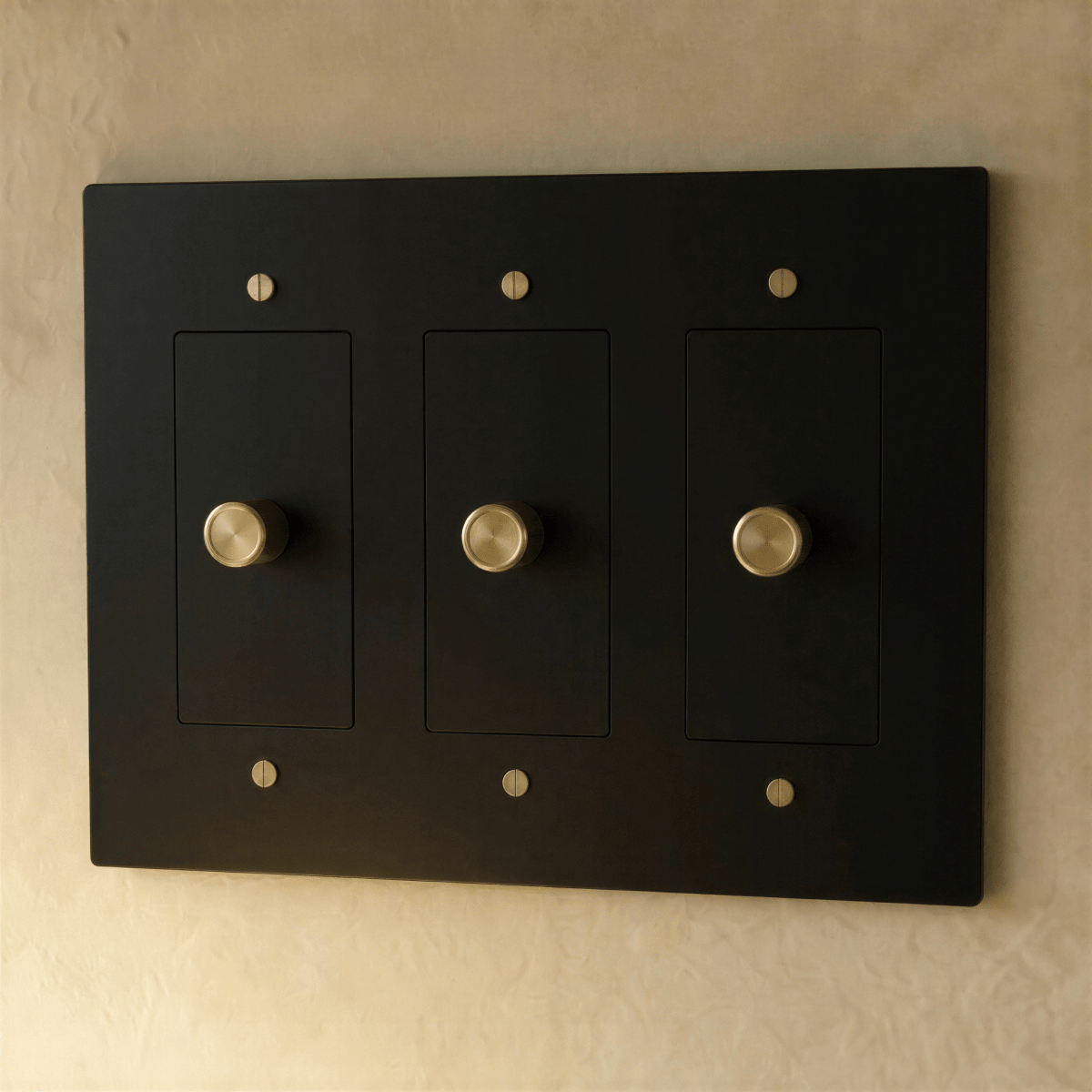

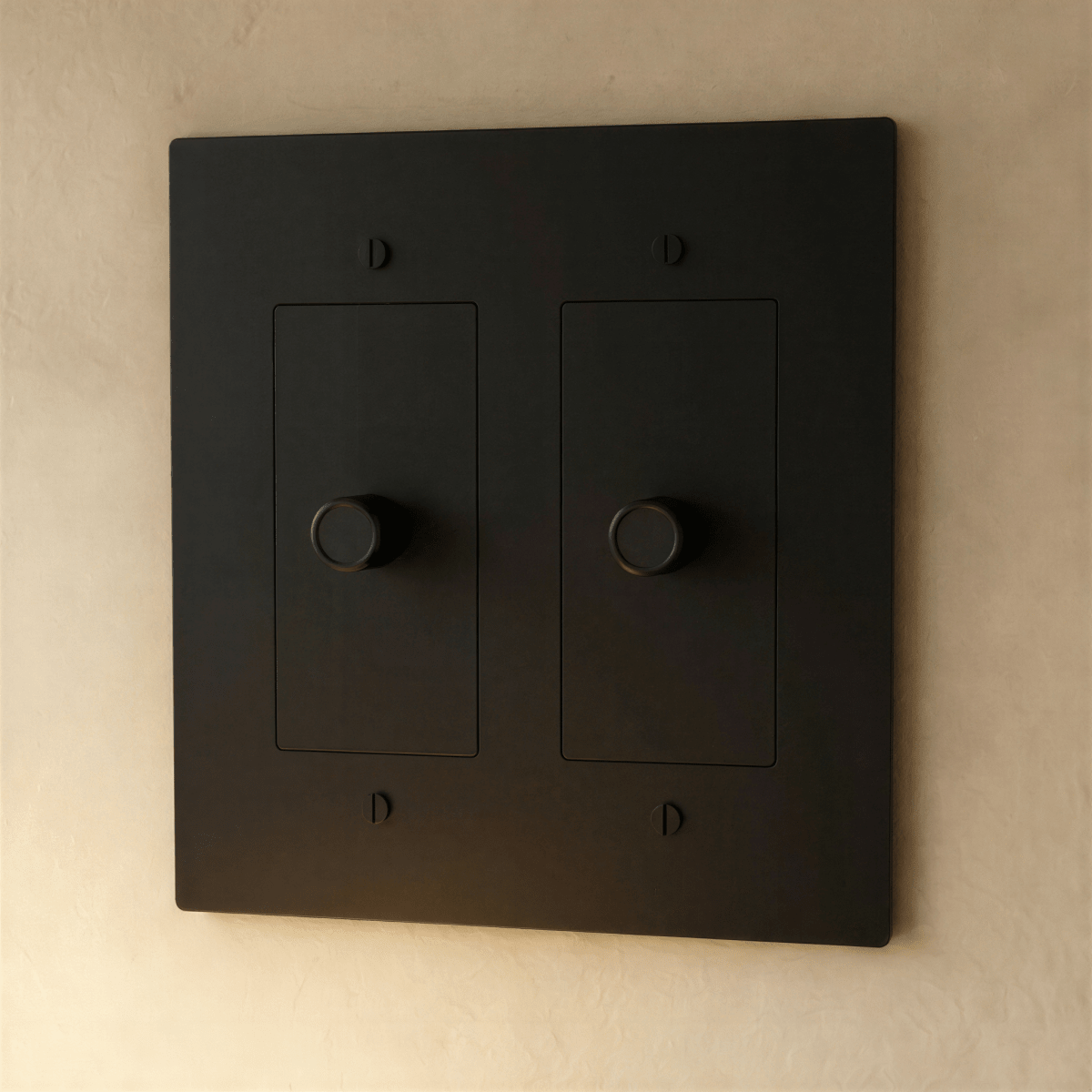

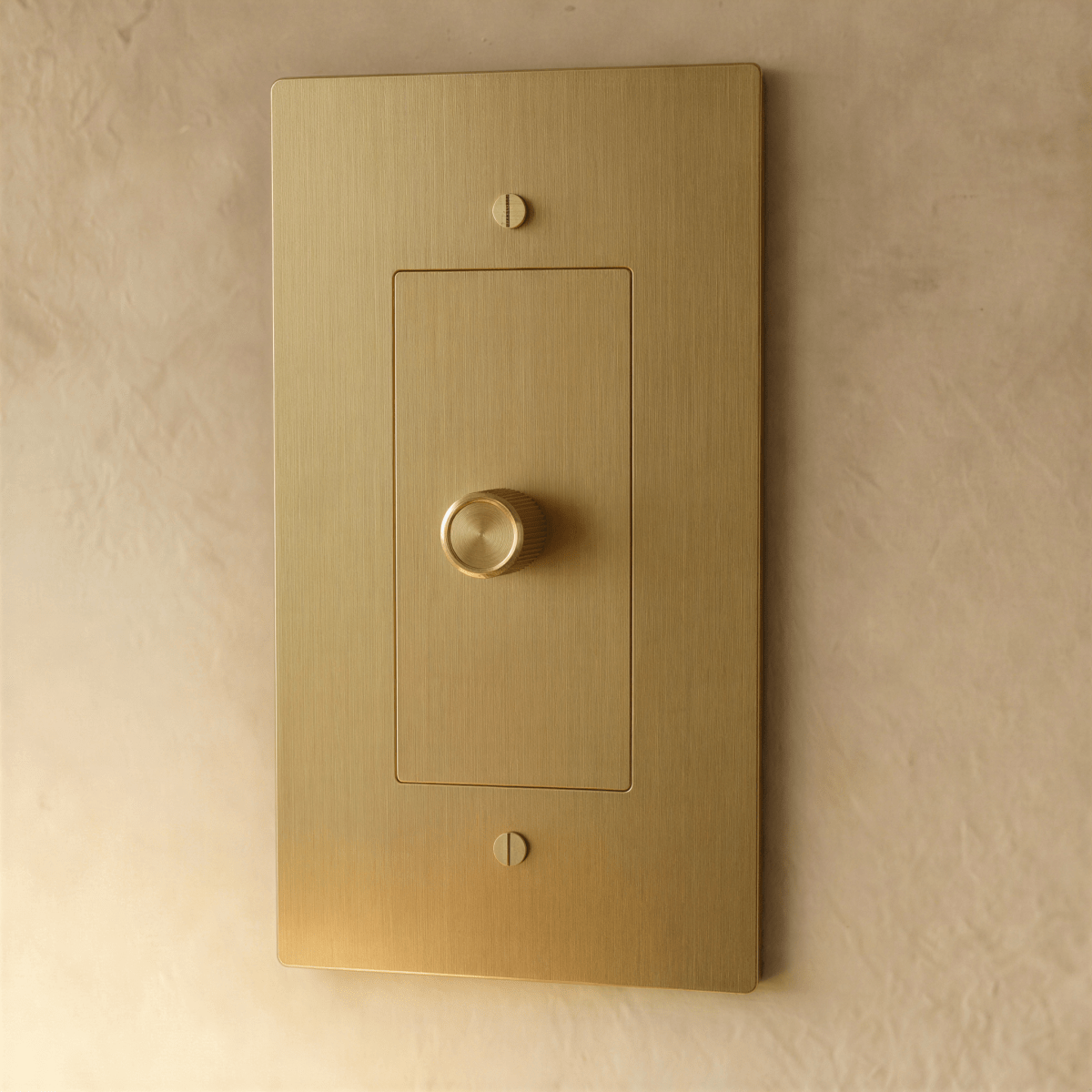

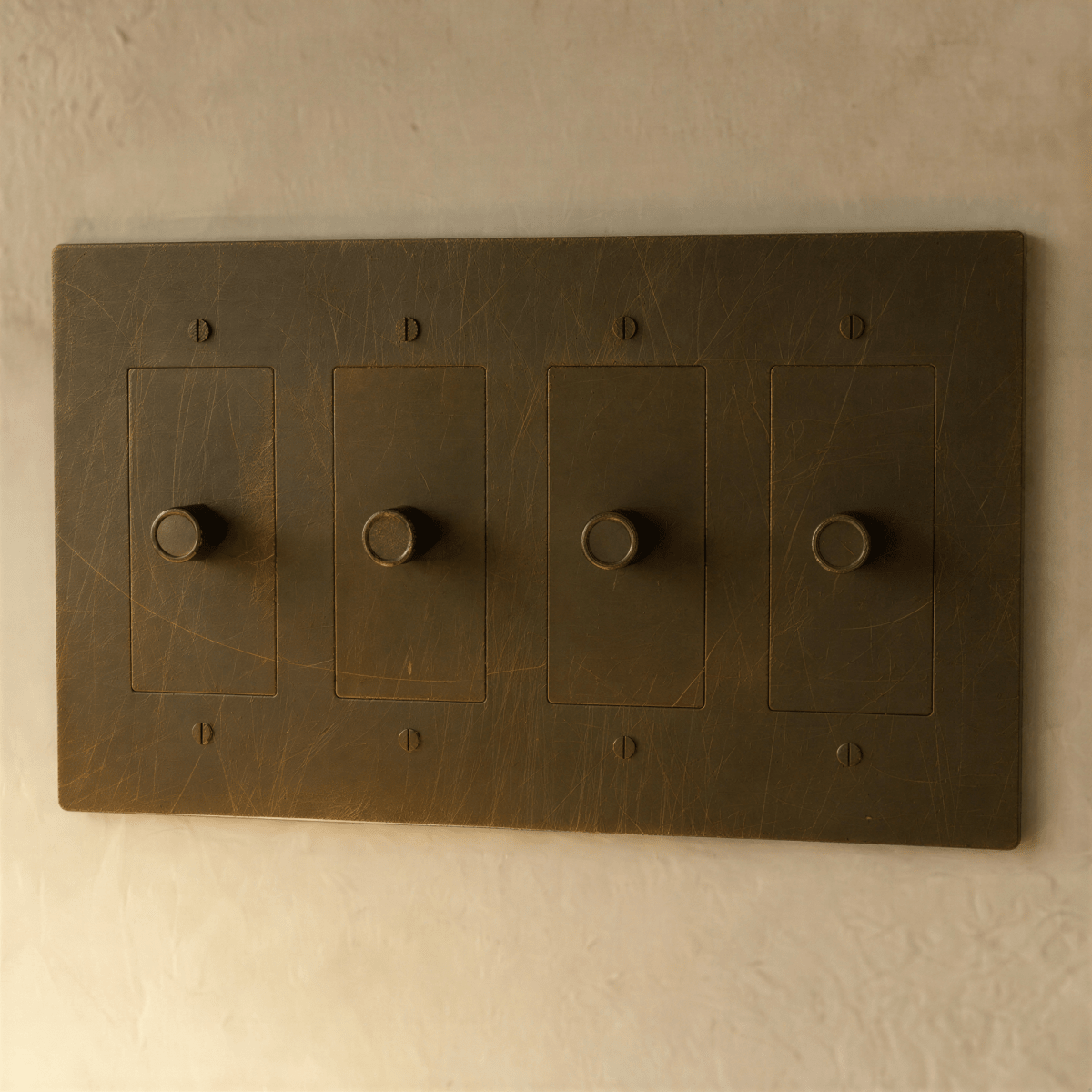

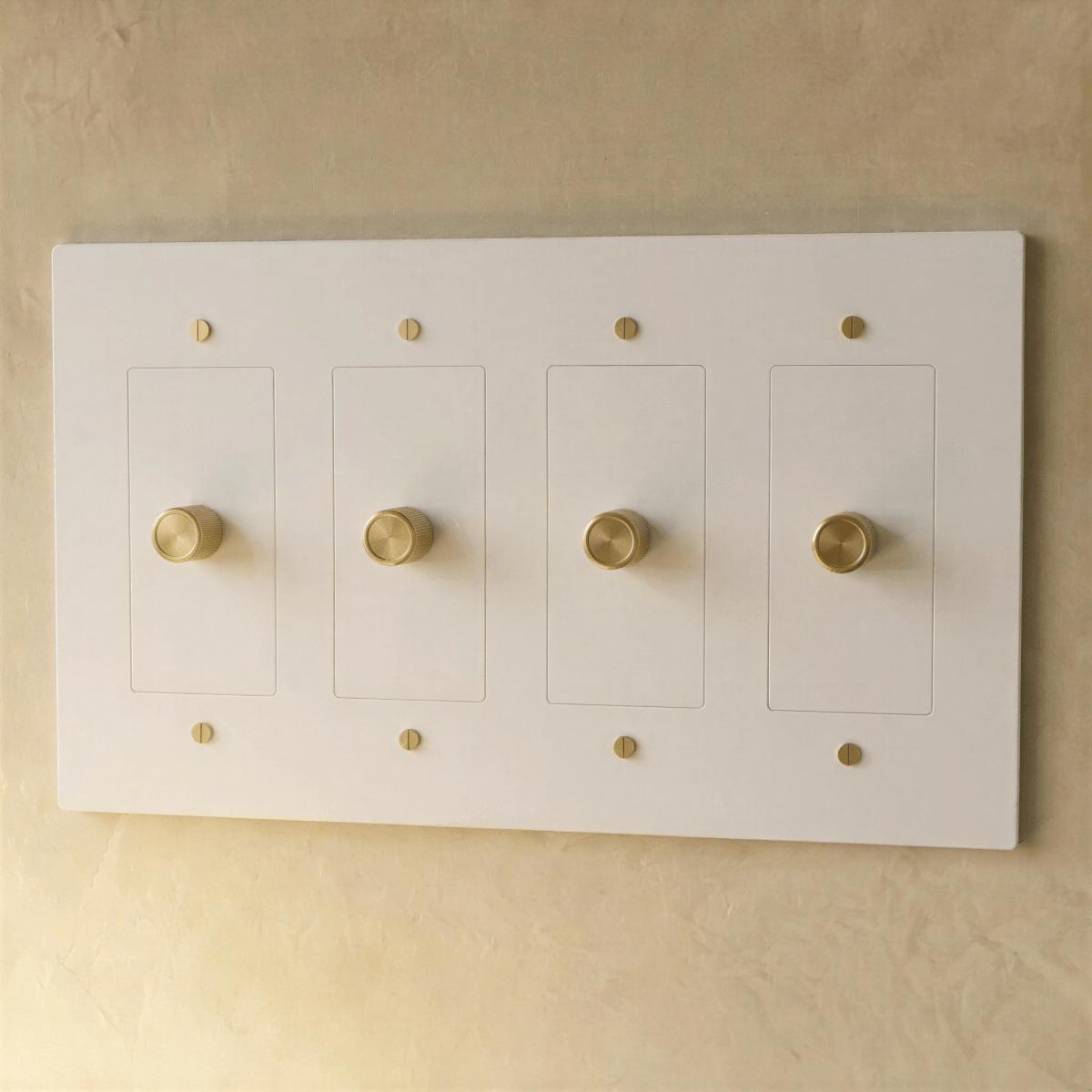

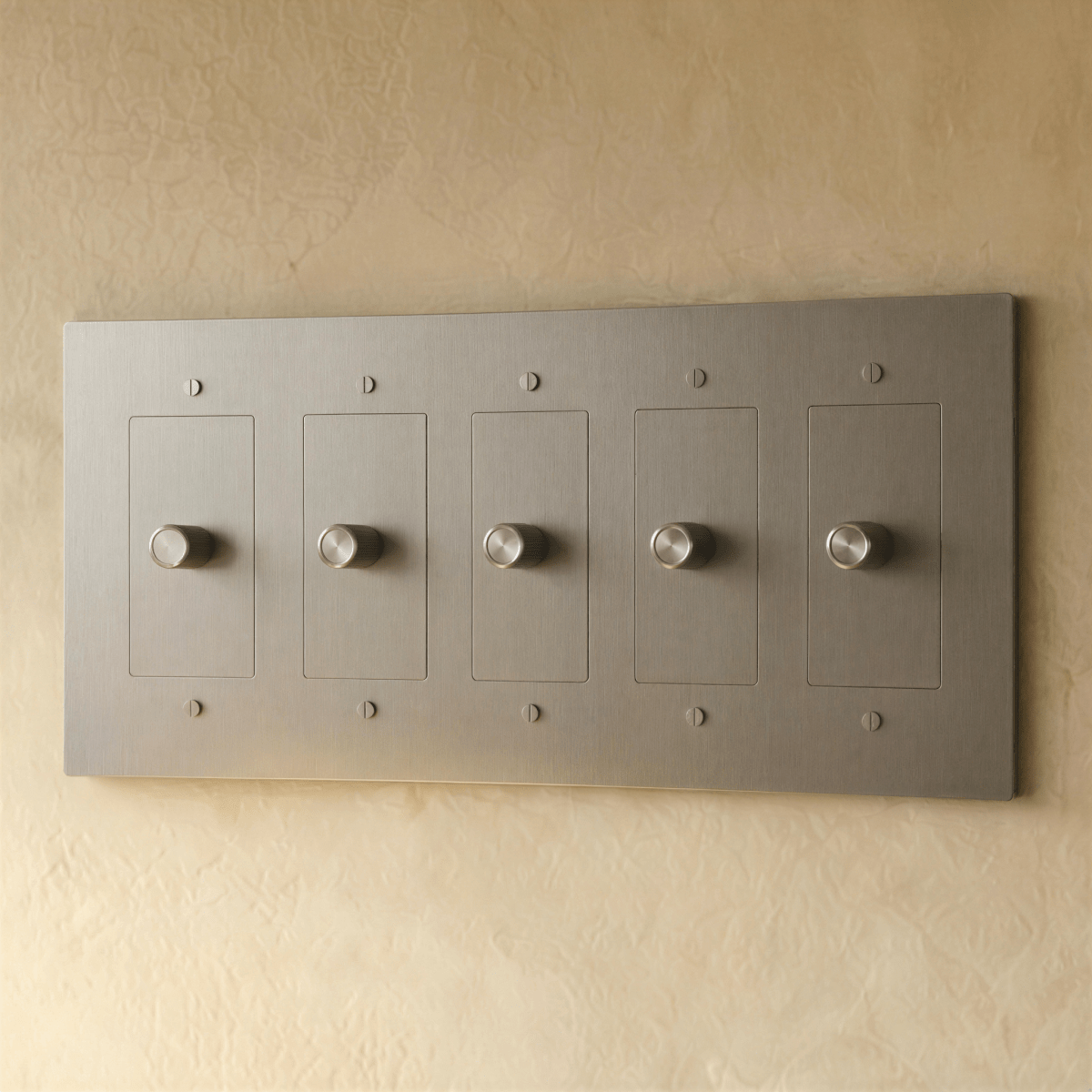

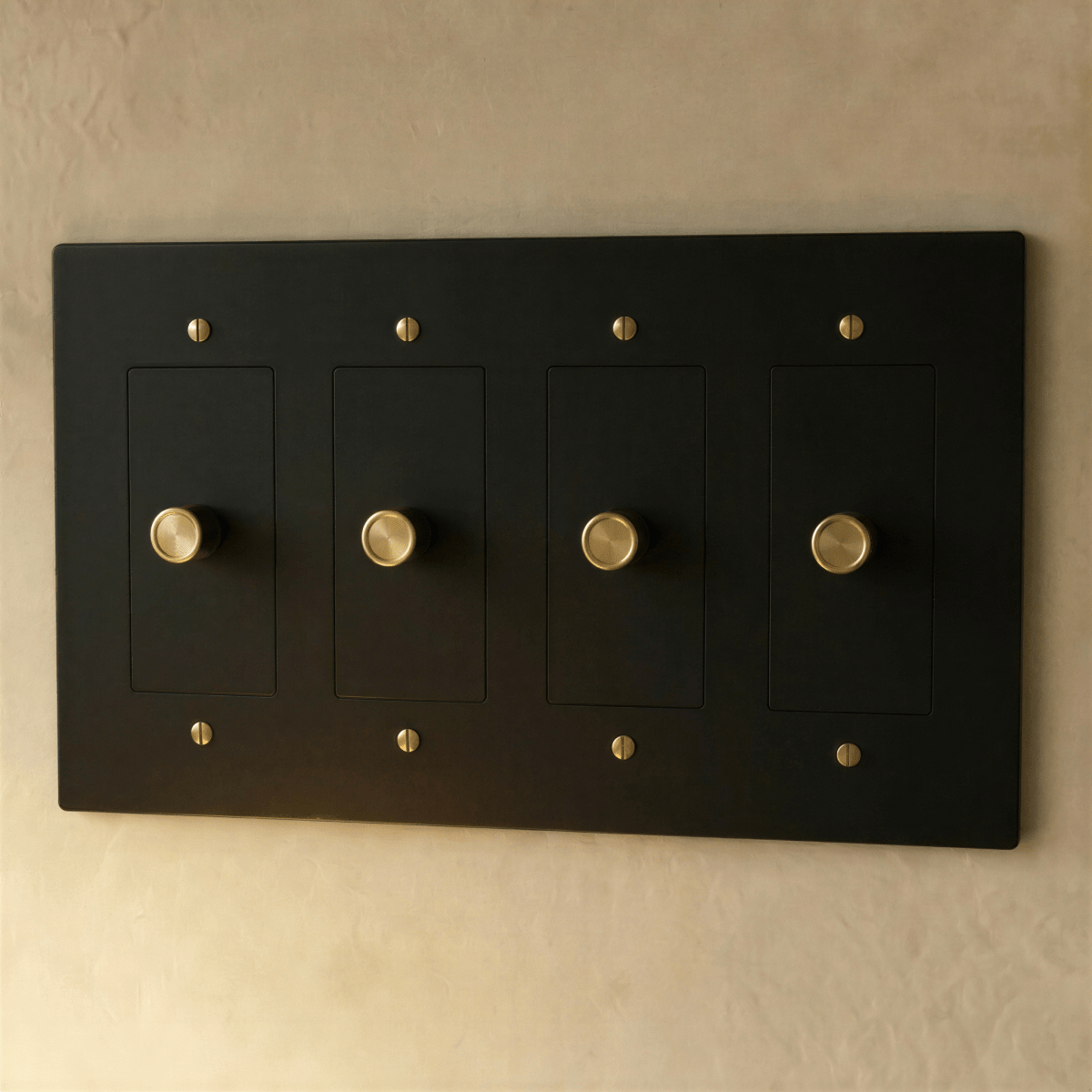

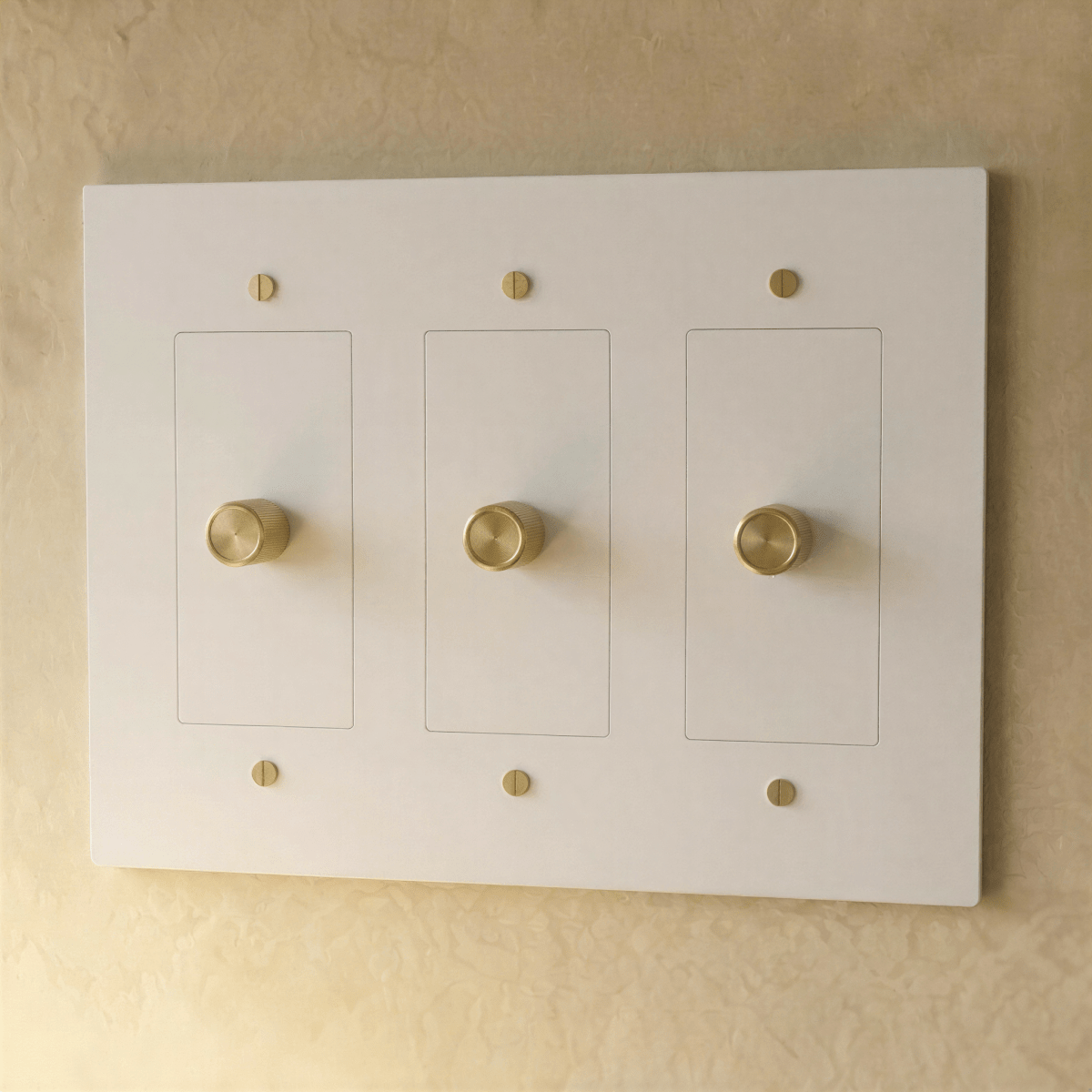

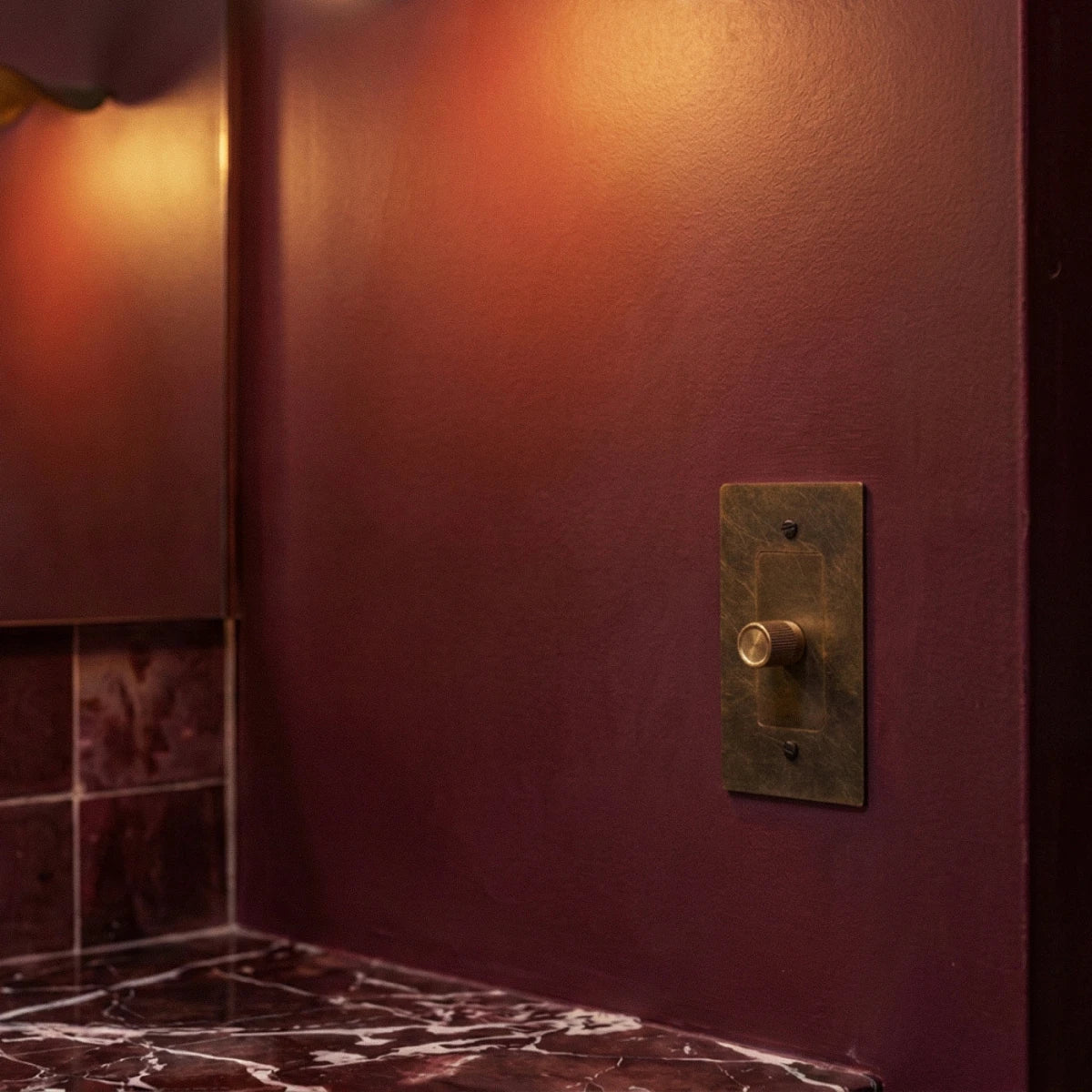

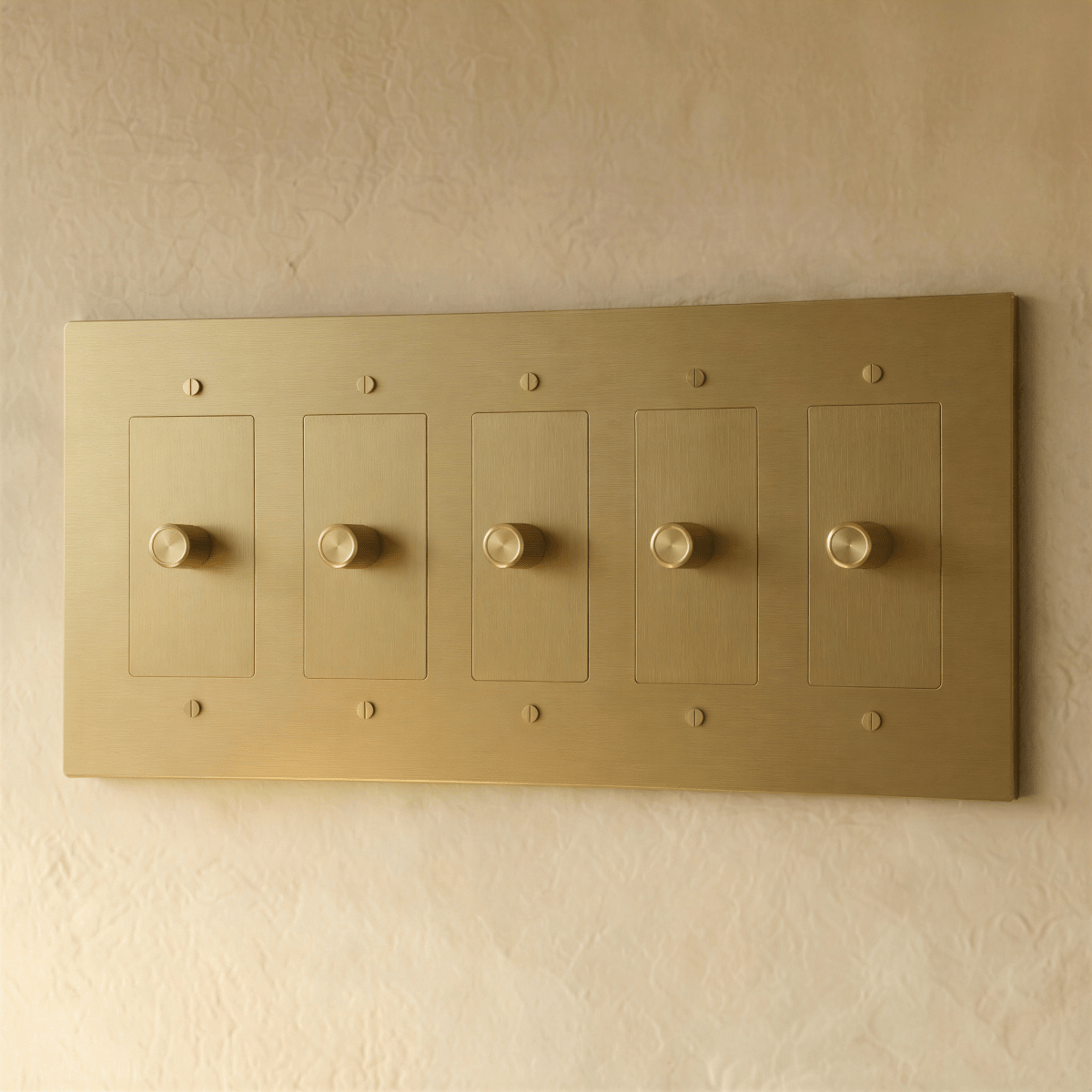

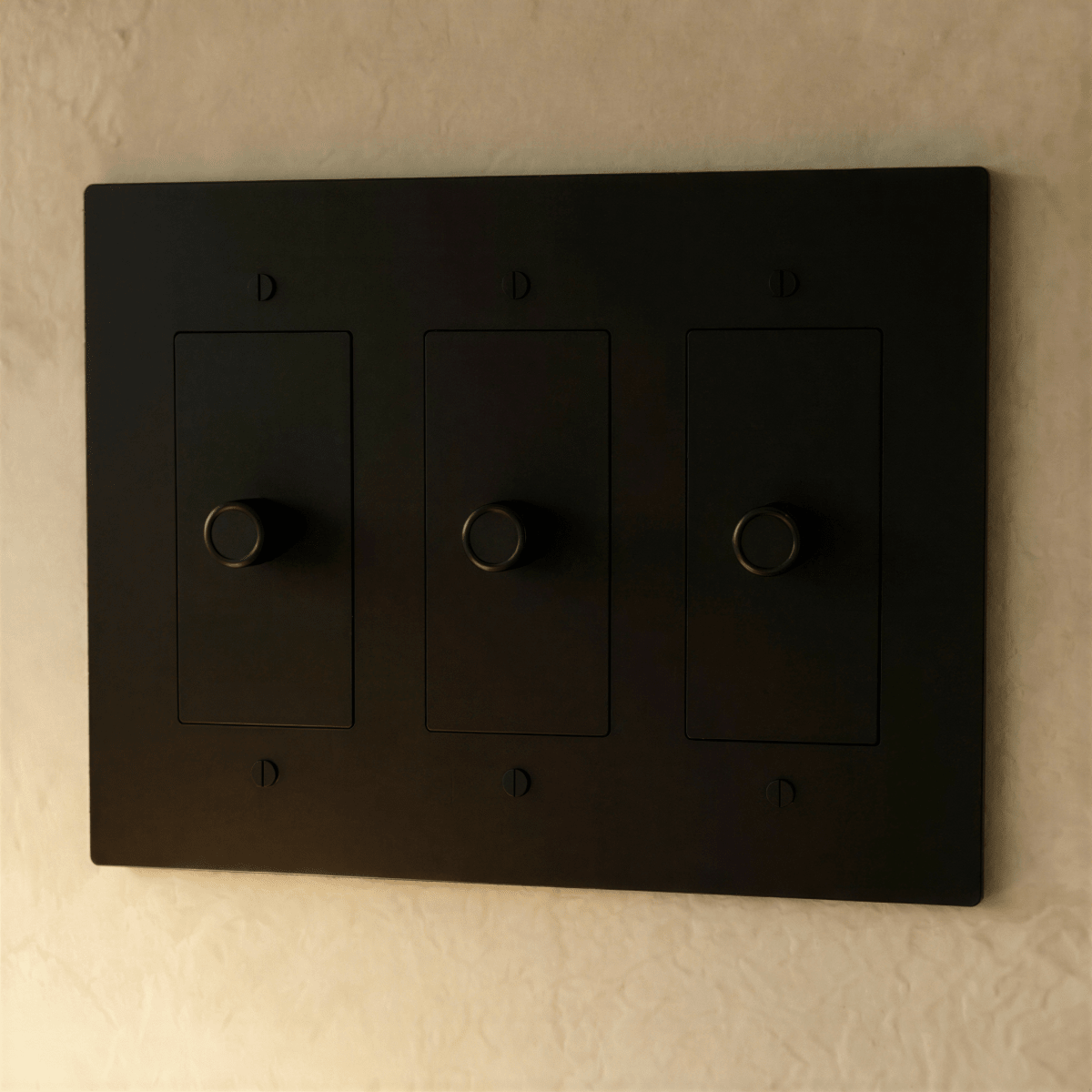

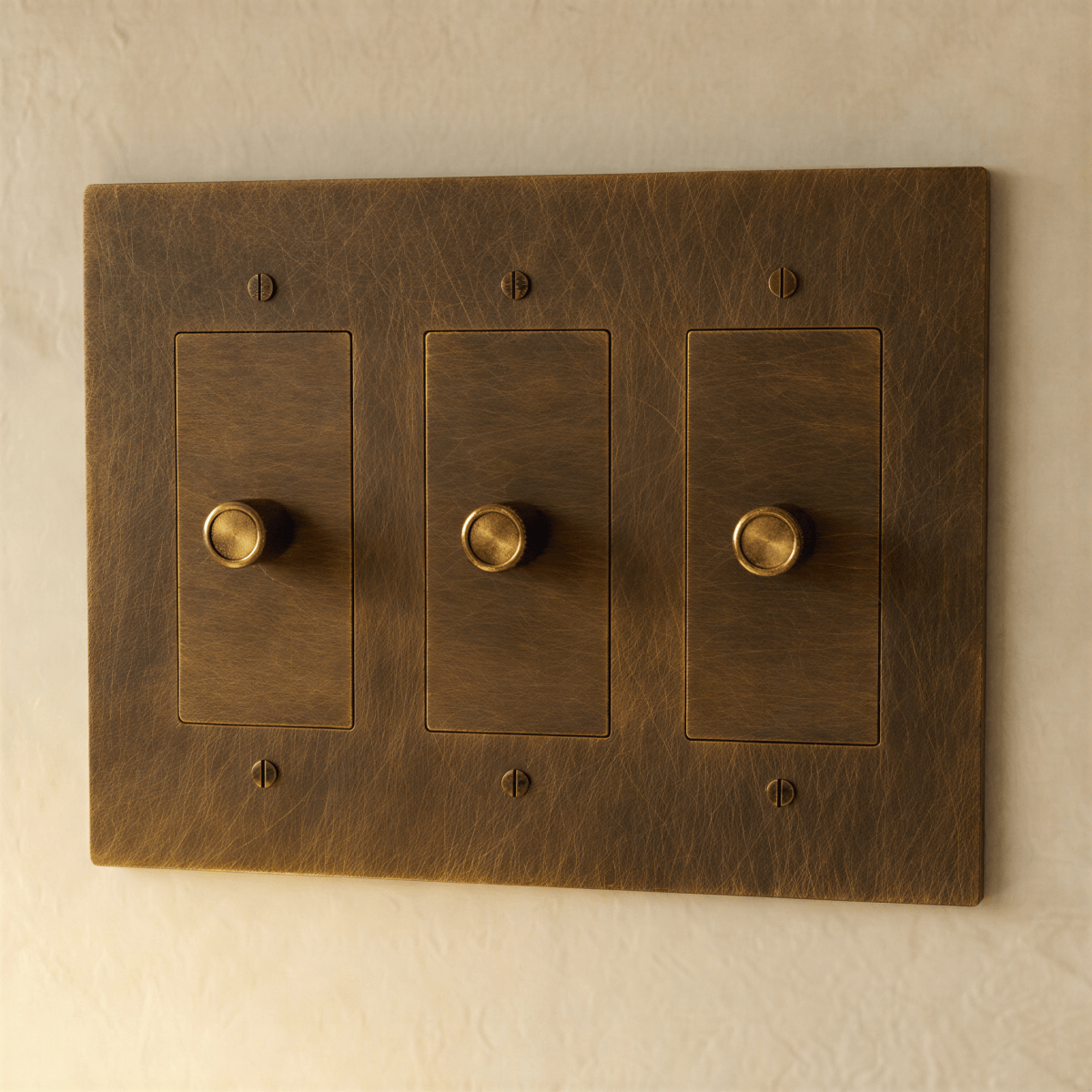

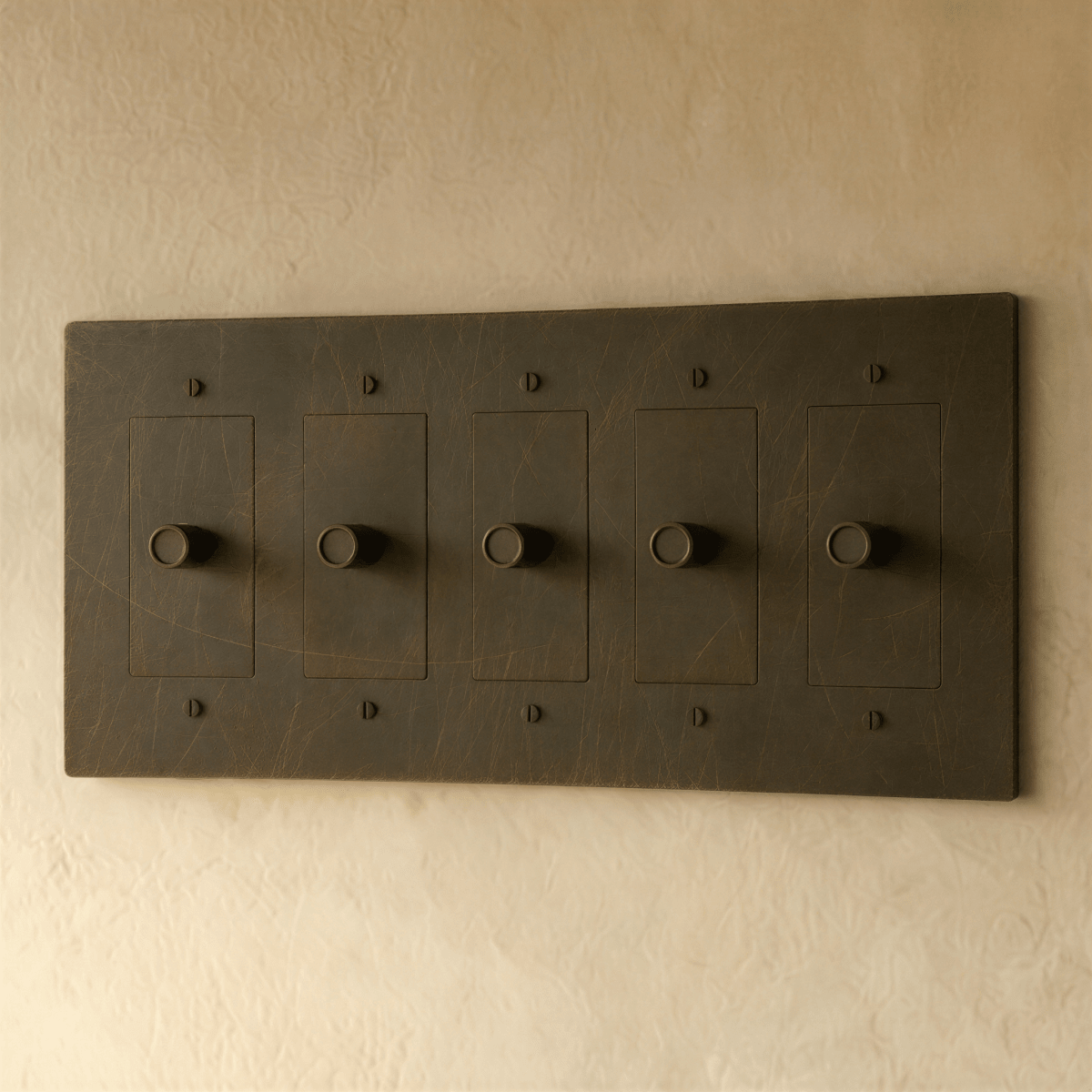

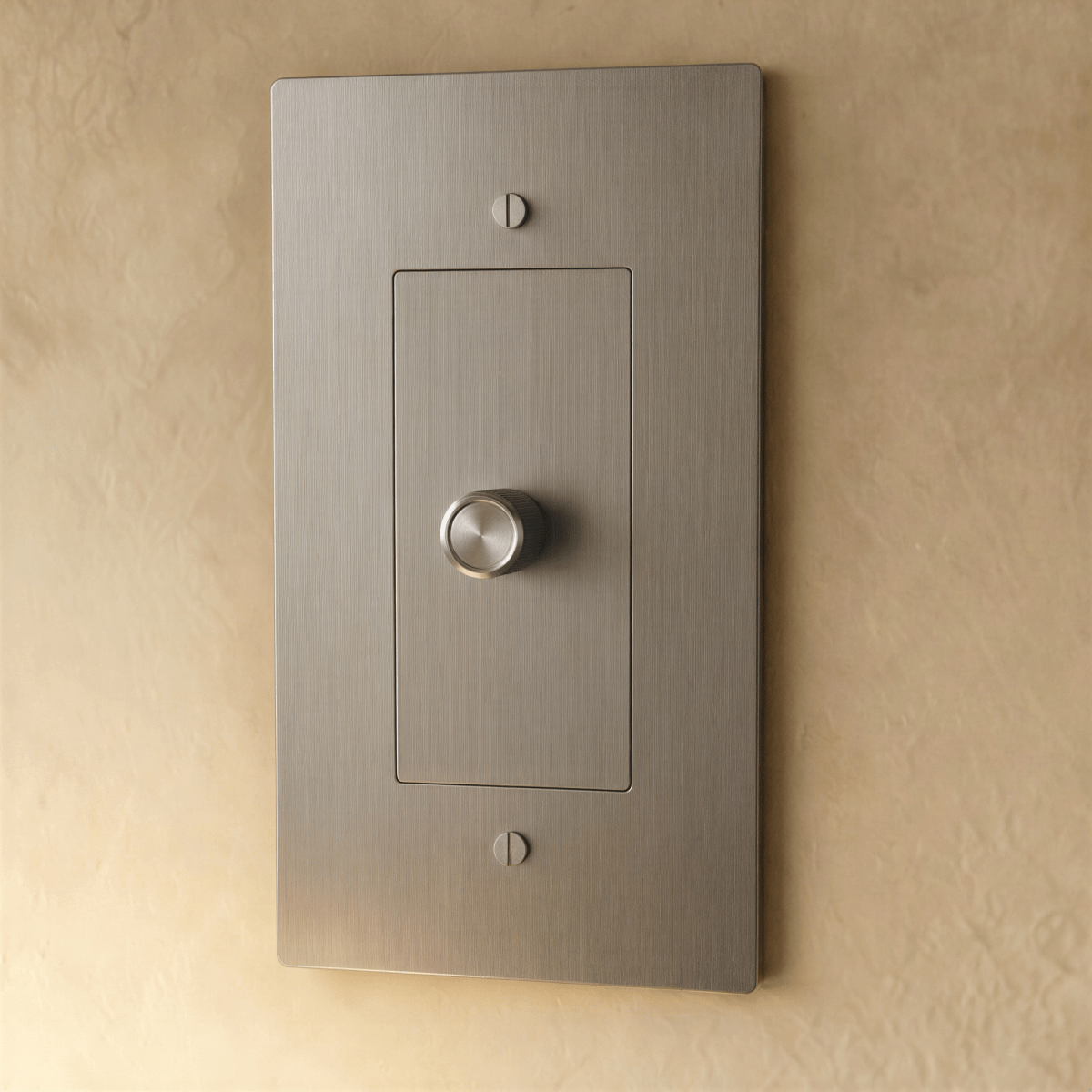

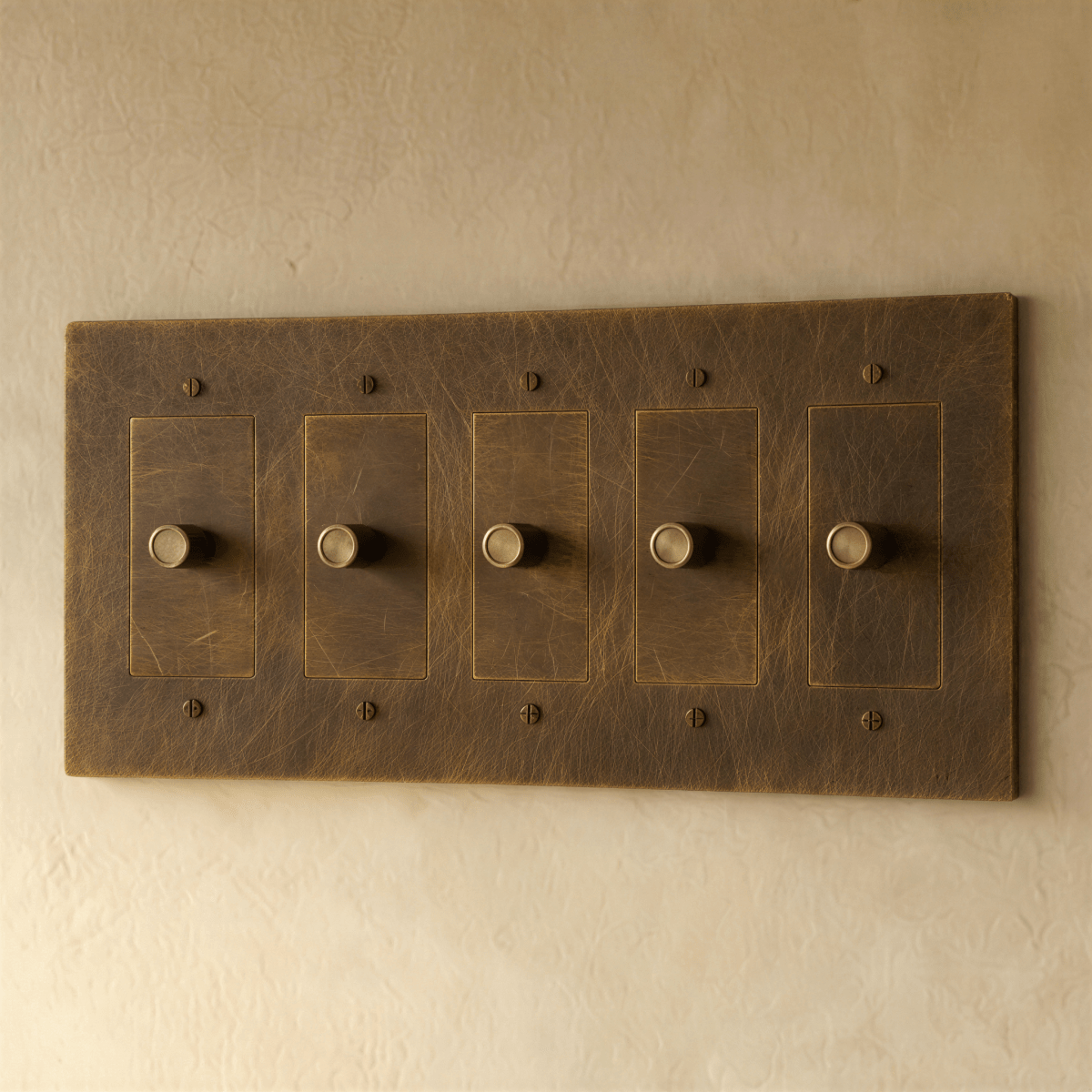

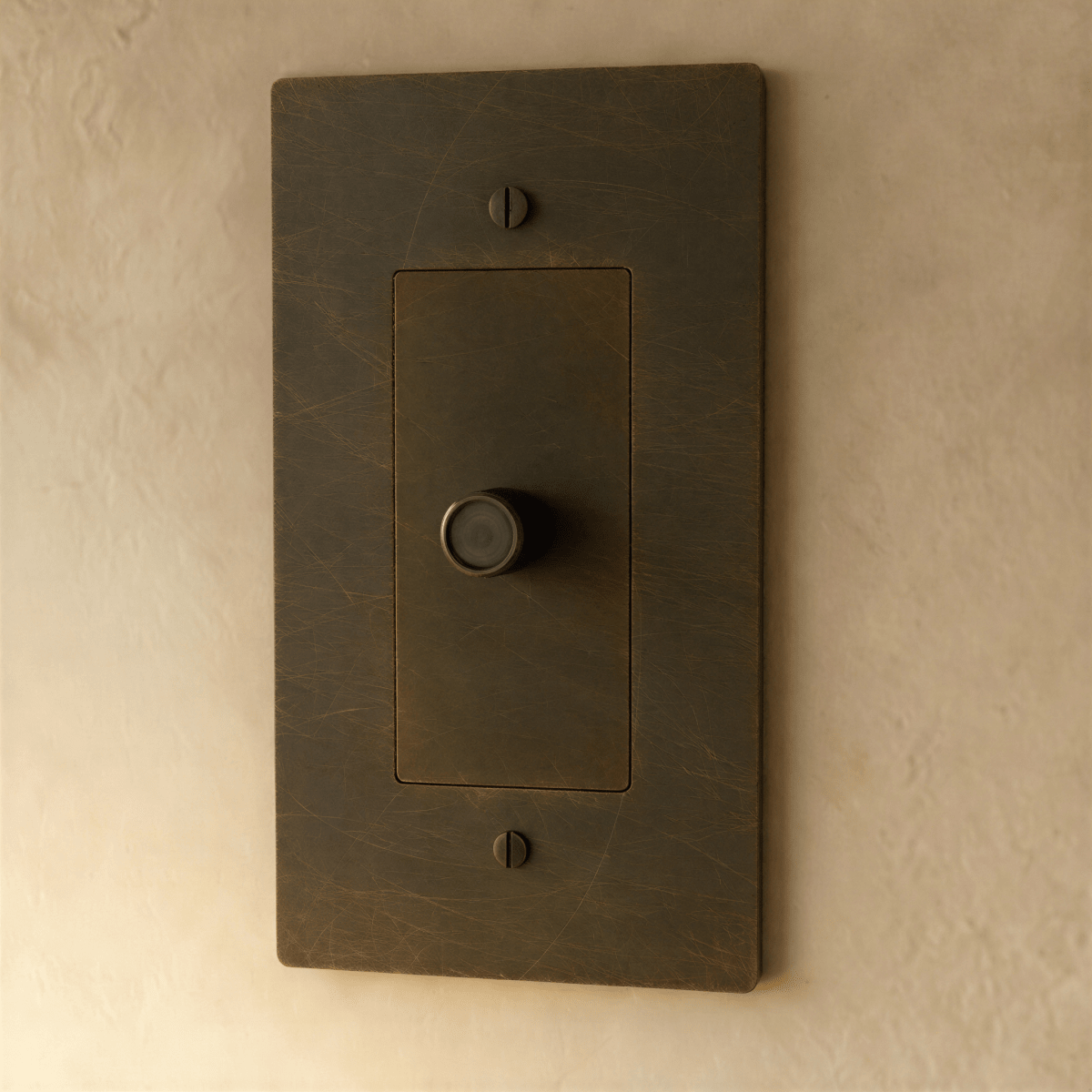

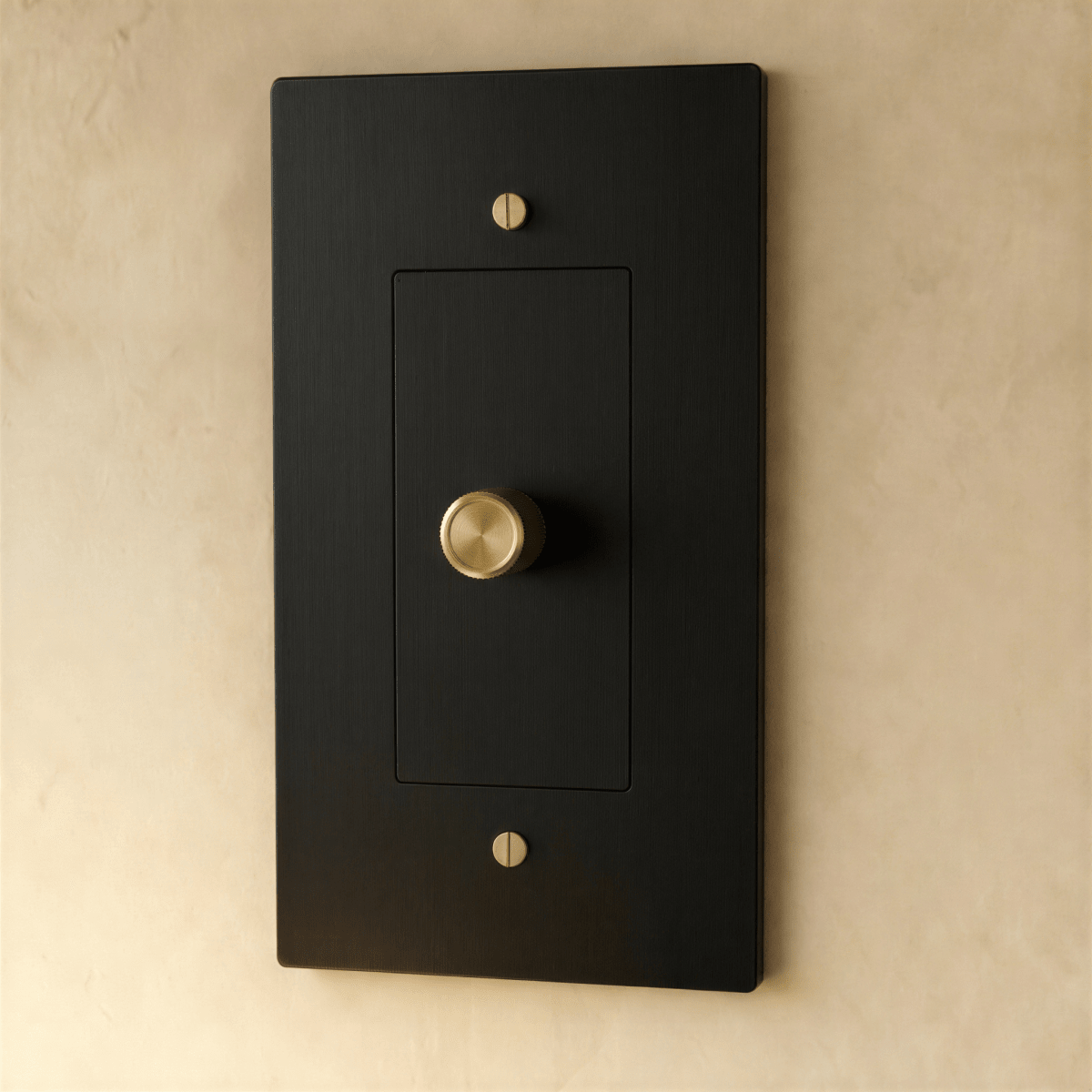

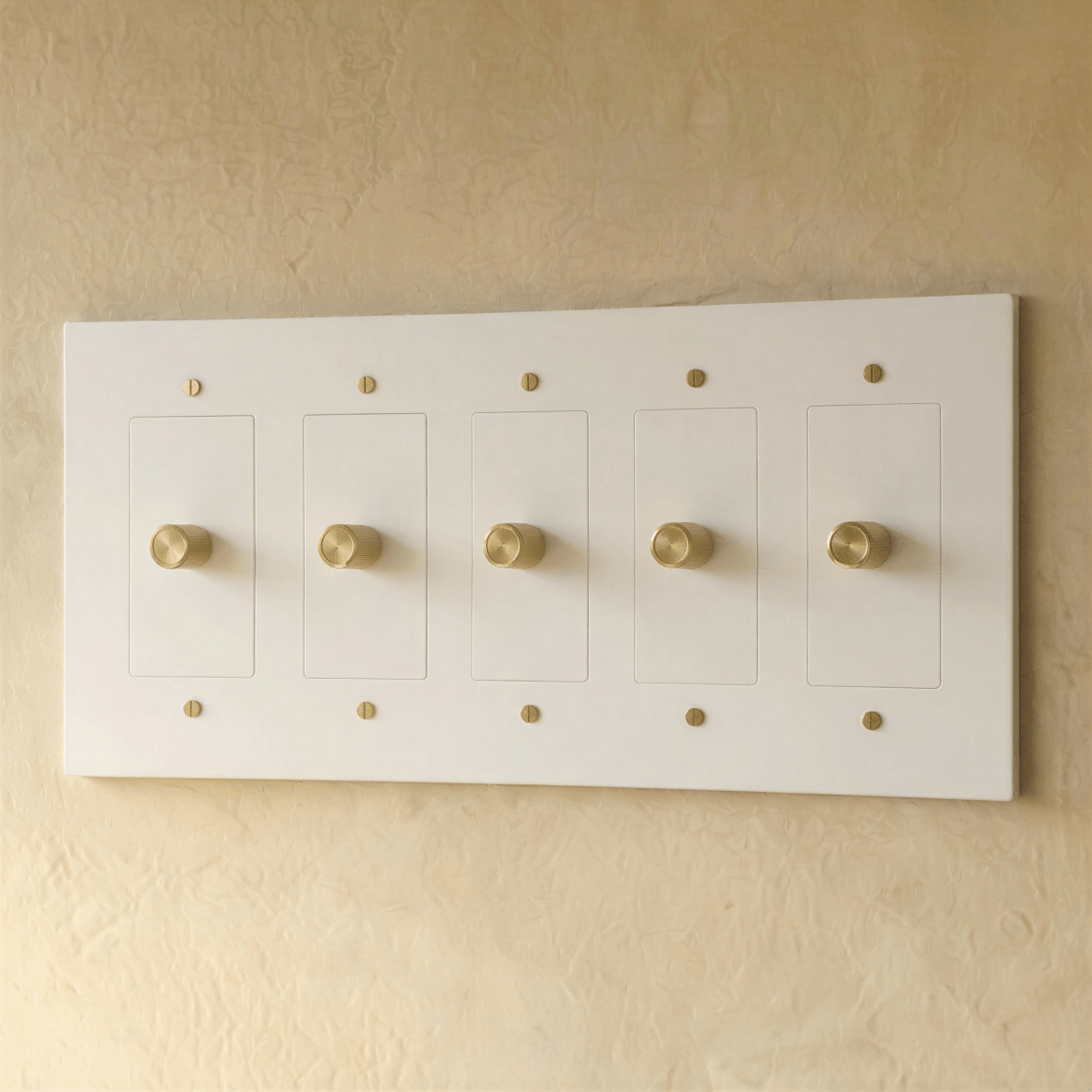

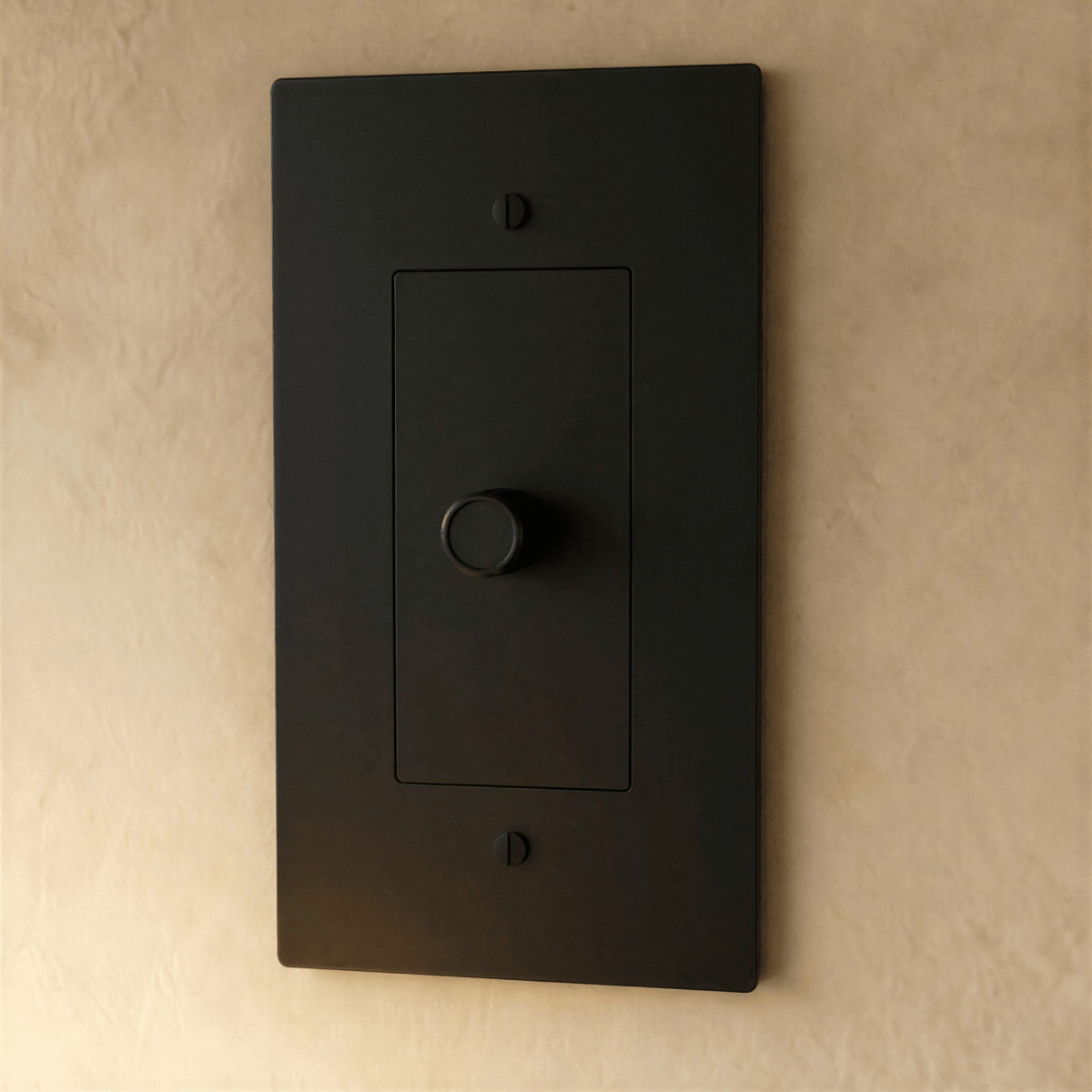

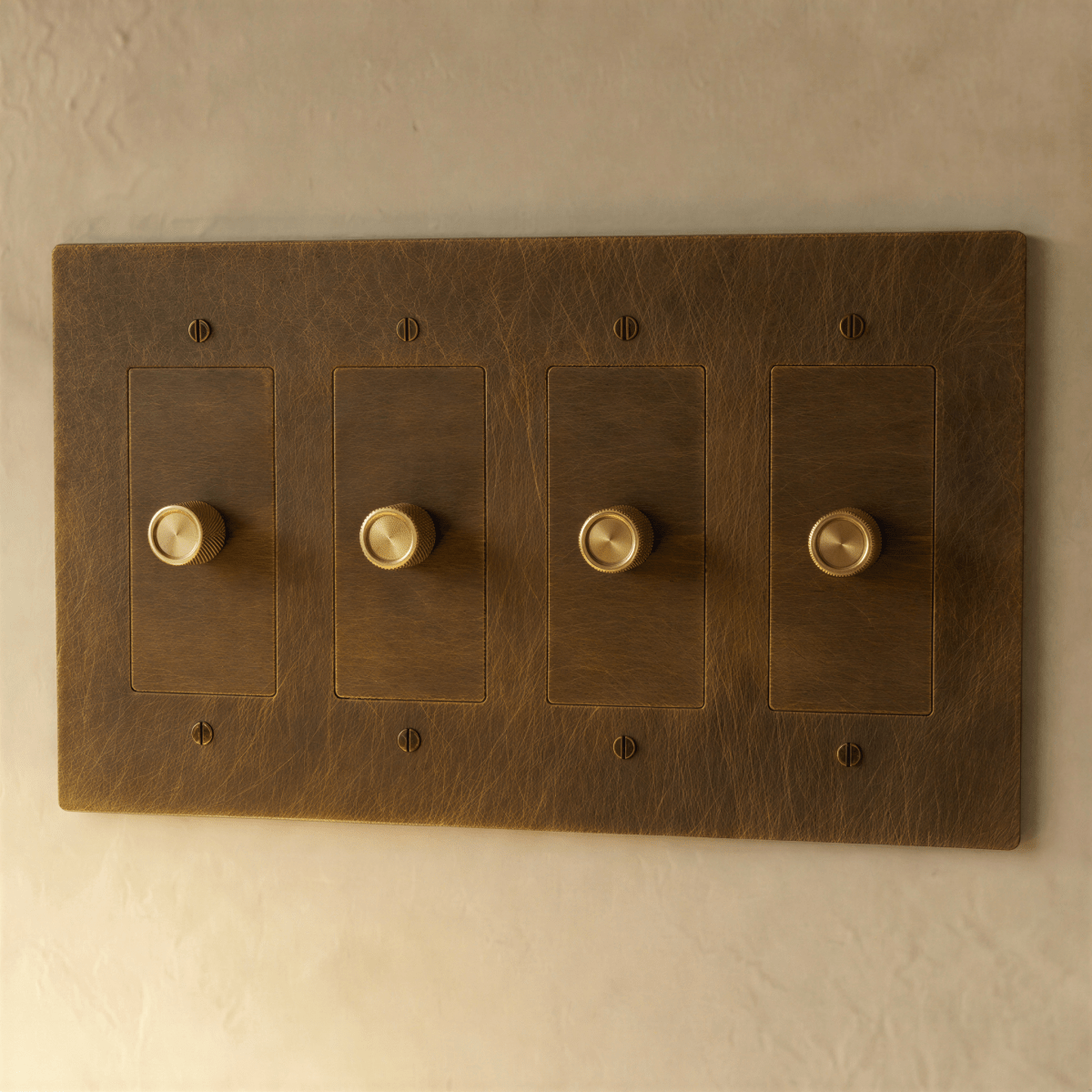

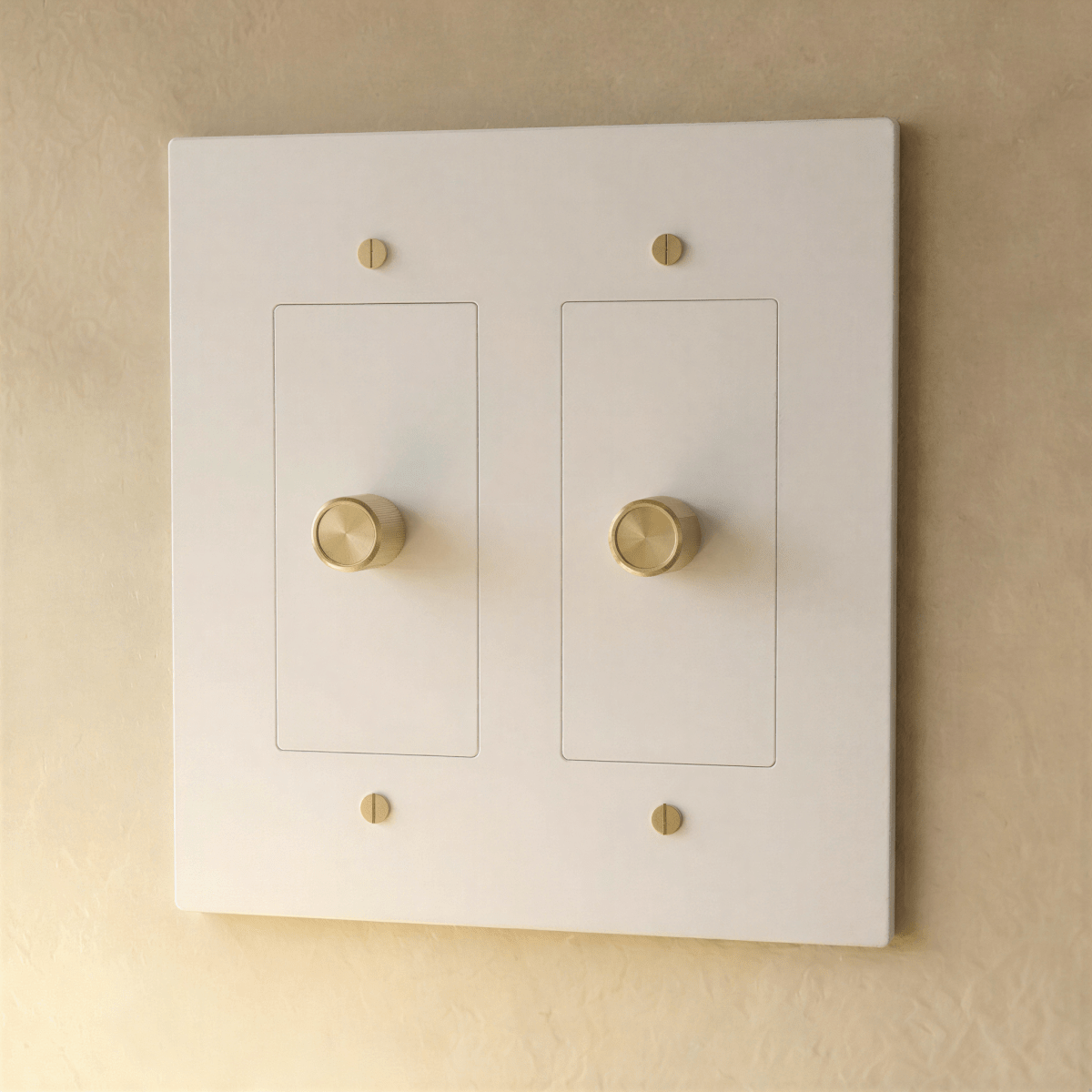

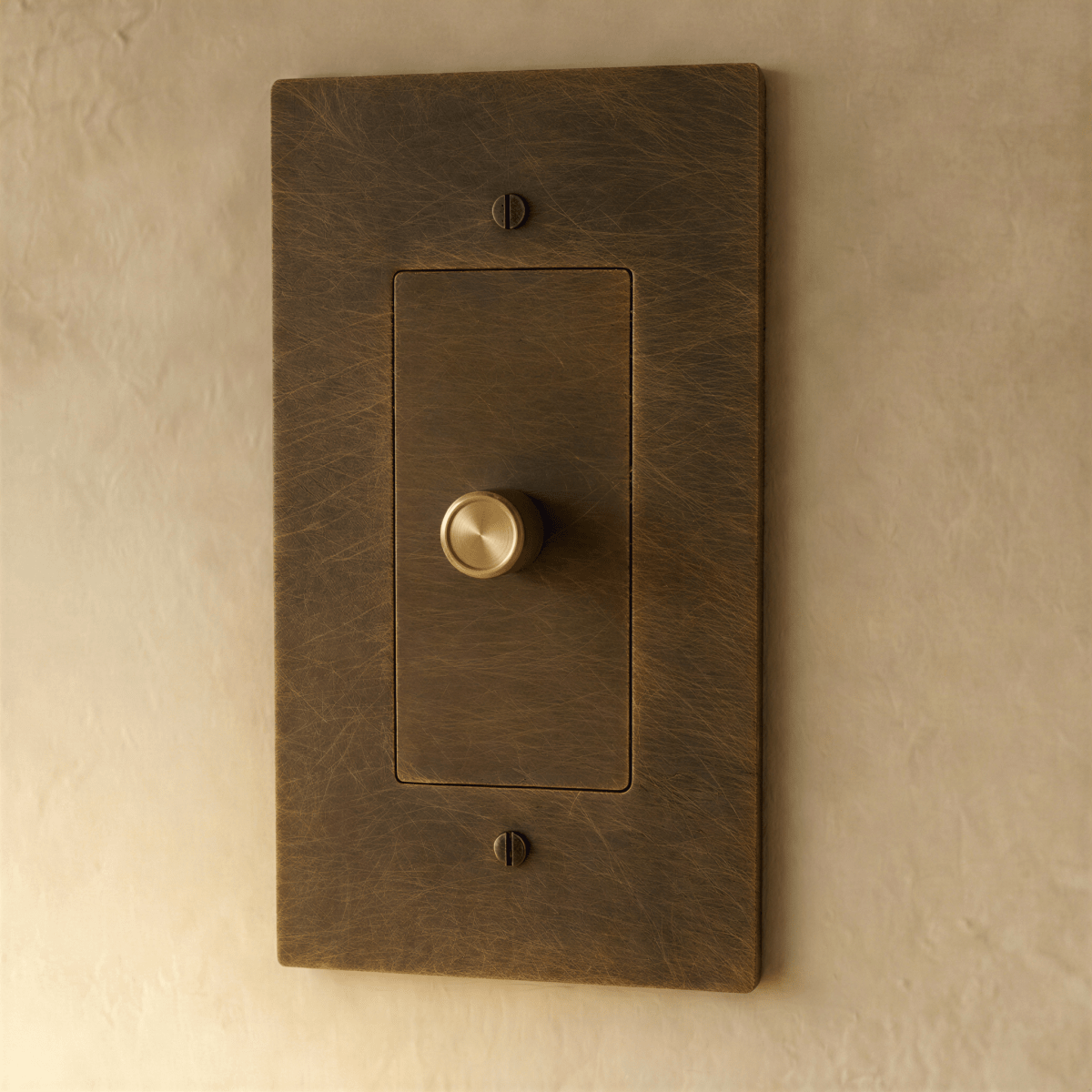

The Brass 3-Way Rotary Dimmer Switch (1 to 5 Gang)

Input Voltage: 120VAC
Max Current: 150W LED / 300W Incandescent Per Switch
Protocol: Triac / Leading Edge Dimmable
Fits Electrical Box (US): 1-Gang
Certifications: UL Listed (US & Canada)

Product Includes

Brass plate, diamond-cut dimmer knob, and mounting accessories.

Installation Steps

Step 1: Turn Off the Power
Before starting, make sure to turn off the power to the switch at your home’s circuit breaker or fuse box to ensure your safety.

Step 2: Remove the Old Cover Plate
Use your screwdriver to remove the screws holding the old cover plate in place. Gently take off the cover plate and set it aside.

Step 3: Take Out the Old Switch
Unscrew the screws securing the old switch to the electrical box and gently pull out the switch.

Step 4: Disconnect the Wires
Carefully disconnect the wires from the old switch.

• If the wires are wrapped around the screws, loosen the screws to free the wires.
• If the wires are inserted into holes on the back of the switch, you may need to use your wire stripper to cut and strip the wires.

Step 5: Connect the Wires to the New Switch
Attach the wires to the new dimmer switch.

• If there are screws, wrap the wires around them and tighten the screws.
• If there are holes, insert the stripped ends of the wires into the holes.

Step 6: Secure the New Switch
Carefully tuck the wires back into the electrical box and secure the new switch to the box with the provided screws.

Step 7: Attach the New Cover Plate
Place the new cover plate over the switch and secure it with the screws.

Step 8: Turn the Power Back On
Once everything is securely in place, turn the power back on at the circuit breaker or fuse box.

Step 9: Test Your New Switch
Rotate the dimmer knob to make sure it’s working properly. If everything is installed correctly, your lights should brighten and dim smoothly.

If you have any doubts or if anything seems amiss, don’t hesitate to call a professional electrician. Safety comes first!
