Winry Downlight

Product Details

Everything you need to know

Description

SAY GOODBYE TO OVERHEATING AND HELLO TO RELIABLE, LONG-LASTING LIGHTING

Illuminate your space with the Winry Downlight, a beacon of efficiency and style. Crafted from durable high-quality aluminum, it guarantees long-lasting performance, rapid heat dissipation, and adjustable beam angles for tailored lighting. Upgrade to Winry Downlight and discover the perfect fusion of elegance and performance in one sleek package.

FEATURES:

Robust high-quality aluminum body ensures long-lasting performance
Adjustable beam angles (15°, 45°, and 60°) for customized lighting
Efficient and rapid heat dissipation technology
Instant start technology with no flickering ensures instant illumination
Shockproof solid-state design guarantees lasting durability
Exceptional 90% energy savings for eco-friendly illumination
Low maintenance and environmentally conscious solution
Remarkable longevity, exceeding 80,000 hours
Versatile AC90-260V input compatibility for diverse use

HOW TO OPERATE:

Turn off the power supply at the main circuit breaker
Mark and cut holes in the ceiling for the downlights
Connect the provided driver to the power source and then wire the downlights according to the given instructions
Adjust the downlights as necessary to achieve the desired lighting arrangement

DIMENSIONS:

Small - 3.7" x 2.5" / 9.5cm x 6.5cm
Medium - 4.5" x 3.3" / 11.5cm x 8.5cm
Large - 4.5" x 3.9" / 11.5cm x 10cm

VERSATILE LIGHTING FOR VARIOUS APPLICATIONS

The Winry with adjustable beam angles offers adaptability, making it suitable for a wide range of lighting needs, ensuring the perfect ambiance for any space.

EXCEPTIONAL LONGEVITY AND DURABILITY

Constructed to last, this downlight is built to withstand the test of time, ensuring dependable and lasting performance.

STYLISH VARIETY

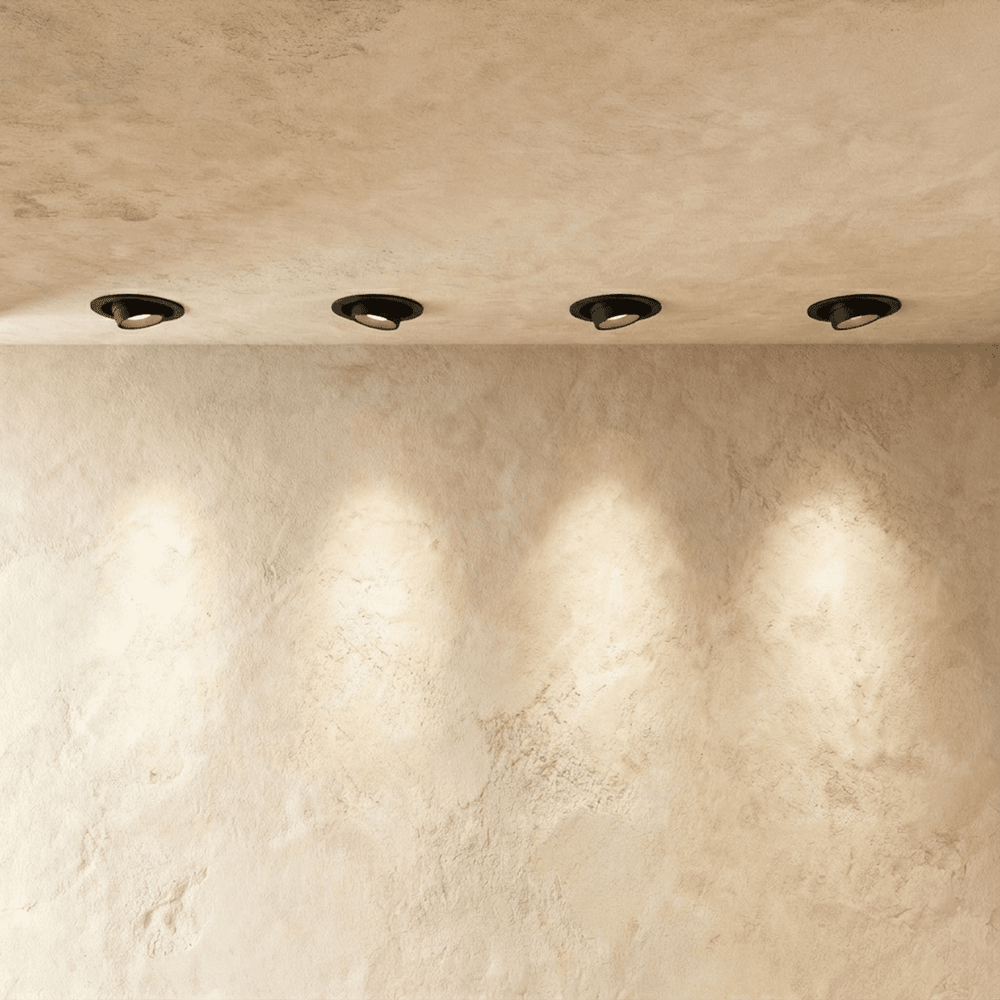

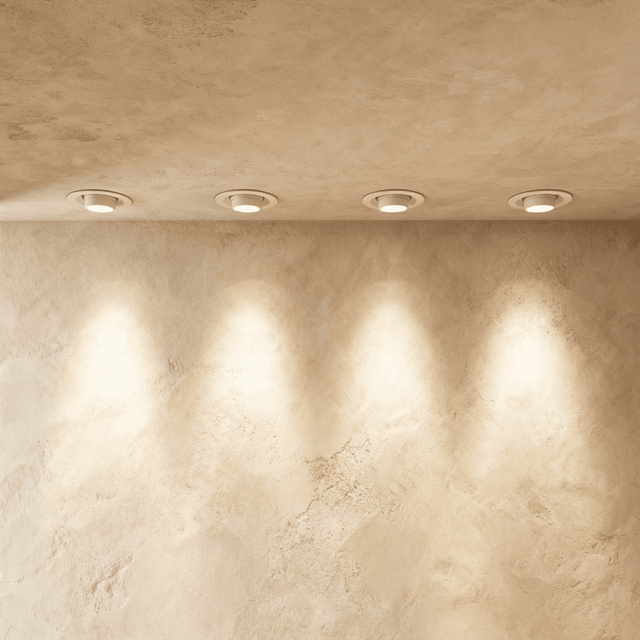

Choose the perfect color to match your decor, as the Winry Downlight is available in two attractive and versatile color choices.

Product Specifications

Product Dimensions:
Small: 3.7"(9.5cm) x 2.5"(6.5cm)
Medium: 4.5"(11.5cm) x 3.3"(8.5cm)
Large: 4.5"(11.5cm) x 3.9"(10cm)

Wattage (Lumens):
Small: 10W (1100lm)
Small: 12W (1320lm)
Medium: 15W (1650lm)
Medium: 18W (1980lm)
Large: 20W (2200lm)
Large: 24W (2640lm)

Weight: 180g, 420g
Material: Aluminum
Finish: Black, White
Light Source: Integrated LED
Dimmable: Yes (Optional)
Voltage: 90-260VAC
Installation Type: Hardwired
Sloped Ceiling Compatible?: Yes
Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

We recommend professional installation by a certified technician.

Installation Guide

Details

Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Be sure to confirm the mounting type in the product listing before beginning installation.
Ceiling Compatibility: Most models are designed for drywall ceilings. Some may also be compatible with concrete or drop ceilings, check the technical documentation for guidance.
Dimming: Many designs are dimmable when used with compatible drivers and wall dimmers.
Power Source: All models are hardwired and connect directly to a ceiling electrical junction.
Trim Integration: Trimless downlights may require professional finishing or flush-mount drywall techniques.
Track Compatibility: Track-mounted options are installed onto compatible rail systems. Refer to your product’s specification for track type.

Tools You May Need

Drill
Keyhole or drywall saw (for recessed or trimless installations)
Screwdriver
Voltage tester
Wire stripper
Wire nuts (included with most fixtures)
Screws and wall anchors (for surface mounting)
Level
Measuring tape or pencil

Installation Steps

Step 1: Turn Off Power
At the breaker panel, shut off power to the installation circuit. Use a voltage tester to confirm that no current is present before starting.

Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
If the fixture requires a ceiling cutout, use the provided template to mark your opening. Cut carefully with a drywall saw or hole cutter. Trimless models may require deeper space and additional setup for seamless finishing.

Step 3: Install Mounting Hardware or Fixture Housing

For recessed and trimless designs, insert the housing into the ceiling cavity and secure it with spring clips or fasteners. Trimless models may need joist framing for proper support.
Semi-recessed fixtures partially install into the ceiling and are secured per the included instructions.
Surface-mounted downlights attach directly to the ceiling surface or an existing junction box using screws and wall anchors.
Track fixtures require the installation of a compatible track system first. The fixture then locks into place on the track.

Step 4: Connect the Wiring
Match the fixture wires to the ceiling wires:

Black to black (live)
White to white (neutral)
Green or bare to the ground wire
Secure each connection with wire nuts, and neatly place the connected wires back into the housing or box.

Step 5: Final Assembly

Trimless fixtures must be mudded and feathered into the ceiling plane before final painting for a seamless finish.
Recessed, semi-recessed, and surface fixtures are typically completed by twisting or snapping the trim or body into place.
For track lights, position and rotate each fixture head along the track as needed after locking it into the track rail.

Step 6: Restore Power and Test
Return to the breaker panel and switch the circuit back on. Use the wall switch or dimmer to test your fixture and verify proper operation.

Important Tips

Professional installation is recommended for trimless or recessed downlights, especially when mudding or insulation is involved.
Always follow local electrical codes and regulations during installation.
Use only compatible drivers and dimmers as specified for the fixture.
Maintain safe spacing from insulation when installing into ceiling cavities to prevent overheating.

Still need help?

Our support team is ready to assist with customization or technical questions.
Email: help@residencesupply.com

Why you'll love it

Durable aluminum body resists wear.
Shockproof solid-state design enhances safety.
Instant start eliminates flicker delays.

Request call back

Our design concierge will call you within 2 minutes.

Thank you! We've received your request.

Our design team will reach out within 24 hours to discuss your project.

Design Consultation

Need help planning your project?
Book a complimentary 15-minute consultation with our design team for layout guidance and expert advice.
Book now

SAY GOODBYE TO OVERHEATING AND HELLO TO RELIABLE, LONG-LASTING LIGHTING

Illuminate your space with the Winry Downlight, a beacon of efficiency and style. Crafted from durable high-quality aluminum, it guarantees long-lasting performance, rapid heat dissipation, and adjustable beam angles for tailored lighting. Upgrade to Winry Downlight and discover the perfect fusion of elegance and performance in one sleek package.

FEATURES:

Robust high-quality aluminum body ensures long-lasting performance
Adjustable beam angles (15°, 45°, and 60°) for customized lighting
Efficient and rapid heat dissipation technology
Instant start technology with no flickering ensures instant illumination
Shockproof solid-state design guarantees lasting durability
Exceptional 90% energy savings for eco-friendly illumination
Low maintenance and environmentally conscious solution
Remarkable longevity, exceeding 80,000 hours
Versatile AC90-260V input compatibility for diverse use

HOW TO OPERATE:

Turn off the power supply at the main circuit breaker
Mark and cut holes in the ceiling for the downlights
Connect the provided driver to the power source and then wire the downlights according to the given instructions
Adjust the downlights as necessary to achieve the desired lighting arrangement

DIMENSIONS:

Small - 3.7" x 2.5" / 9.5cm x 6.5cm
Medium - 4.5" x 3.3" / 11.5cm x 8.5cm
Large - 4.5" x 3.9" / 11.5cm x 10cm

VERSATILE LIGHTING FOR VARIOUS APPLICATIONS

The Winry with adjustable beam angles offers adaptability, making it suitable for a wide range of lighting needs, ensuring the perfect ambiance for any space.

EXCEPTIONAL LONGEVITY AND DURABILITY

Constructed to last, this downlight is built to withstand the test of time, ensuring dependable and lasting performance.

STYLISH VARIETY

Choose the perfect color to match your decor, as the Winry Downlight is available in two attractive and versatile color choices.

Frequently Asked Questions

Are these fixtures suitable for historical homes?

Yes, the Winry Downlight is suitable for historical homes due to its adjustable beam angles, efficient heat dissipation, and stylish design, ensuring both functionality and aesthetic compatibility.

What materials are used in the construction?

The Winry Downlight is constructed from durable high-quality aluminum, ensuring long-lasting performance and efficient heat dissipation. For installation, please ensure you turn off the power supply at the main circuit breaker, mark and cut holes in the ceiling, connect the provided driver to the power source, and adjust the downlights as necessary. We recommend using a professional installer for best results.

How do I install the fixtures?

Installing the Winry Downlight is a breeze! First, turn off the power supply at the main circuit breaker. Then, mark and cut holes in the ceiling for the downlights. Connect the provided driver to the power source and wire the downlights according to the instructions. Finally, adjust the downlights to achieve your desired lighting arrangement. Voilà! Your space is now beautifully illuminated with the perfect blend of efficiency and style.

How does the heat dissipation technology work?

The Winry Downlight's heat dissipation technology is designed to ensure rapid and efficient cooling, thanks to its robust high-quality aluminum body. This material not only provides durability but also facilitates quick heat transfer away from the light source, preventing overheating and extending the lifespan of the downlight. This advanced cooling mechanism ensures that your lighting remains reliable and long-lasting, making it a smart and stylish choice for any space.

Are the beam angles adjustable?

Yes, the Winry Downlight features adjustable beam angles, allowing you to customize the lighting according to your needs. You can select from three different beam angles: 15°, 45°, and 60°. This versatility makes it suitable for a wide range of applications, ensuring optimal illumination and ambiance for any space. Whether you need focused lighting or broader coverage, the Winry Downlight can be easily adjusted to meet your specific lighting requirements.

Does it provide instant illumination without flickering?

Absolutely! The Winry Downlight features instant start technology that ensures immediate illumination without any flickering, providing you with a seamless and reliable lighting experience.

How energy efficient are these fixtures?

The Winry Downlight is highly energy-efficient, offering up to 90% energy savings.

What is the expected lifespan of these fixtures?

The expected lifespan of the Winry Downlight fixtures is over 80,000 hours.

Are they compatible with different voltage inputs?

Yes, the Winry Downlight is compatible with diverse voltage inputs, specifically AC90-260V.

Is the design shockproof and durable?

Yes, the Winry Downlight features a shockproof solid-state design that guarantees lasting durability.
