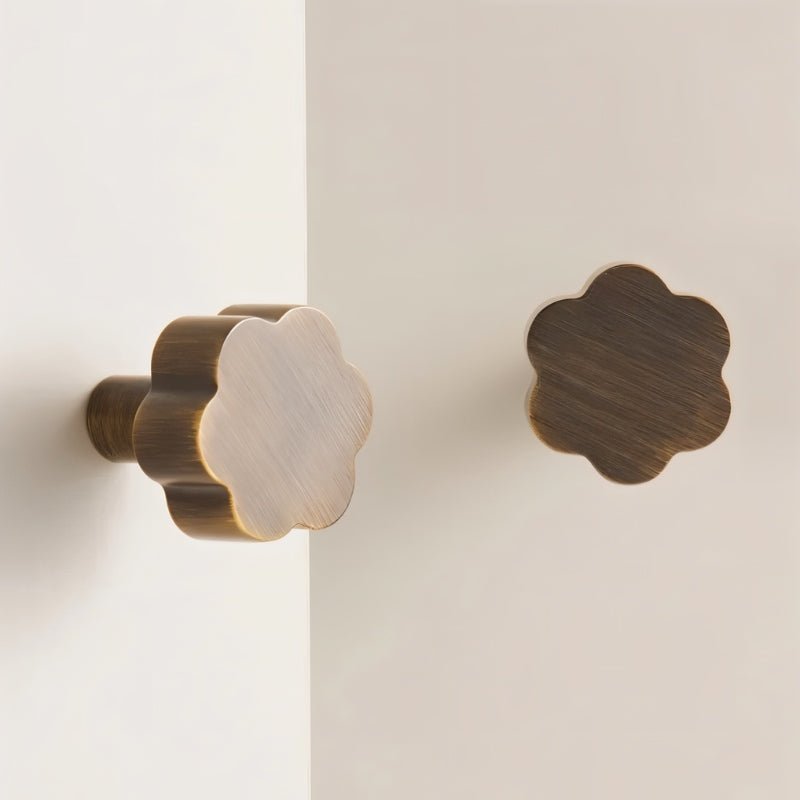

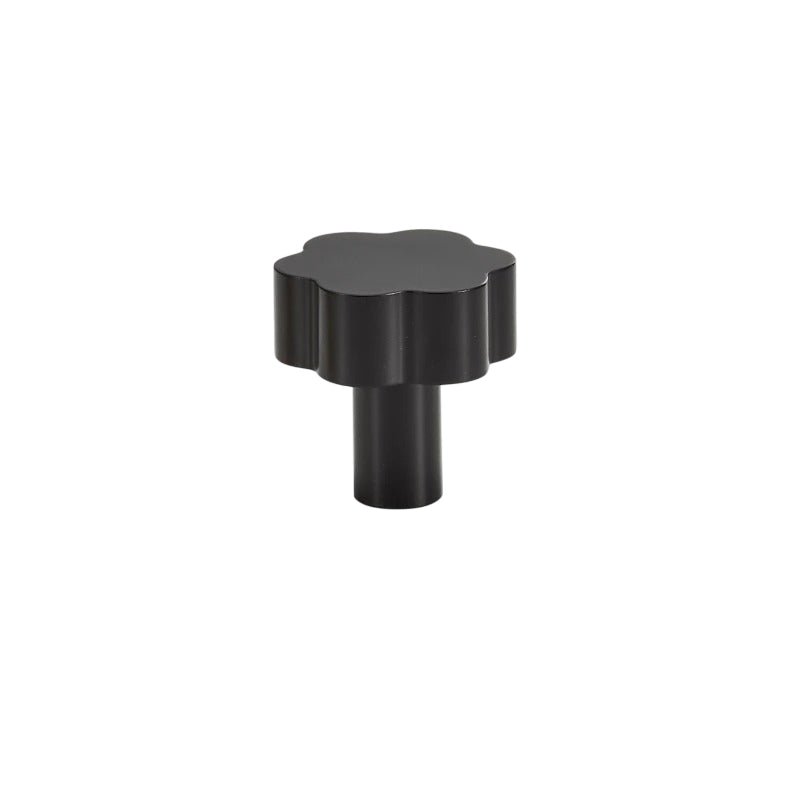

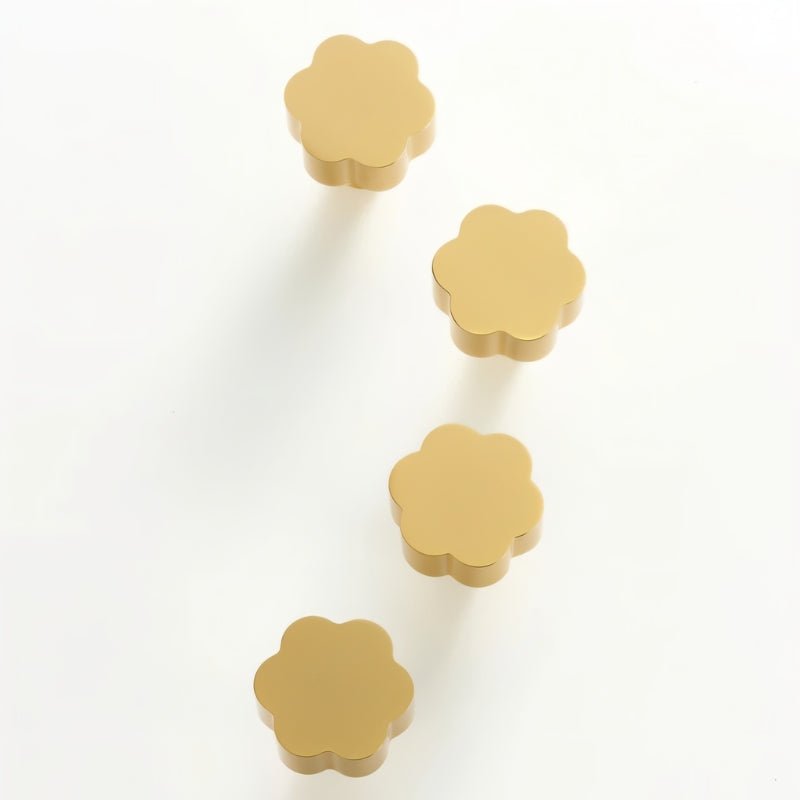

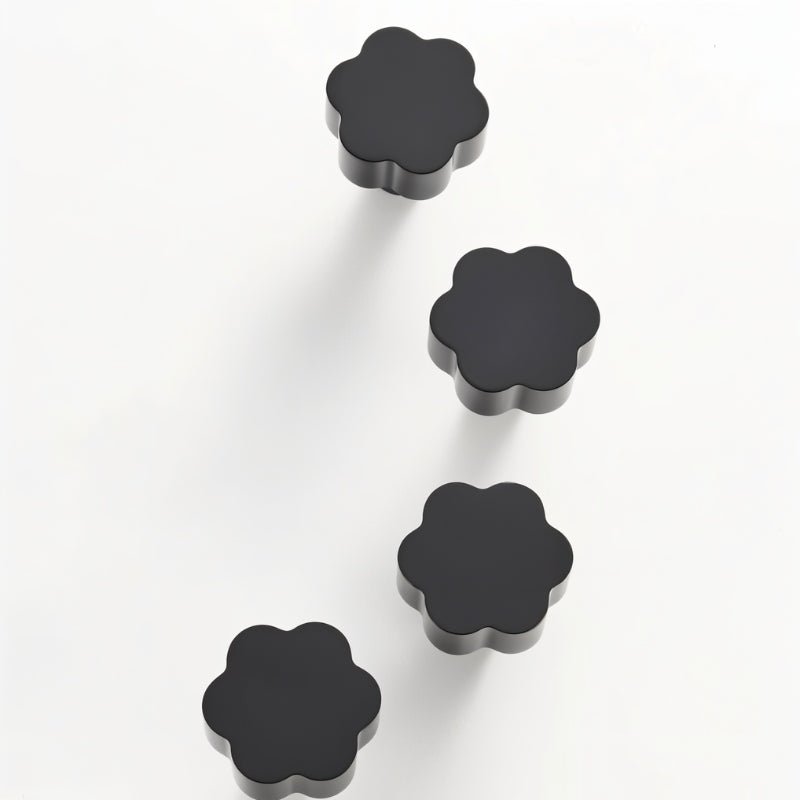

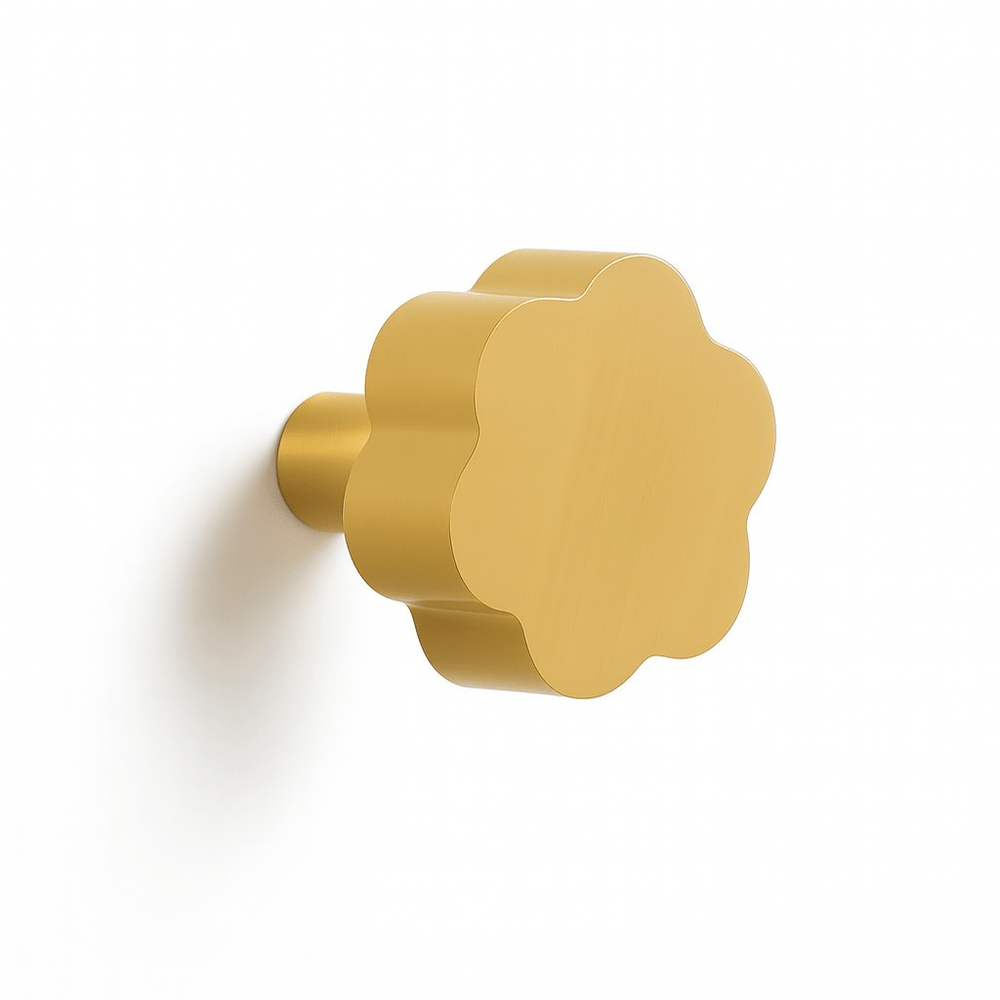

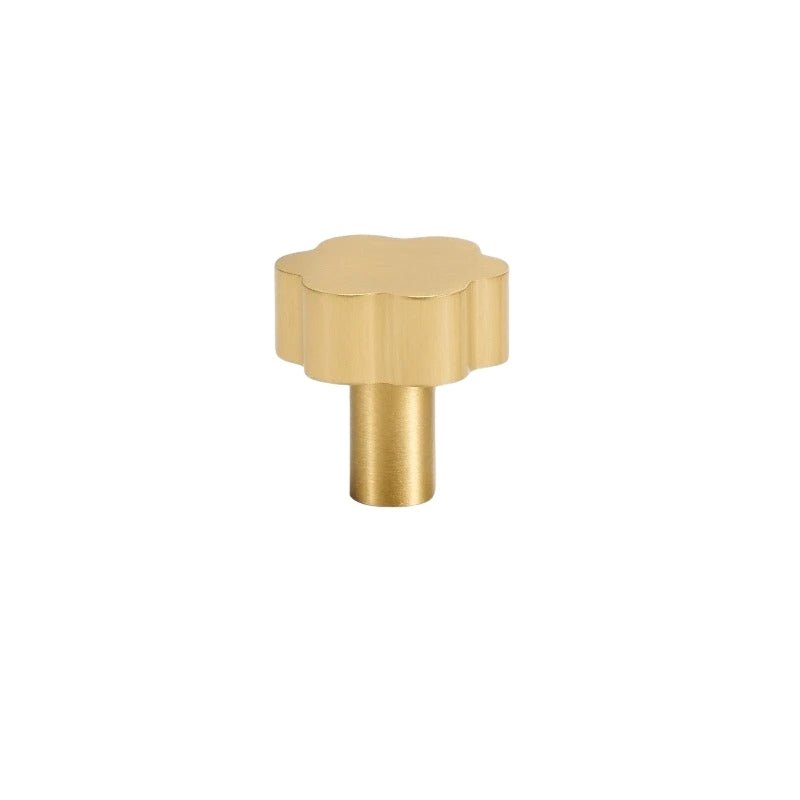

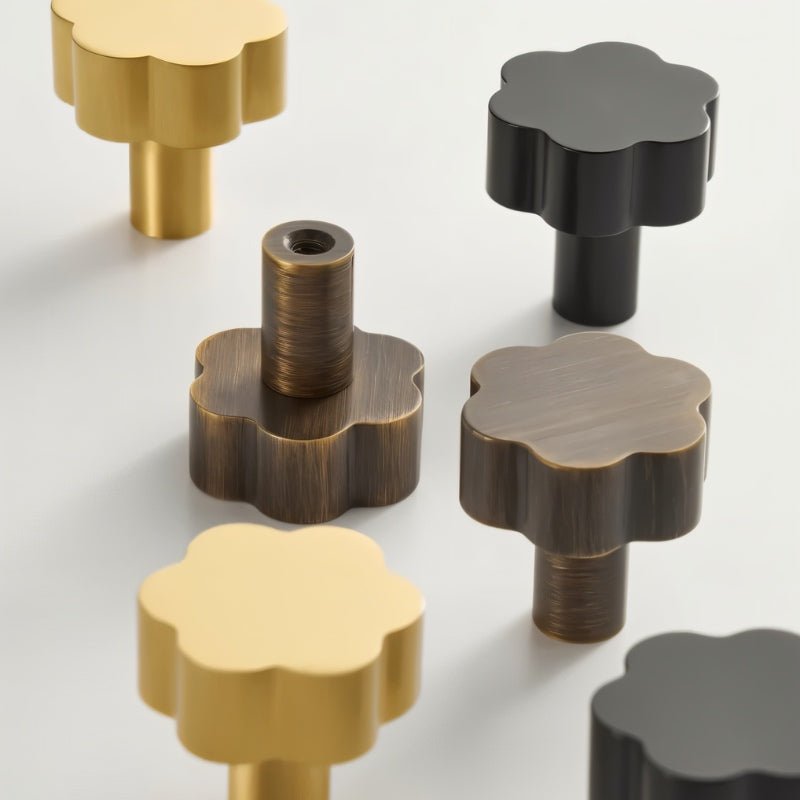

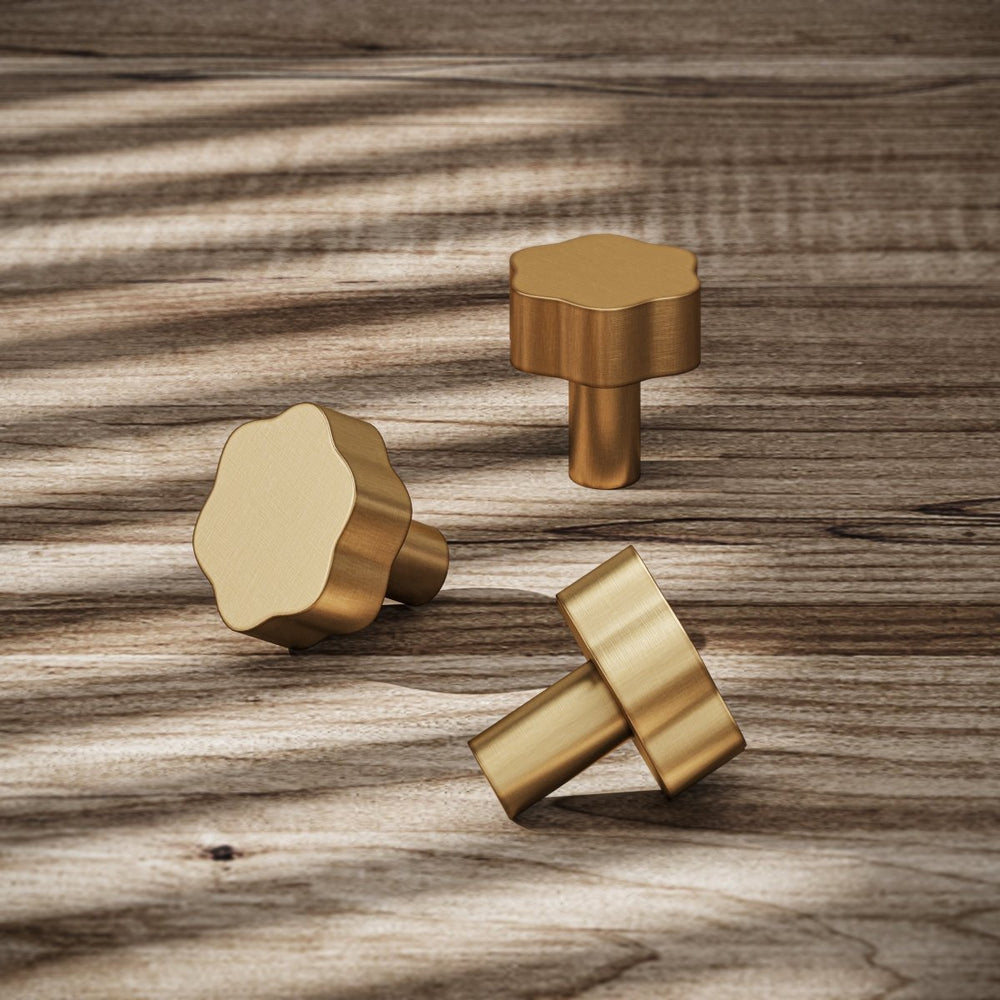

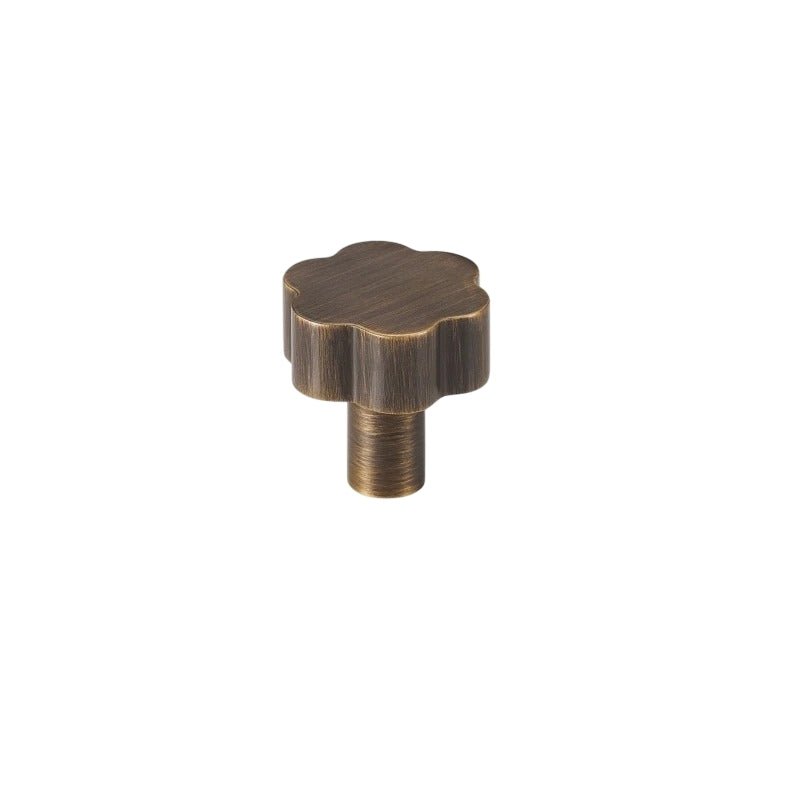

Tuilt Knob

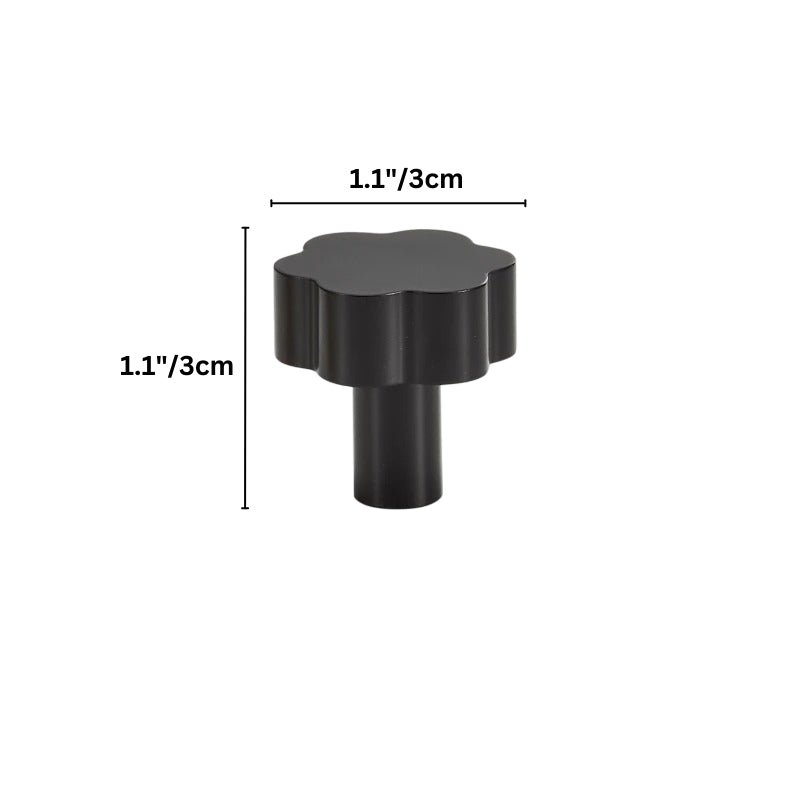

Dimensions: Knob: D1.1"(3cm) x H1.1"(3cm)
Material: Brass
Finish: Black, Brass, Bronze
Weight: 75g
Grip Style: Smooth

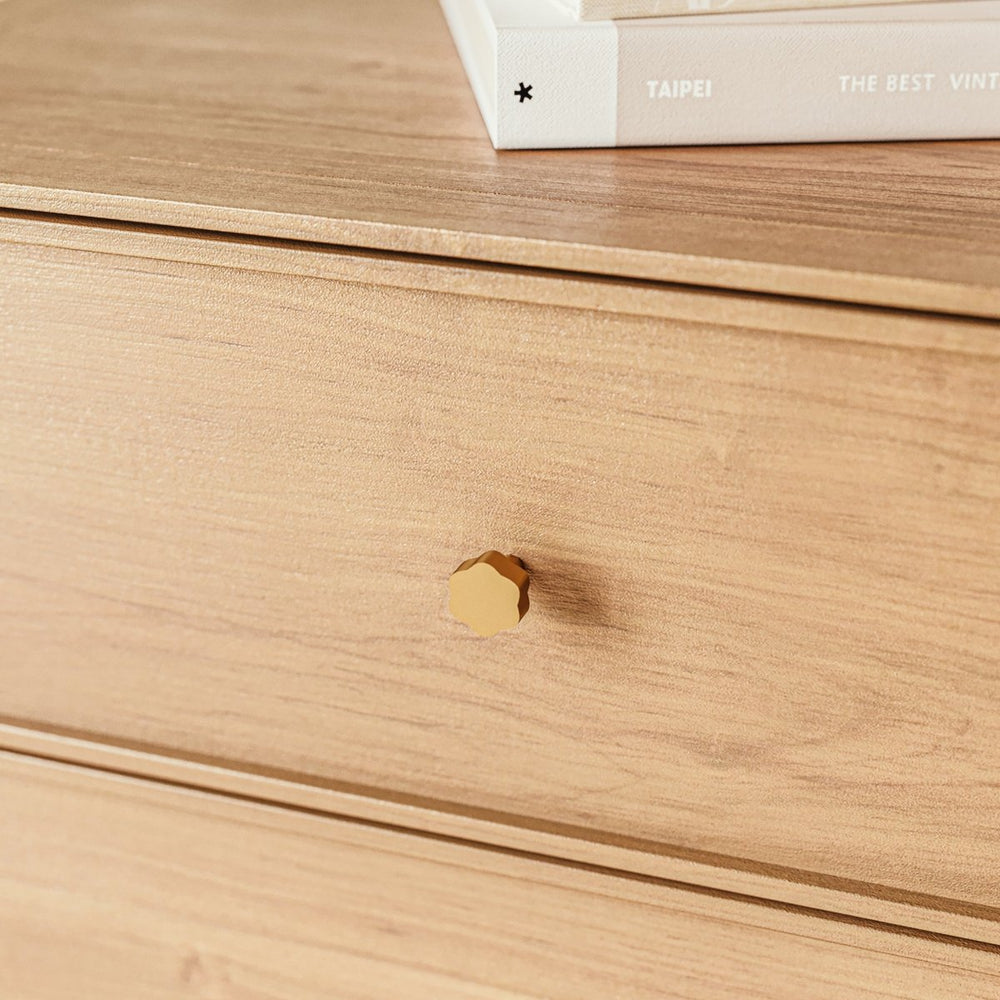

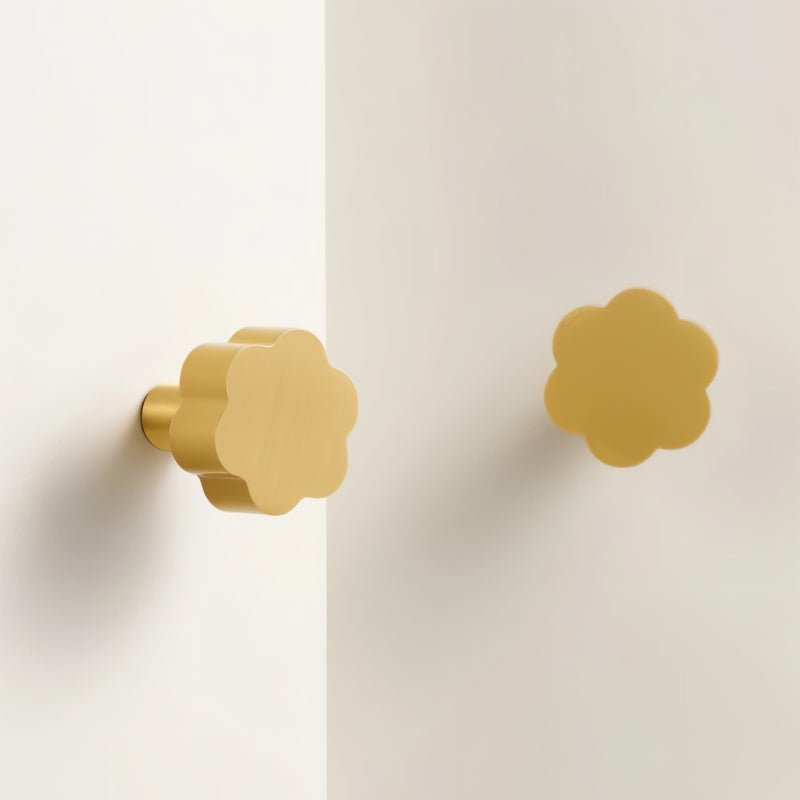

Application: Cupboard, Cabinets, Drawer, Wardrobe

Product Includes

Brass plate, toggle switch mechanism, and mounting accessories.

Installation Steps

Step 1: Turn Off the Power
Before starting, turn off the power to the switch at your home’s circuit breaker or fuse box to ensure safety.

Step 2: Remove the Old Cover Plate
Use a screwdriver to remove the screws securing the existing wall plate. Gently lift the plate off and set it aside.

Step 3: Take Out the Old Switch
Unscrew the old switch from the electrical box and carefully pull it outward to access the wiring.

Step 4: Disconnect the Wires
Detach the wires from the old switch.

• If wires are wrapped around screws, loosen the screws.
• If inserted into rear holes, cut and strip the wire ends using a wire stripper if needed.

Step 5: Connect the Wires to the New Toggle Switch
Match and connect wires to the new switch:

• Black (live) wire to the brass or black screw
• White (neutral) wire to the silver screw (if required by your switch)
• Green or bare copper wire to the green ground screw
  Tighten each connection securely.

Step 6: Secure the New Switch
Gently tuck the wires back into the electrical box. Align the toggle switch and fasten it using the included screws.

Step 7: Attach the New Cover Plate
Position the brass plate over the switch and secure it in place with the provided screws.

Step 8: Turn the Power Back On
Flip the breaker or fuse back on at your electrical panel.

Step 9: Test Your New Switch
Flip the toggle up and down to ensure proper operation. The connected light or device should turn on and off smoothly.

If you experience any issues or feel unsure during installation, consult a licensed electrician. Safety always comes first!
