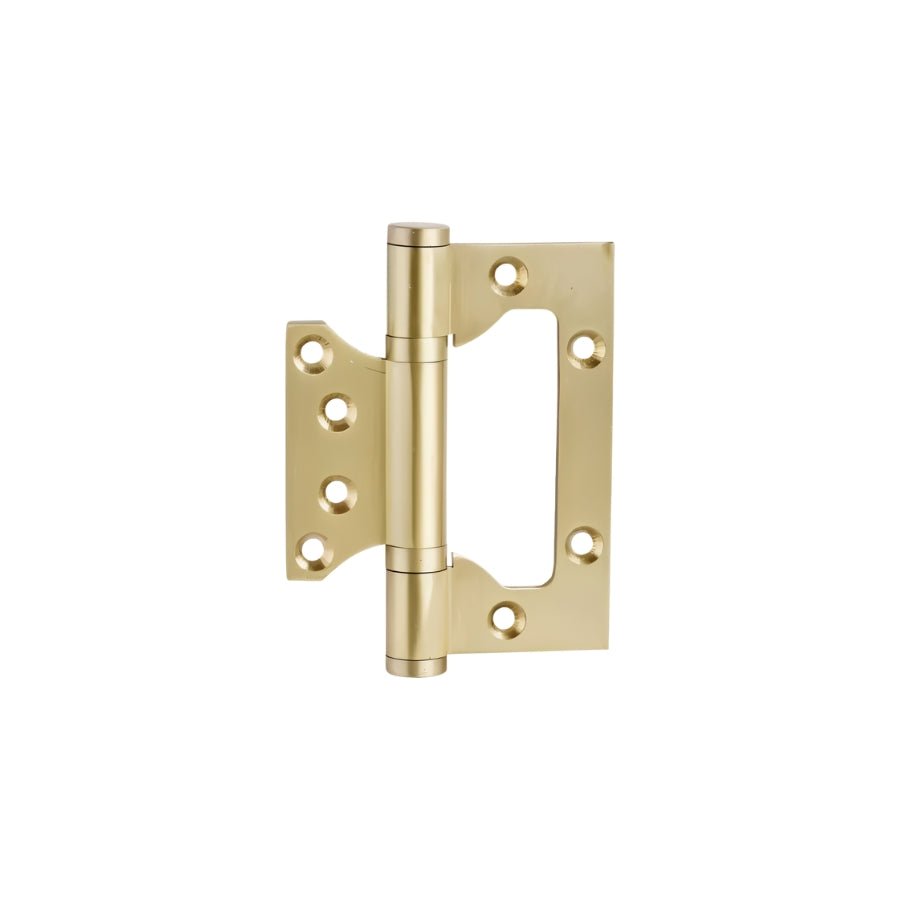

Sirva Door Hinge

Event Price: $44
Regular Price: $55

Use code "YEAR3" for 20% off

3YEARS
Tags: Door Hinge not on discount

High-quality brass hinge ensures smooth door movement and secure installation — perfect for high-traffic residential or commercial spaces requiring reliable performance.

Estimated arrival: , Order within .

The estimated shipping time is a suggestion based on current material availability. Customized orders may take up to 15 additional days for custom fabrication and material sourcing.

Request call back

Our design concierge will call you within 2 minutes.

    Thank you! We've received your request.
    Why you'll love it
    1. Smooth door movement enhances daily use
    2. Reinforced design prevents hinge warping
    3. Multiple finishes complement varied decor
    Product Specifications

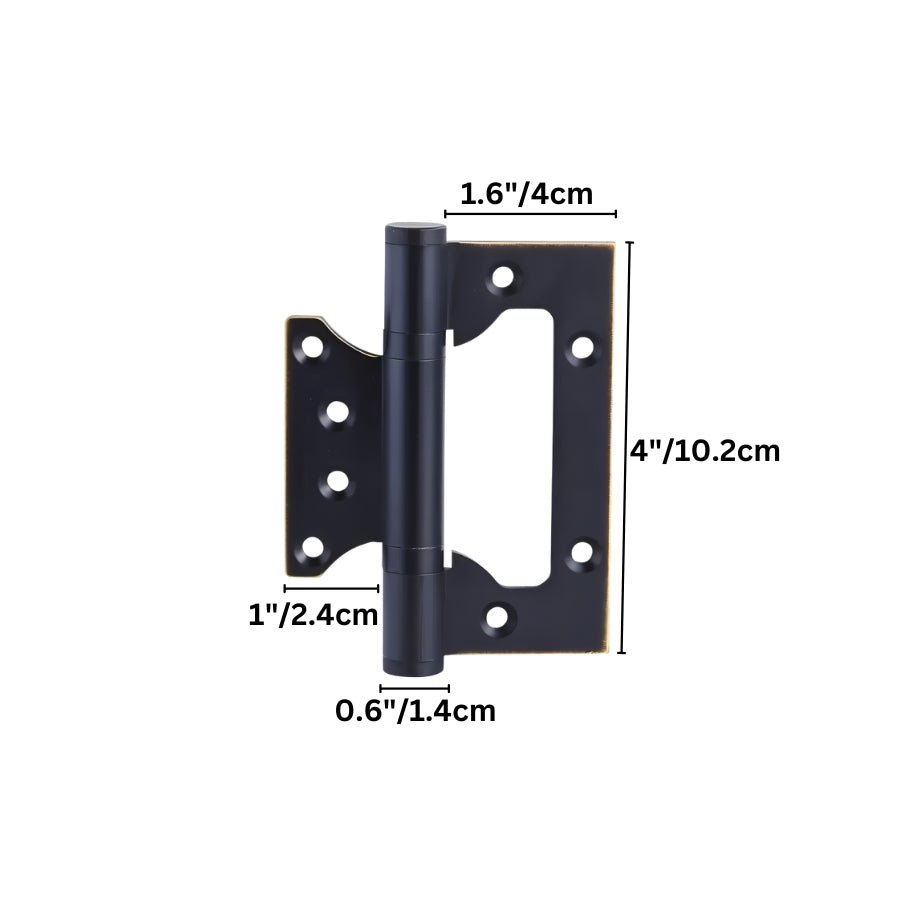

    Dimensions: L1.6"(4cm) x H4"(10.2cm)
    Material: Brass

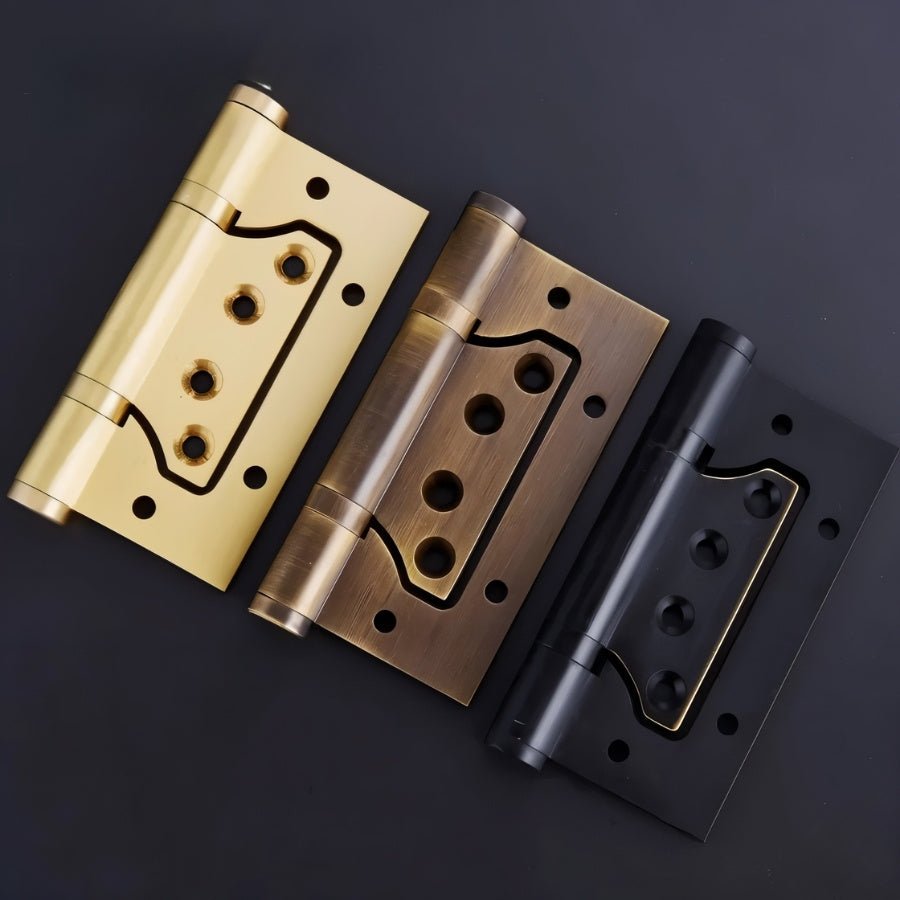

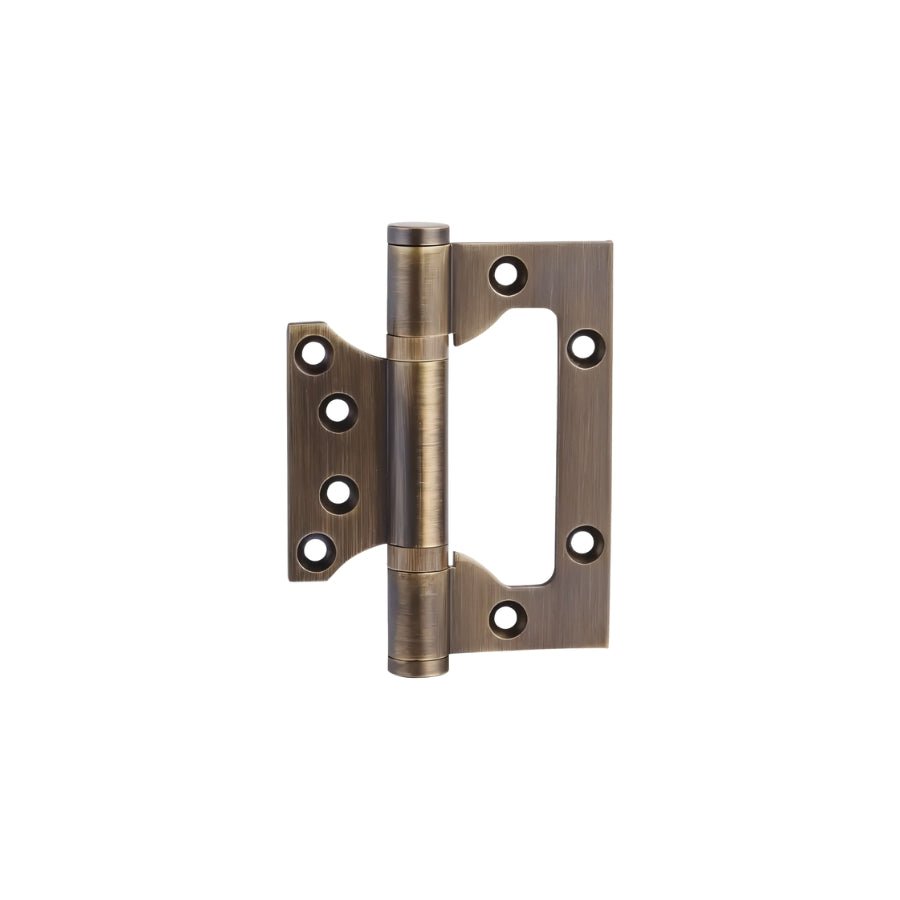

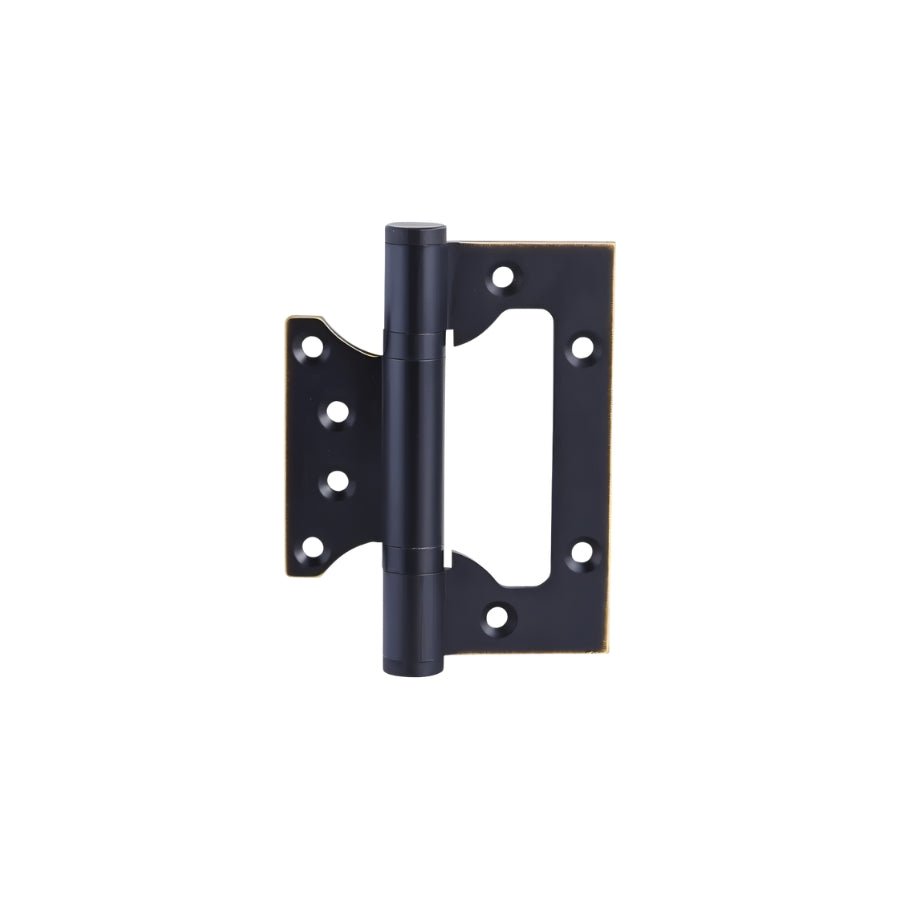

    Finish: Brass, Black, Bronze
    Weight Capacity: Up to 45kg
    Pin Type: Removeable Pin
    Bearing Type: Plain Bearings
    Installation: Mortise
    Application: For Interior Use
    Installation Guide

    Details

    Mounting Options:
     Door hinges are designed for installation on the door edge and the corresponding frame. Placement and method depend on hinge type.

    Tools You May Need
    • Screwdriver (Phillips or flathead)
    • Drill and drill bits
    • Chisel (for mortising)
    • Screws
    • Tape measure and pencil
    • Level or square
    • Hammer and mallet
    A. Mortise Hinges

    Step 1: Mark Placement

    Measure and mark hinge positions on the door edge. Standard placement is:

    • Top hinge: 5–7 inches from the top of the door.
    • Bottom hinge: 10–12 inches from the bottom.
    • Third hinge (if used): centered between top and bottom.

    Step 2: Mortise the Door and Frame

    Trace the hinge outline. Chisel shallow recesses into the door edge and frame so the hinge leaf sits flush.

    Step 3: Pre-Drill Screw Holes

    Place the hinge in the mortise, mark screw locations, and drill pilot holes.

    Step 4: Attach Hinges

    Screw one leaf of each hinge to the door edge. Position the door in the frame and secure the other hinge leaf to the jamb.

    Step 5: Test Door Swing

    Open and close the door to ensure smooth movement. Adjust screws if necessary.

    B. Concealed Hinges

    Step 1: Mark and Cut Recess

    Mark hinge placement on both the door edge and the frame. Use a router or chisel to cut recesses deep enough to house the concealed hinge body.

    Step 2: Position and Pre-Drill

    Insert the hinge body into the recess, align flush with the surface, and mark screw holes. Drill pilot holes.

    Step 3: Attach Hinges

    Secure the hinge body into both the door and the frame using provided screws. Ensure full seating for proper alignment.

    Step 4: Adjust Alignment

    Most concealed hinges include adjustment screws. Use these to fine-tune door alignment vertically and horizontally.

    Step 5: Test Operation

    Open and close the door fully to confirm smooth, quiet motion without rubbing or binding.

    Important Tips
    • Always mark hinge locations carefully before cutting or drilling.
    • Mortising ensures hinges sit flush and the door closes properly.
    • Use a level to check vertical alignment.
    • For heavy doors, use at least three hinges.
    • Periodically tighten screws to maintain performance.
    Need Help?

    We’re here to assist with installation or compatibility questions.
    Email us at: help@residencesupply.com
    Make it your own

    Our in-house technicians can customize any order!

    Popular Changes:

    • Hanging length
    • Material color or paint
    • Emitting color
    • Dimmable add-on
    • Add or reduce size/dimension
    • Redesign the entire lighting fixture to your suggestion

    What We Do:

    • Make minor adjustments above
    • Create CAD drawings for your custom design
    • 3D render the product into your photo

    Speak with an expert on live chat or call us now from 9AM EST to 6PM EST.

    Alternatively, leave us an email.
    Free Interior Design Consultation
    Get 20% Off With Membership
    See it in your room

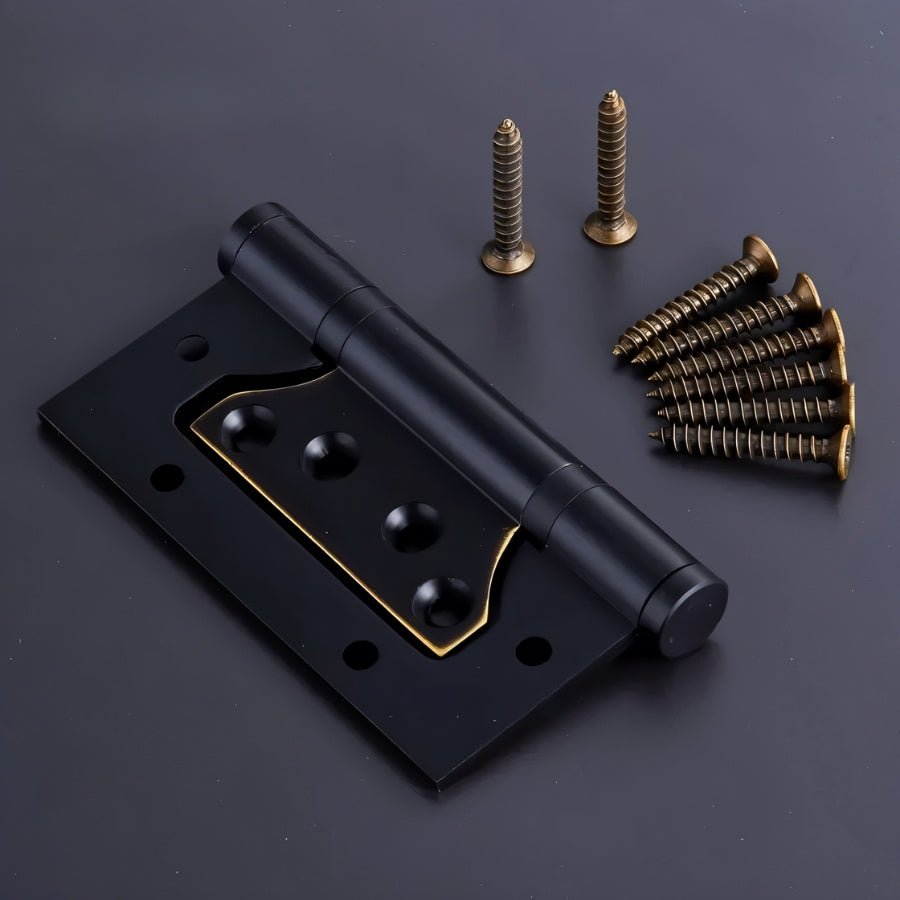

    Sirva Door Hinge is made of high-quality brass for durability and corrosion resistance. Its reinforced design with multiple screw holes ensures secure installation and smooth door movement. Available in gold, bronze, and black finishes, it suits modern, classic, or industrial interiors. Ideal for residential and commercial doors, offering strength and reliability.



    FEATURES:

    • High-quality brass construction ensures durability and corrosion resistance.
    • The reinforced design provides strong support for heavy doors.

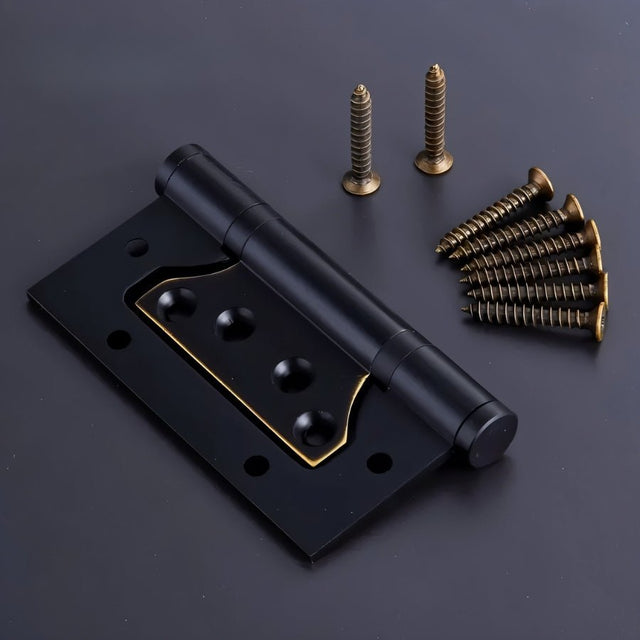

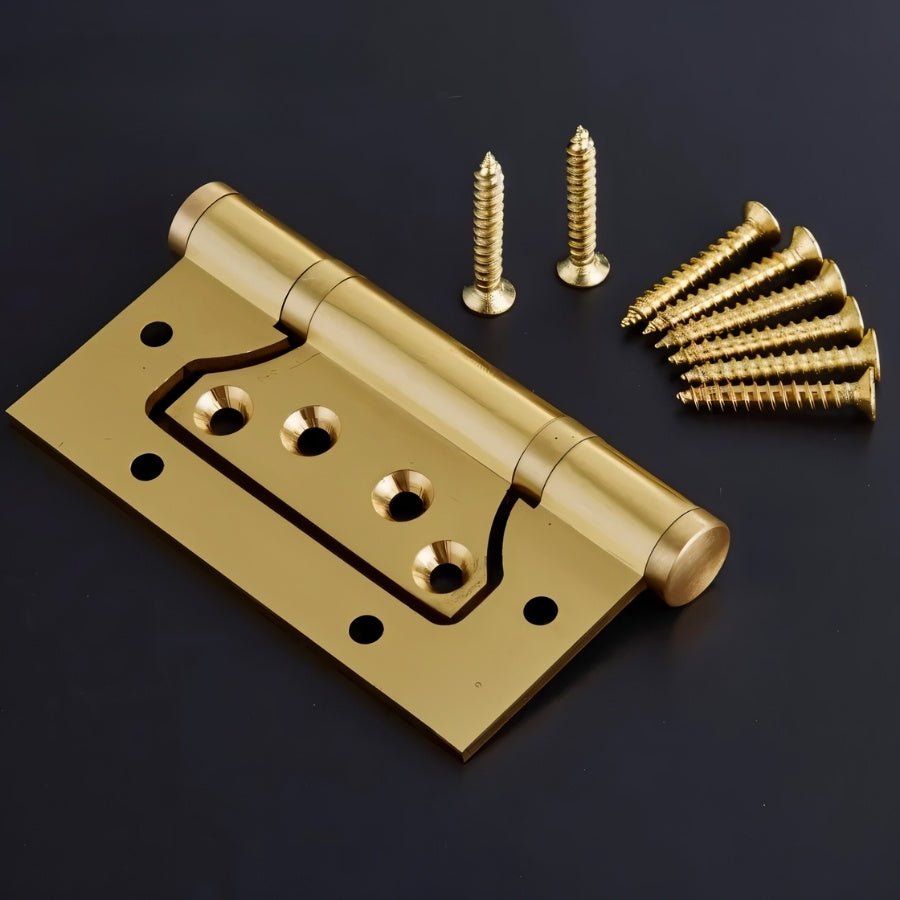

    • Multiple screw holes allow secure and stable installation.
    • A smooth hinge mechanism ensures effortless door movement.
    • Ideal for residential and commercial doors with high usage.

          Frequently Asked Questions

          What material is the Sirva Door Hinge made of?

          The Sirva Door Hinge is made of high-quality brass, ensuring durability and corrosion resistance.

          Is this hinge suitable for heavy doors?

          Yes, its reinforced design provides strong support for both light and heavy doors.

          What finishes are available for the Sirva Door Hinge?

          It comes in gold, bronze, and black finishes to match various interior styles.

          Can this hinge be used for both residential and commercial doors?

          Yes, it is designed for residential homes, offices, and commercial spaces.

          Does the hinge allow smooth door movement?

          Yes, it features a precision-engineered mechanism for effortless and stable door operation.

          Is the Sirva Door Hinge rust-resistant?

          Yes, its brass construction provides excellent resistance to rust and corrosion.

          How many screw holes does the hinge have for installation?

          The hinge includes multiple screw holes to ensure a secure and stable attachment.

          Can this hinge be used for interior and exterior doors?

          Yes, but for exterior doors, ensure it is installed in a covered area to extend its lifespan.

          Does it require professional installation?

          No, the hinge can be installed with basic tools, but professional installation is recommended for precise alignment.

          Is this hinge compatible with all door types?

          Yes, it is suitable for wooden, metal, and composite doors in various styles.
