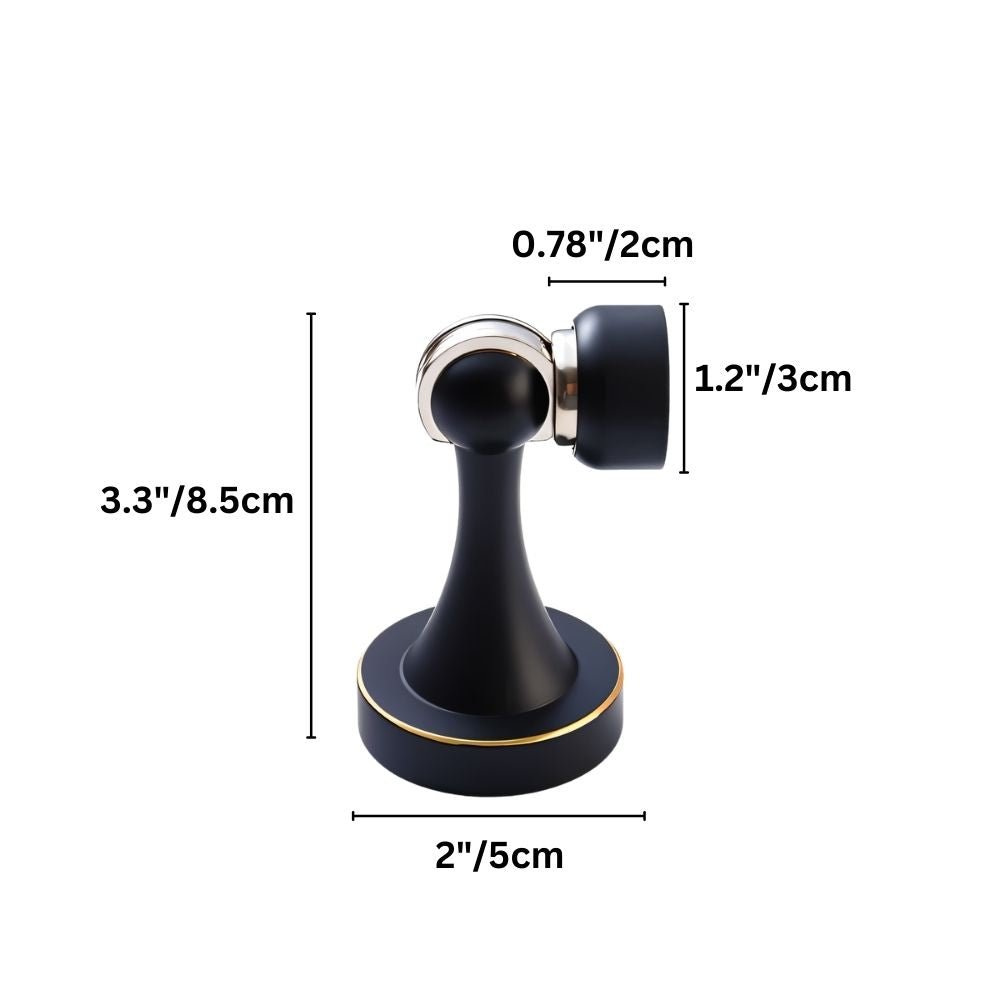

Dimensions: 3.3" x 2" / 8.5 x 5cm
Material: Brass
Finish: Grey, Black, Brown, Gold
Weight: 245g
Installation: Floor Mounted
Application: For Interior Use

Details

Mounting Options:
This door stop may be floor-mounted or wall-mounted depending on design. Refer to the product details for correct placement.

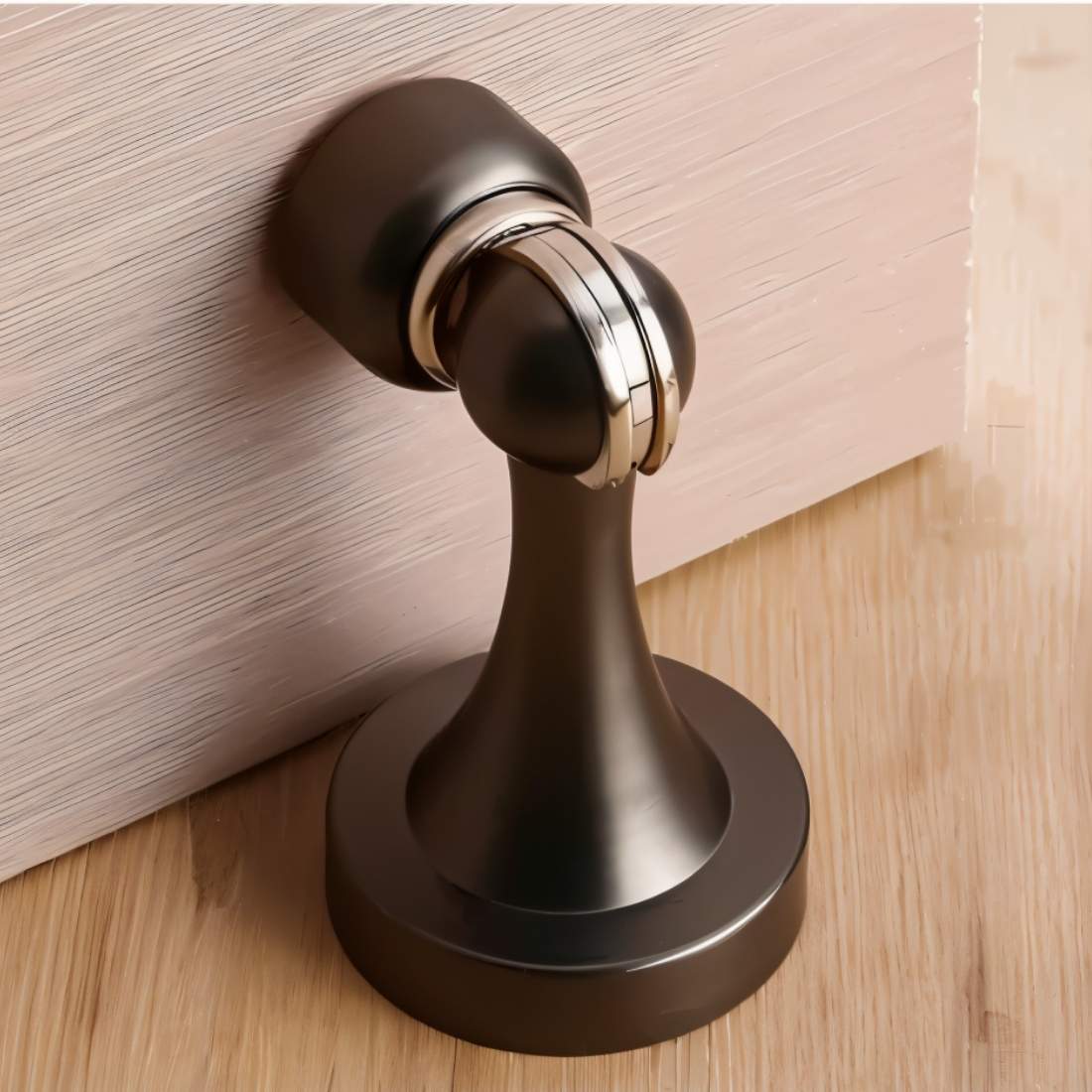

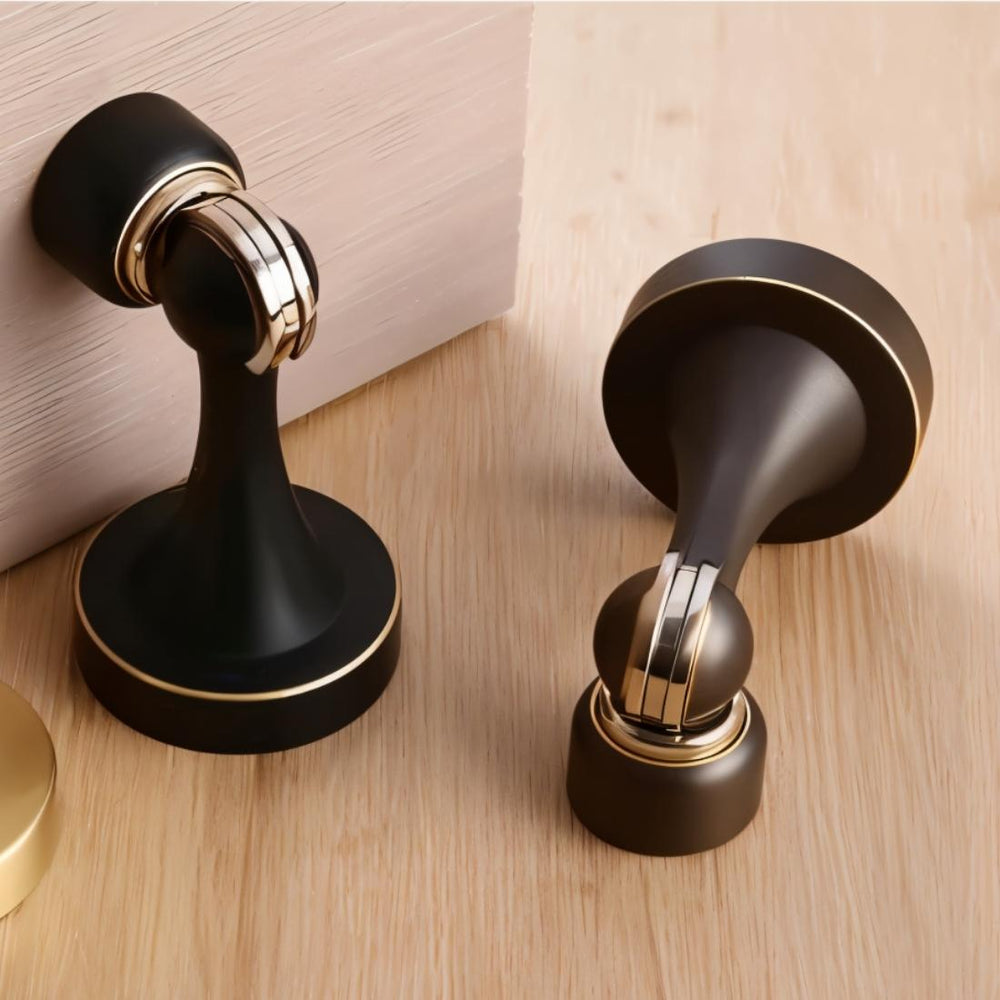

• Magnetic Door Stop – designed to hold the door open with a magnet.
• Standard Door Stop – fixed post or bumper style that prevents wall or furniture damage.

Tools You May Need

• Screwdriver (Phillips or flathead)
• Drill and drill bits
• Screws and anchors
• Measuring tape and pencil
• Level
• Allen key

A. Floor-Mounted Door Stops

Step 1: Mark Placement

Open the door fully and mark the point on the floor where the stop will prevent wall or furniture contact.

Step 2: Drill Pilot Holes

Position the baseplate on the marked spot and drill pilot holes. Use anchors if mounting into concrete or tile.

Step 3: Secure the Stop

Attach the door stop with the provided screws. Tighten firmly but do not overtighten.

Step 4: Test Function

Swing the door open to ensure it makes smooth contact with the stop.

B. Wall-Mounted Door Stops

Step 1: Choose Placement

Close the door gently and identify the contact point on the wall. Mark the spot at the correct height for the stop.

Step 2: Drill and Anchor

Drill pilot holes at the marked location. Insert wall plugs if required.

Step 3: Attach the Door Stop

Fix the stop into place using the provided screws. Ensure it is straight and level.

Step 4: Check Alignment

Open the door to confirm it meets the stop correctly.

C. Magnetic Door Stops

Step 1: Position Base Unit

Mark the location for the magnetic base on the floor or wall, ensuring it aligns with the bottom of the door.

Step 2: Install Base

Drill pilot holes and secure the base unit with screws.

Step 3: Attach Door Component

Install the matching magnet piece on the bottom or side of the door using the provided screws.

Step 4: Test Engagement

Open the door and ensure the magnets connect securely to hold it open.

Important Tips

• Always test placement by swinging the door before drilling.
• Use wall plugs or anchors when mounting into drywall, concrete, or tile.
• For magnetic models, align both parts before final tightening.
• Avoid overtightening screws to protect flooring and walls.
