Estimated arrival: , Order within .
The estimated shipping time is a suggestion based on current material availability. Customized orders may take up to 15 additional days for custom fabrication and material sourcing.
No se ha podido cargar la disponibilidad de recogida
Request call back
Our design concierge will call you within 2 minutes.
Weight: 1.3 lbs (0.6 kg) Material: Aluminum Finish: Black, White Light Source: Integrated LED Bulb Included: Yes Dimmable: Upon Request Voltage: 90-260VAC Installation Type: Hardwire Canopy/Backplate Dimensions: D3.9"(10cm) Sloped Ceiling Compatible?: Yes Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
Installation Guide
Details
Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Be sure to confirm the mounting type in the product listing before beginning installation. Ceiling Compatibility: Most models are designed for drywall ceilings. Some may also be compatible with concrete or drop ceilings, check the technical documentation for guidance. Dimming: Many designs are dimmable when used with compatible drivers and wall dimmers. Power Source: All models are hardwired and connect directly to a ceiling electrical junction. Trim Integration: Trimless downlights may require professional finishing or flush-mount drywall techniques. Track Compatibility: Track-mounted options are installed onto compatible rail systems. Refer to your product’s specification for track type.
Tools You May Need
Drill
Keyhole or drywall saw (for recessed or trimless installations)
Screwdriver
Voltage tester
Wire stripper
Wire nuts (included with most fixtures)
Screws and wall anchors (for surface mounting)
Level
Measuring tape or pencil
Installation Steps
Step 1: Turn Off Power At the breaker panel, shut off power to the installation circuit. Use a voltage tester to confirm that no current is present before starting.
Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only) If the fixture requires a ceiling cutout, use the provided template to mark your opening. Cut carefully with a drywall saw or hole cutter. Trimless models may require deeper space and additional setup for seamless finishing.
Step 3: Install Mounting Hardware or Fixture Housing
For recessed and trimless designs, insert the housing into the ceiling cavity and secure it with spring clips or fasteners. Trimless models may need joist framing for proper support.
Semi-recessed fixtures partially install into the ceiling and are secured per the included instructions.
Surface-mounted downlights attach directly to the ceiling surface or an existing junction box using screws and wall anchors.
Track fixtures require the installation of a compatible track system first. The fixture then locks into place on the track.
Step 4: Connect the Wiring Match the fixture wires to the ceiling wires:
Black to black (live)
White to white (neutral)
Green or bare to the ground wire
Secure each connection with wire nuts, and neatly place the connected wires back into the housing or box.
Step 5: Final Assembly
Trimless fixtures must be mudded and feathered into the ceiling plane before final painting for a seamless finish.
Recessed, semi-recessed, and surface fixtures are typically completed by twisting or snapping the trim or body into place.
For track lights, position and rotate each fixture head along the track as needed after locking it into the track rail.
Step 6: Restore Power and Test Return to the breaker panel and switch the circuit back on. Use the wall switch or dimmer to test your fixture and verify proper operation.
Important Tips
Professional installation is recommended for trimless or recessed downlights, especially when mudding or insulation is involved.
Always follow local electrical codes and regulations during installation.
Use only compatible drivers and dimmers as specified for the fixture.
Maintain safe spacing from insulation when installing into ceiling cavities to prevent overheating.
Still need help?
Our support team is ready to assist with customization or technical questions.
Email: help@residencesupply.com
Make it your own
Our in-house technicians can customize any order!
Popular Changes:
Hanging length
Material color or paint
Emitting color
Dimmable add-on
Add or reduce size/dimension
Redesign the entire lighting fixture to your suggestion
What We Do:
Make minor adjustments above
Create CAD drawings for your custom design
3D render the product into your photo
Speak with an expert on live chat or call us now from 9AM EST to 6PM EST.

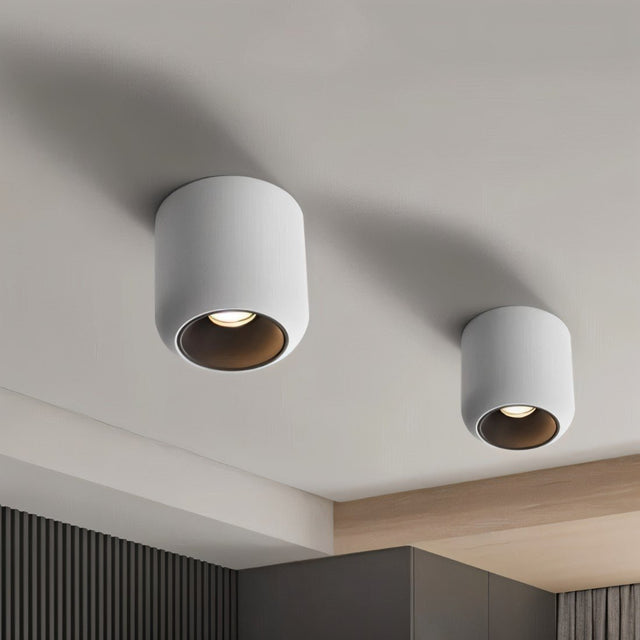

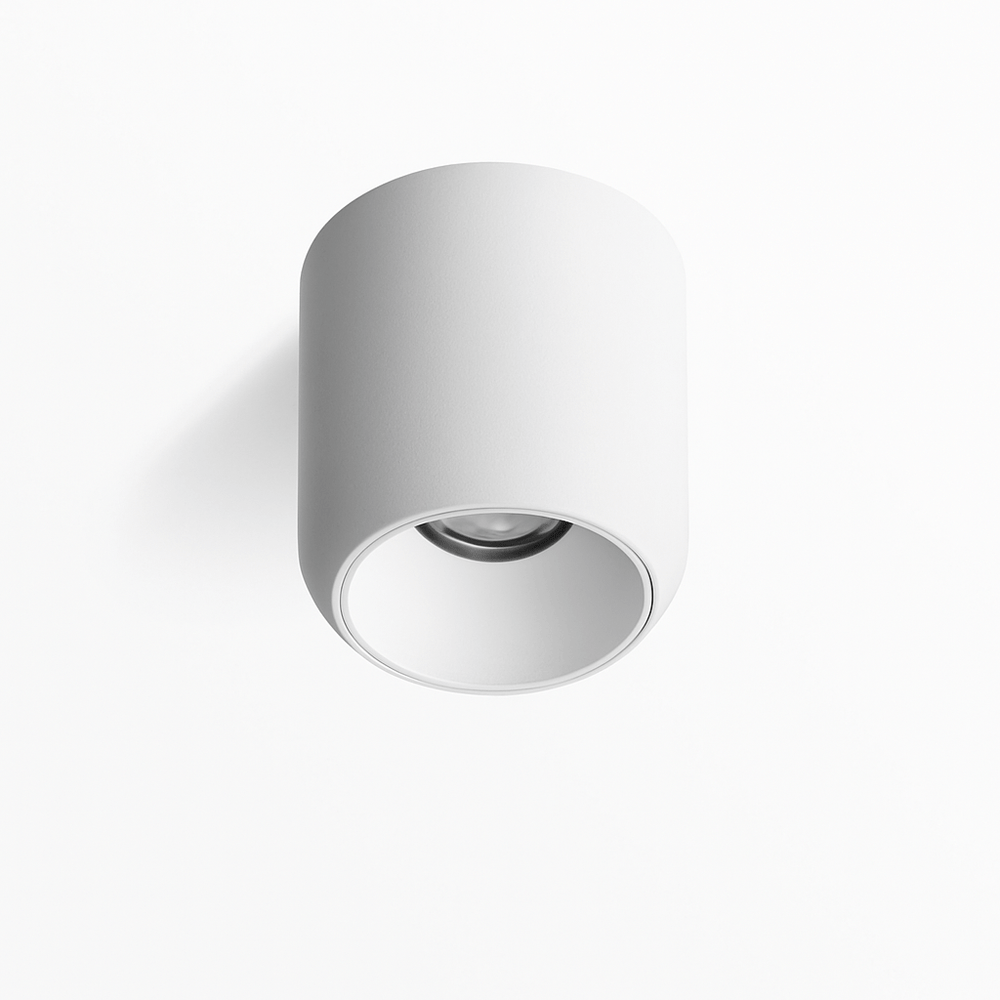

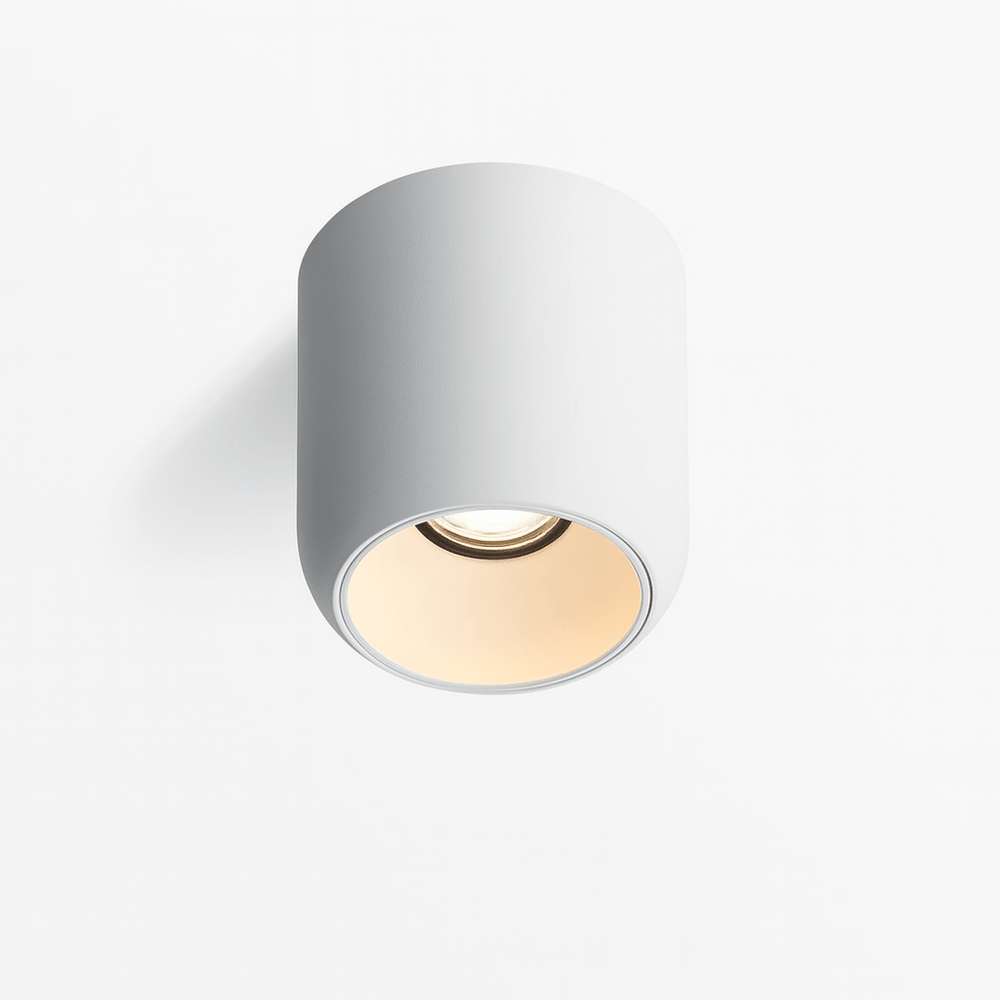

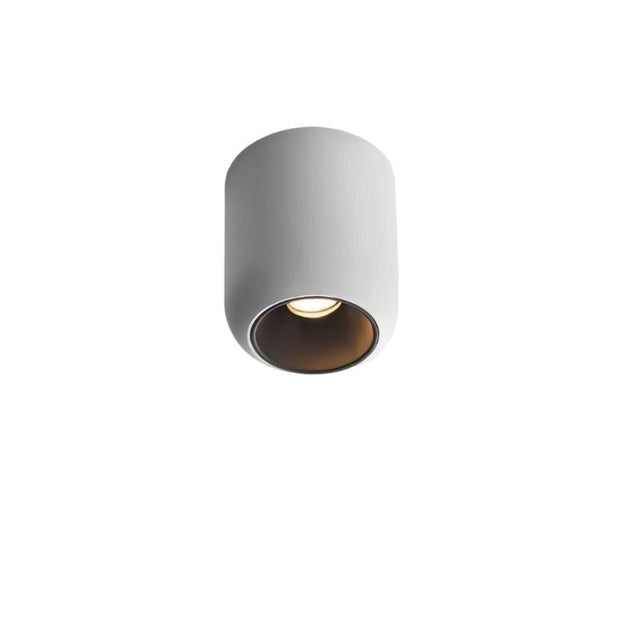

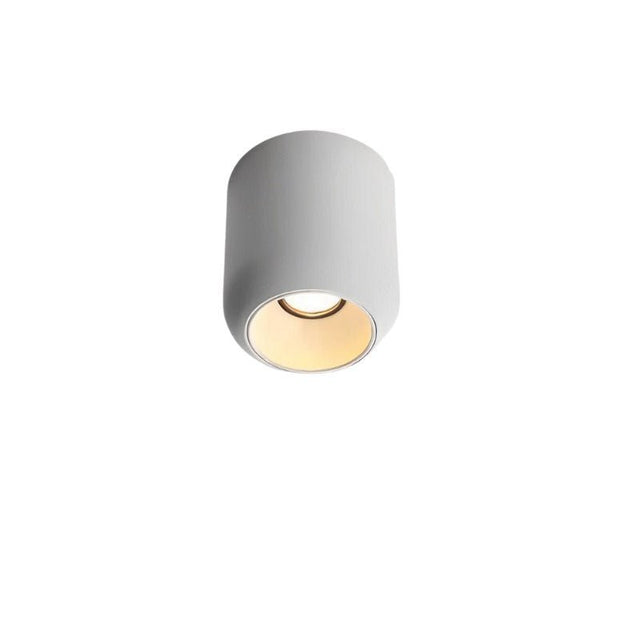

Graziella - Modern, Anti-glare, Durable, Ideal For Displays
The Graziella Downlight redefines your lighting experience, boasting a modern design, streamlined aesthetics, and anti-glare illumination. Its brilliant light enhances the sophistication of any environment while guaranteeing durability thanks to its aluminum build. Available in two exquisite finishes, this downlight is perfect for diverse uses such as illuminating aisles, corridors, and decorative displays, ensuring a secure and hassle-free lighting experience.
FEATURES:
A lasting blend of simplicity and elegance.
Expertly fashioned from premium-grade aluminum.
Craft a welcoming ambiance with a Color Rendering Index (CRI)>90.
Benefit from even illumination with a 24-degree beam angle.
Showcases remarkable resistance to corrosion and rust.
Streamlines installation for a quick and straightforward process.
Experience an extended lifespan exceeding 50,000 hours, minimizing the need for replacements.
Efficiently operates within a voltage range of 90-260V, providing vivid and radiant lighting.
HOW TO OPERATE:
Turn off the power supply at the main circuit breaker.
Mark and cut holes in the ceiling for the downlights.
Connect the provided driver to the power source and then wire the downlights according to the given instructions.
Adjust the downlights as necessary to achieve the desired lighting arrangement.

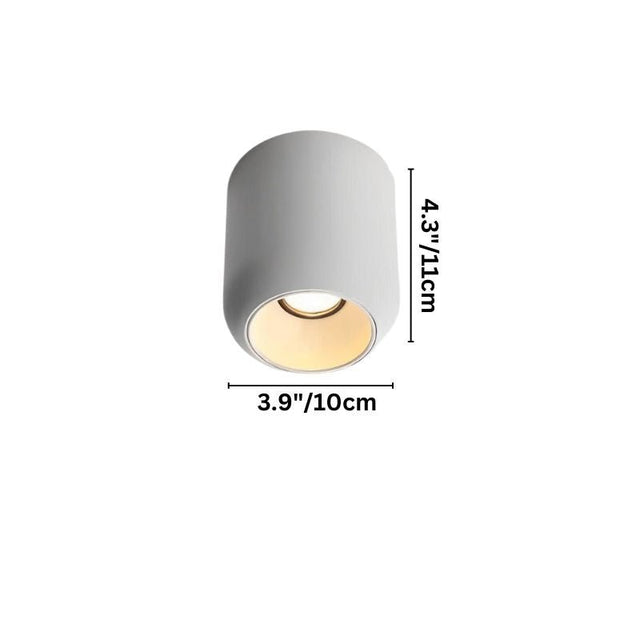

DIMENSIONS:
3.9" x 4.3" / 10cm x 11cm
Chosen By 10,000+ Homeowners

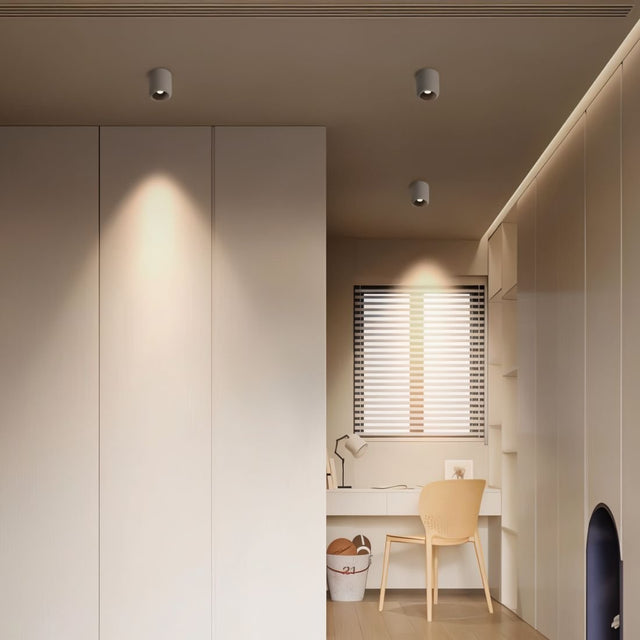

Modern and Elegant Office Lighting
Ideal for work areas or offices that need focused illumination.
Focused Illumination for Living Spaces
Perfect for creating ambiance and highlighting features in living rooms.

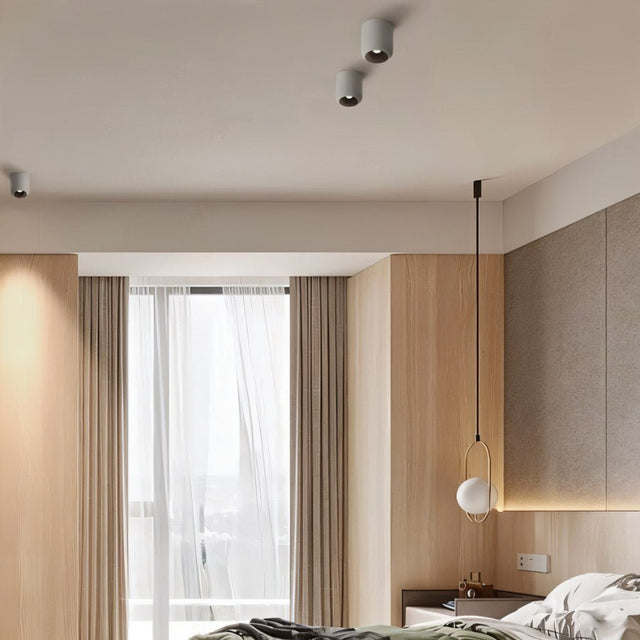

Stylish and Functional Bedroom Lighting
Sleek, compact design fits seamlessly into modern bedroom settings.
Frequently Asked Questions
What is the shipping timeframe?
The shipping time for the Graziella Downlight is between 10-15 days.
How easy is the installation process?
The installation process for the Graziella Downlight is straightforward and user-friendly! Simply turn off the power supply at the main circuit breaker, mark and cut holes in the ceiling for the downlights, connect the provided driver to the power source, and wire the downlights according to the provided instructions. Adjust the downlights as needed to achieve your desired lighting arrangement. For best results, we recommend using a professional installer.
What materials are used in the construction?
The Graziella Downlight is expertly crafted from premium-grade aluminum, ensuring both durability and a sleek, modern aesthetic that complements any interior design.
How does the anti-glare technology work?
The Graziella Downlight employs advanced anti-glare technology to ensure a gentle and smooth illumination experience. This technology works by diffusing the light evenly across the surface, which minimizes harsh glares and reduces eye strain. The anti-glare feature is meticulously designed to scatter light in a way that softens its impact, creating a relaxing and inviting ambiance in any space.
What is the expected lifespan?
The Graziella Downlight is expertly designed to offer a lifespan exceeding 50,000 hours, minimizing the need for frequent replacements. This durability is a testament to its high-quality construction and the advanced technology employed in its design, ensuring long-term reliability and performance in various lighting applications. Whether used in residential or commercial settings, the Graziella Downlight provides a sustainable lighting solution that combines contemporary style with enduring illumination.
Does it require any special maintenance?
The Graziella Downlight is designed for minimal maintenance, thanks to its premium-grade aluminum construction and advanced anti-glare technology. With a remarkable lifespan exceeding 50,000 hours and resistance to corrosion and rust, it ensures long-term durability and performance. Simply keep the downlight clean by occasionally dusting it with a soft cloth to maintain its sleek appearance and optimal illumination. No special maintenance is required, making it a hassle-free lighting solution for any space.
Are there any specific voltage requirements?
The Graziella Downlight operates efficiently within a voltage range of 90-260V, making it suitable for various electrical systems without the need for additional voltage converters. This wide voltage range ensures compatibility with both residential and commercial power supplies, providing vivid and radiant lighting across different environments.
What finishes are available?
Two neutral color options.
Can it be used in high-humidity areas?
Yes, the Graziella Downlight is crafted from premium-grade aluminum with remarkable resistance to corrosion and rust, making it suitable for high-humidity areas.
Is it suitable for both residential and commercial spaces?
Yes, the Graziella Downlight is suitable for both residential and commercial spaces, including living rooms, bedrooms, hotels, corridors, and retail spaces, providing versatile lighting solutions.
