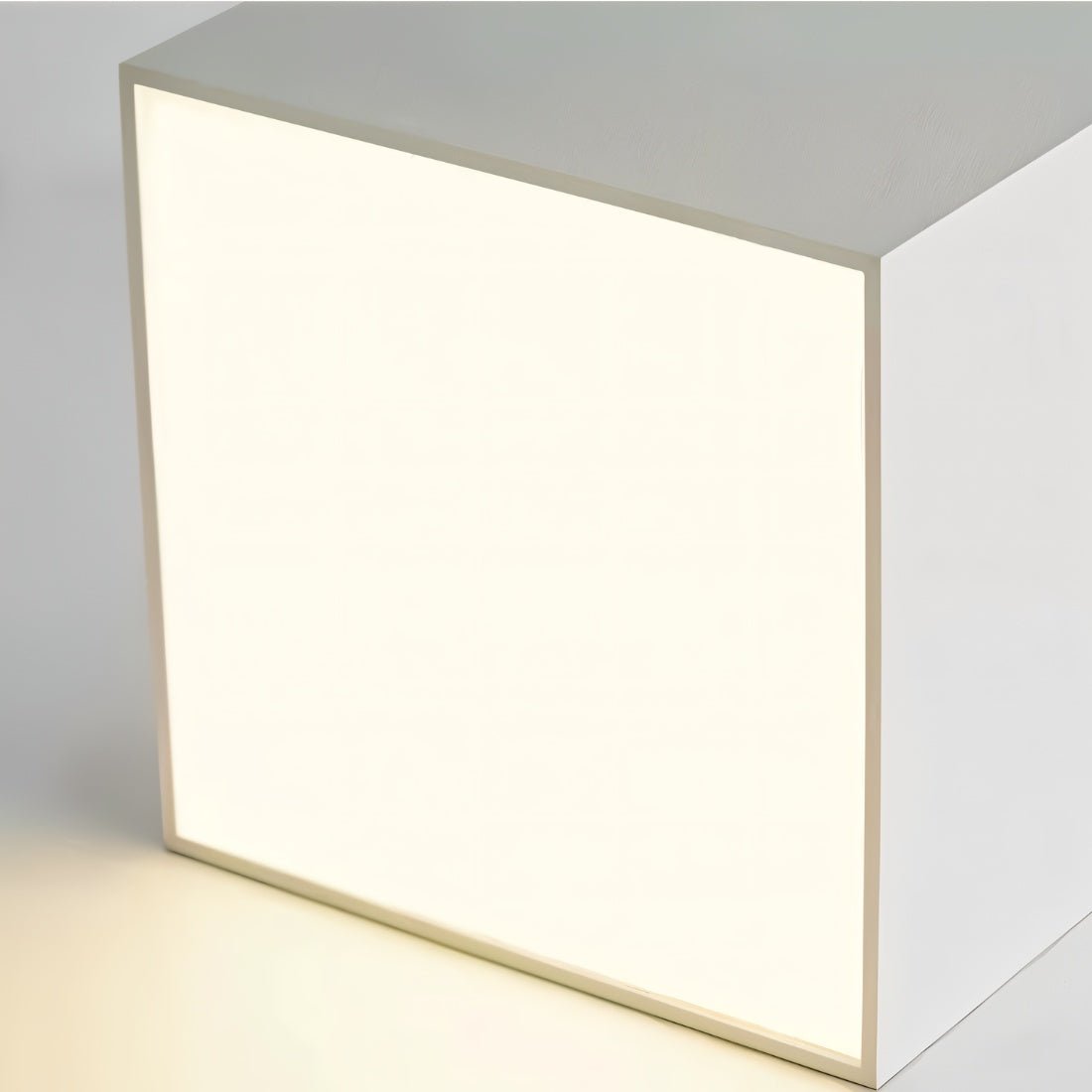

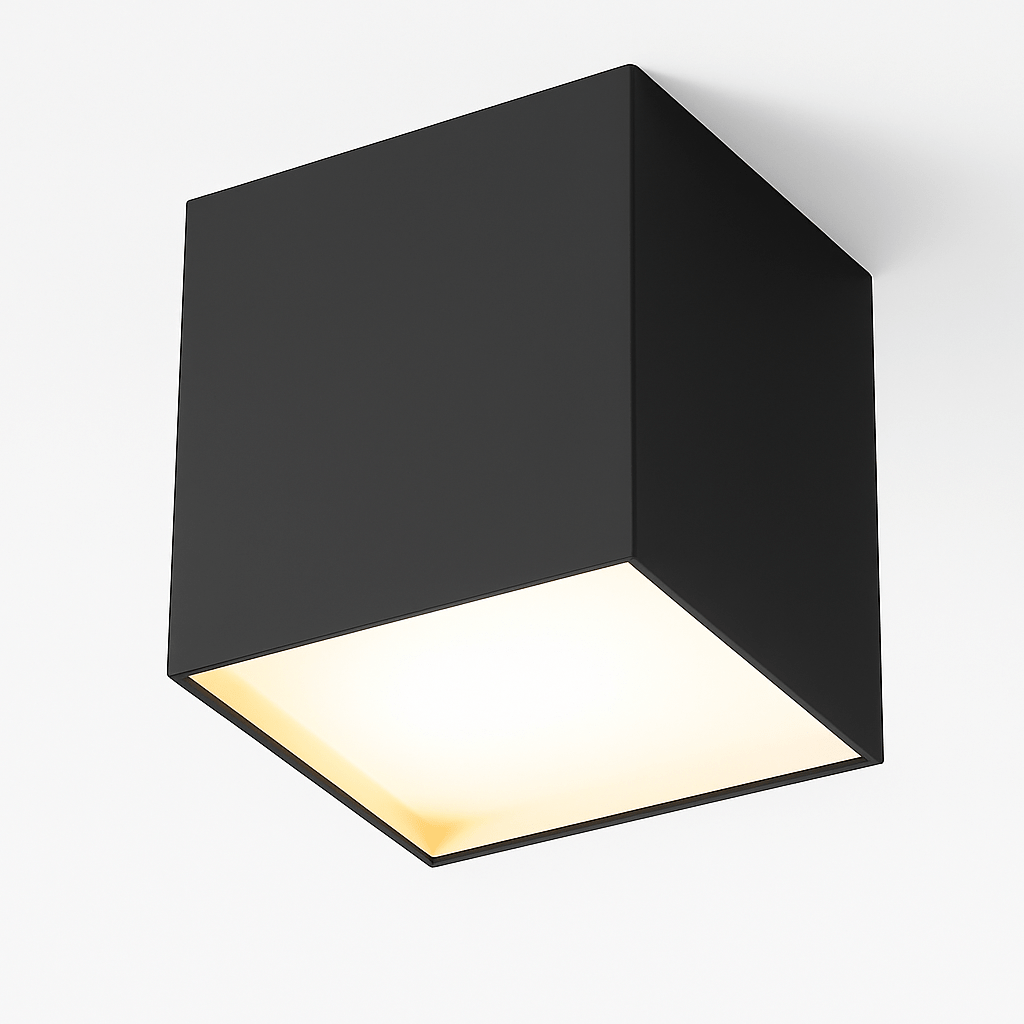

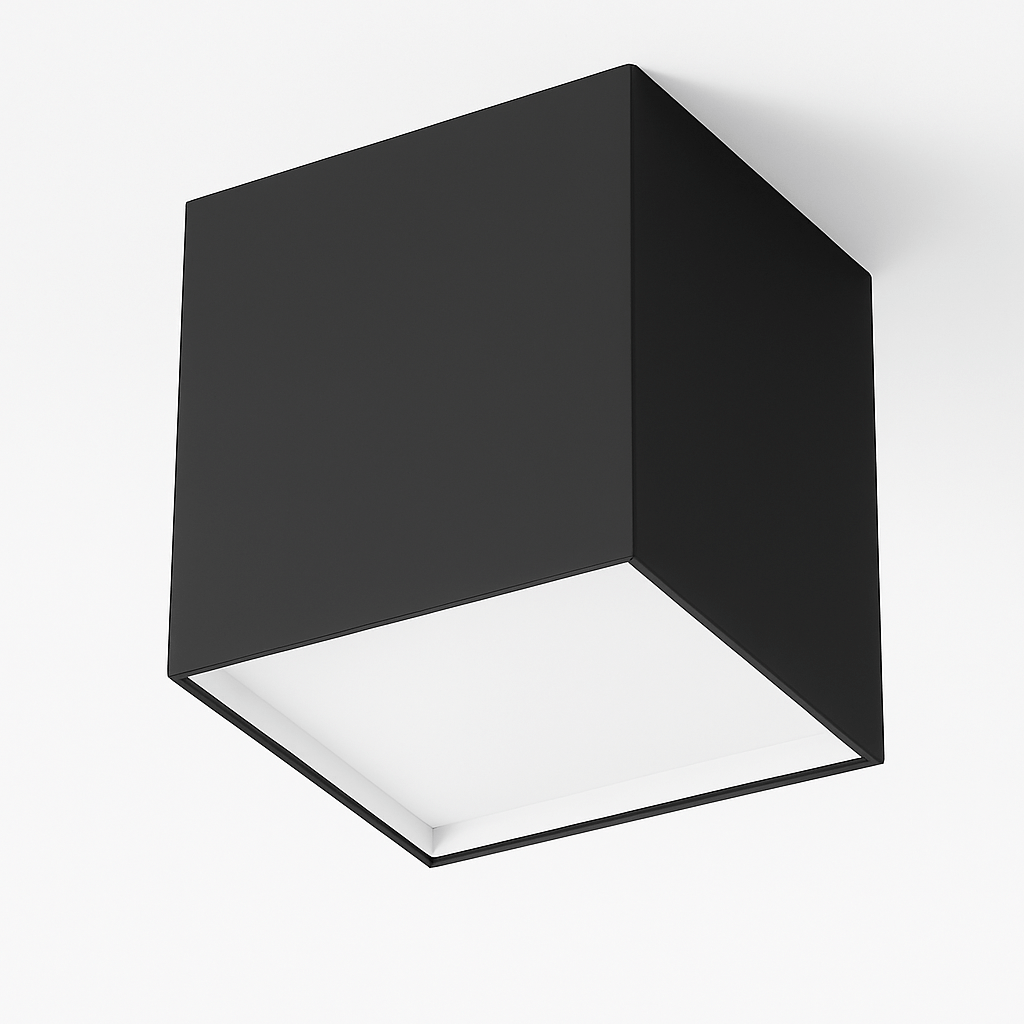

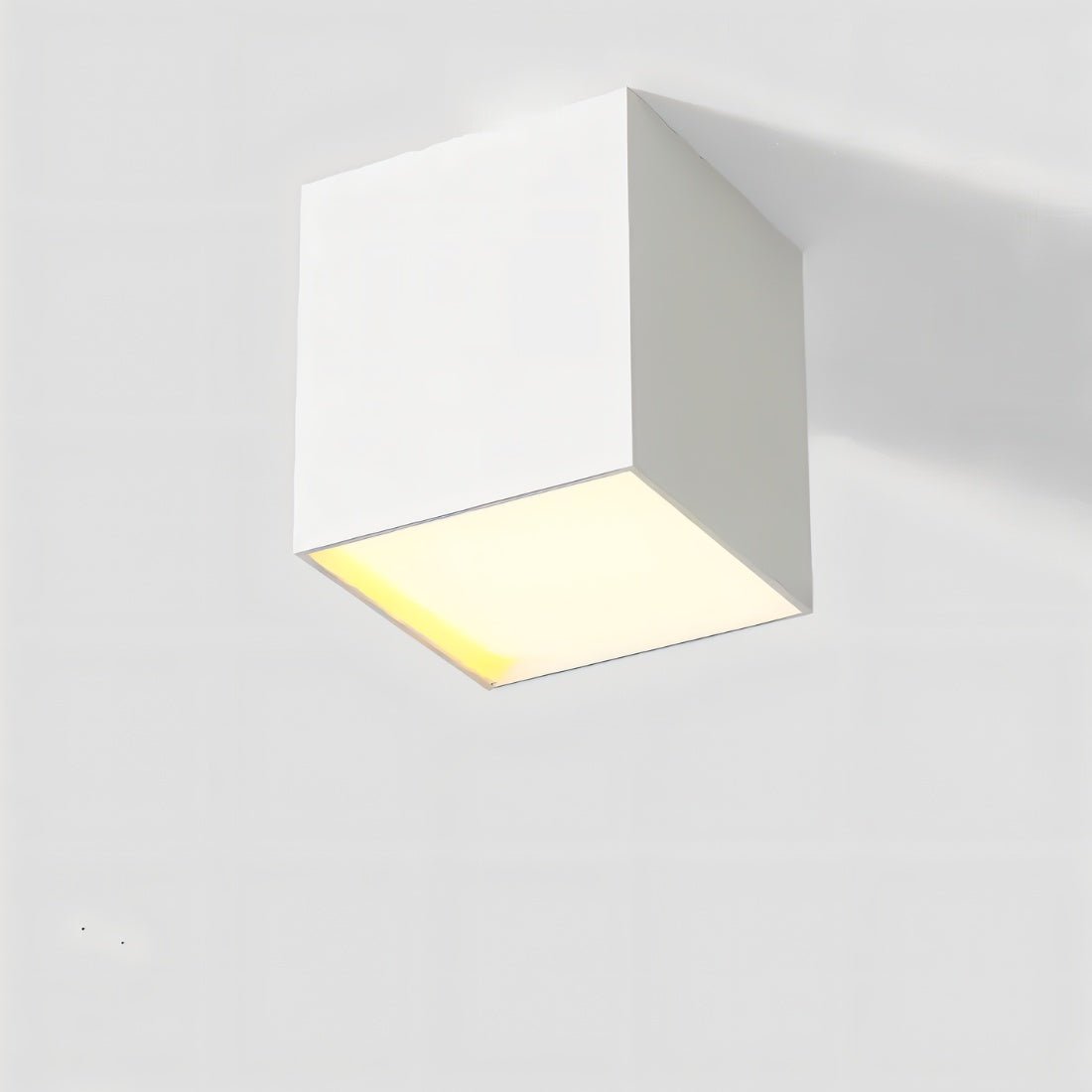

Kaiden Downlight

Member Price: $64
Regular Price: $80

Members save 20% off — Join Now

MEMO26

Members save 20% — Join Now

Tags: Ambient Lighting Architectural Lighting Bedroom Lighting Contemporary Downlight Indoor Integrated LED Lighting Living Room Metal Minimalist Modern Neutral not on discount Surface Downlight

Die-cast aluminum downlight delivers calming illumination and eco-conscious efficiency — perfect for contemporary spaces seeking understated elegance and long-lasting performance.

Free shipping — Arrives:  · 30-day returns · 1-year warranty

The estimated shipping time is a suggestion based on current material availability. Customized orders may take up to 15 additional days for custom fabrication and material sourcing.

Still deciding?
Kaiden Downlight

Kaiden Downlight

$80.00
$80.00

Product Details

Everything you need to know
Description

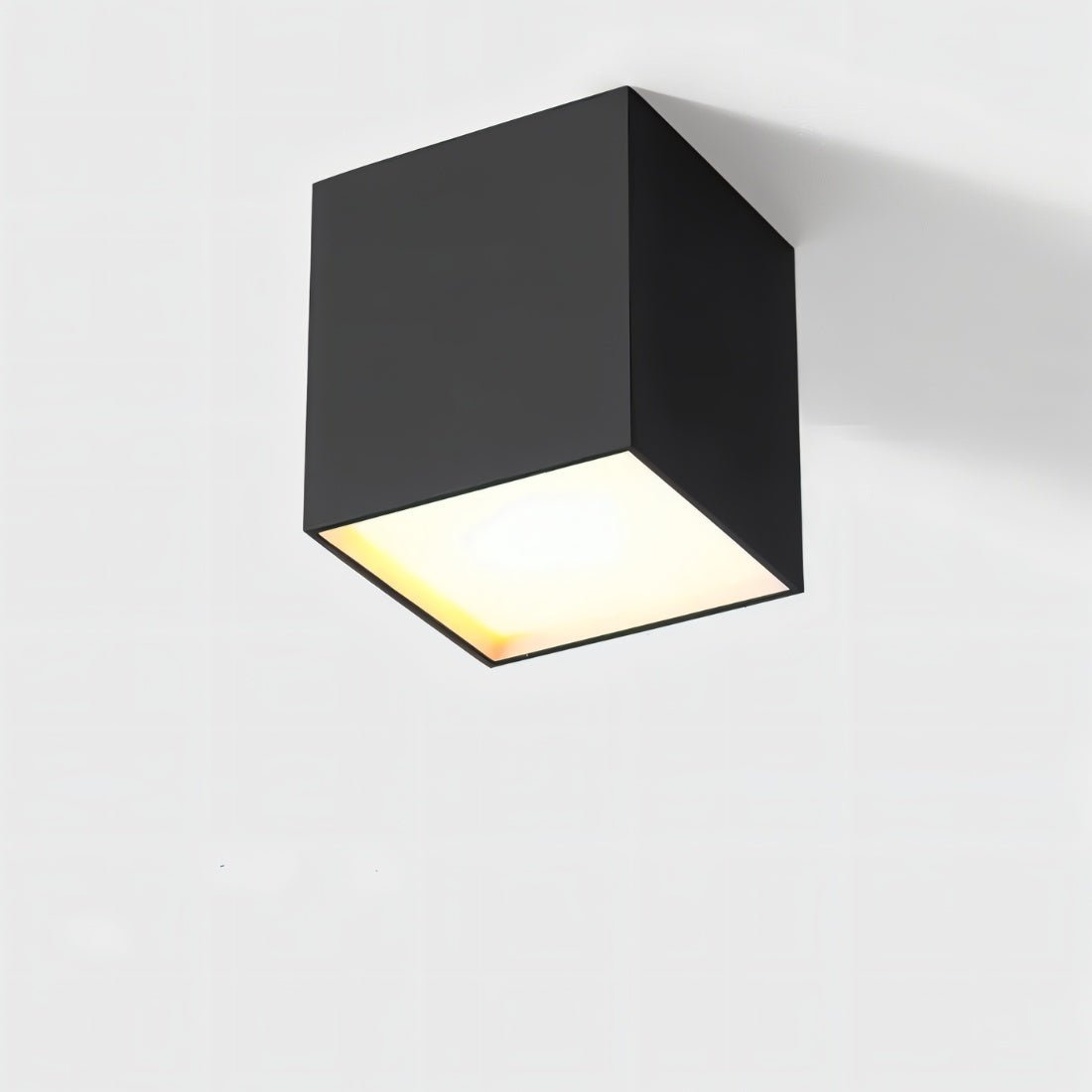

Kaiden - Modern Downlight That Illuminates with Style and Simplicity

The Kaiden Downlight exudes elegance and beauty, casting a soft, radiant glow to illuminate your space. Its sleek, square design, crafted from durable die-cast aluminum, effortlessly harmonizes with contemporary interior decor. Available in both black and white finishes, this downlight blends seamlessly with your surroundings, adding grace and sophistication to your environment.

FEATURES:

  • Constructed from high-grade Aluminum for robustness and aesthetics
  • Boasts a Color Rendering Index (CRI) exceeding Ra90, elevating your surroundings' visual allure
  • Embraces eco-conscious LED technology for efficient and sustainable illumination
  • Illuminates your space with a gentle and calming lighting ambiance
  • A 90-degree beam angle provides ideal illumination
  • Impressive IP52-rated moisture resistance for added durability
  • Offers an extended lifespan of more than 80,000 hours, reducing replacement frequency,
  • Efficiently operates within a voltage range of 90-260V, delivering vivid and brilliant light.

HOW TO OPERATE:

  • Turn off the power supply at the main circuit breaker
  • Mark and cut holes in the ceiling for the downlights
  • Connect the provided driver to the power source and then wire the downlights according to the given instructions
  • Adjust the downlights as necessary to achieve the desired lighting arrangement

DIMENSIONS:

  • 3.7" x 4.1" / 9.5cm x 10.5cm
  • 4.5" x 4.3"/ 11.5cm x 11cm
Product Specifications

Product Dimensions:
L3.7"(9.5cm) x H4.1"(10.5cm)
L3.7"(9.5cm) x H4.1"(10.5cm)
L4.5"(11.5cm) x H4.3"(11cm)
L4.5"(11.5cm) x H4.3"(11cm)

Wattage (Lumens):
15W (1650lm)
20W (2200lm)
25W (2750lm)
30W (3300lm)

Weight: 0.6 lbs (0.25 kg), 0.8 lbs (0.35 kg), 1.1 lbs (0.5 kg), 1.3 lbs (0.6 kg), 1.8 lbs (0.8 kg), 2 lbs (0.9 kg)
Material: Aluminum

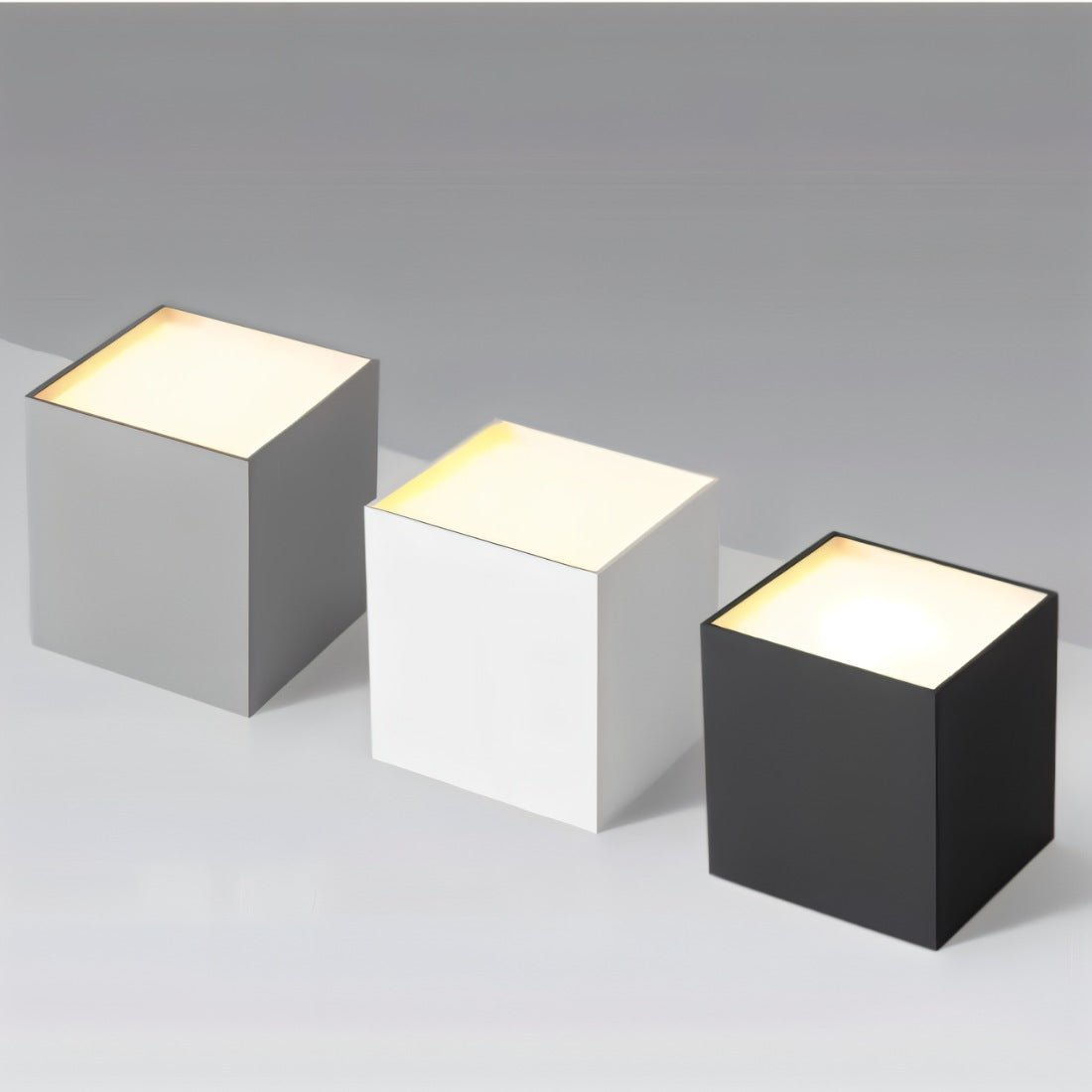

Finish: Black, White
Light Source: Integrated LED
Dimmable: Yes (Optional)
Voltage: 90-260VAC
Installation Type: Hardwired
Sloped Ceiling Compatible?: Yes
Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

We recommend professional installation by a certified technician.
Installation Guide

Details

Mounting Types: Downlights are available in trimless, recessed, semi-recessed, surface-mounted, and track-mounted formats. Be sure to confirm the mounting type in the product listing before beginning installation.
Ceiling Compatibility: Most models are designed for drywall ceilings. Some may also be compatible with concrete or drop ceilings, check the technical documentation for guidance.
Dimming: Many designs are dimmable when used with compatible drivers and wall dimmers.
Power Source: All models are hardwired and connect directly to a ceiling electrical junction.
Trim Integration: Trimless downlights may require professional finishing or flush-mount drywall techniques.
Track Compatibility: Track-mounted options are installed onto compatible rail systems. Refer to your product’s specification for track type.

Tools You May Need
  • Drill
  • Keyhole or drywall saw (for recessed or trimless installations)
  • Screwdriver
  • Voltage tester
  • Wire stripper
  • Wire nuts (included with most fixtures)
  • Screws and wall anchors (for surface mounting)
  • Level
  • Measuring tape or pencil
Installation Steps

Step 1: Turn Off Power
 At the breaker panel, shut off power to the installation circuit. Use a voltage tester to confirm that no current is present before starting.

Step 2: Prepare the Ceiling Opening (Recessed & Trimless Only)
 If the fixture requires a ceiling cutout, use the provided template to mark your opening. Cut carefully with a drywall saw or hole cutter. Trimless models may require deeper space and additional setup for seamless finishing.

Step 3: Install Mounting Hardware or Fixture Housing

  • For recessed and trimless designs, insert the housing into the ceiling cavity and secure it with spring clips or fasteners. Trimless models may need joist framing for proper support.
  • Semi-recessed fixtures partially install into the ceiling and are secured per the included instructions.
  • Surface-mounted downlights attach directly to the ceiling surface or an existing junction box using screws and wall anchors.
  • Track fixtures require the installation of a compatible track system first. The fixture then locks into place on the track.

Step 4: Connect the Wiring
 Match the fixture wires to the ceiling wires:

  • Black to black (live)
  • White to white (neutral)
  • Green or bare to the ground wire
    Secure each connection with wire nuts, and neatly place the connected wires back into the housing or box.

Step 5: Final Assembly

  • Trimless fixtures must be mudded and feathered into the ceiling plane before final painting for a seamless finish.
  • Recessed, semi-recessed, and surface fixtures are typically completed by twisting or snapping the trim or body into place.
  • For track lights, position and rotate each fixture head along the track as needed after locking it into the track rail.

Step 6: Restore Power and Test
 Return to the breaker panel and switch the circuit back on. Use the wall switch or dimmer to test your fixture and verify proper operation.

Important Tips
  • Professional installation is recommended for trimless or recessed downlights, especially when mudding or insulation is involved.
  • Always follow local electrical codes and regulations during installation.
  • Use only compatible drivers and dimmers as specified for the fixture.
  • Maintain safe spacing from insulation when installing into ceiling cavities to prevent overheating.
Still need help?

Our support team is ready to assist with customization or technical questions.
Email: help@residencesupply.com
Why you'll love it
  1. Sleek square design complements modern interiors
  2. High CRI enhances color accuracy
  3. Wide voltage range ensures versatile installation
Request call back

Our design concierge will call you within 2 minutes.

    Thank you! We've received your request.

    Our design team will reach out within 24 hours to discuss your project.
    Design Consultation

    Need help planning your project?
    Book a complimentary 15-minute consultation with our design team for layout guidance and expert advice.
    Book now
    Kaiden - Modern Downlight That Illuminates with Style and Simplicity

    The Kaiden Downlight exudes elegance and beauty, casting a soft, radiant glow to illuminate your space. Its sleek, square design, crafted from durable die-cast aluminum, effortlessly harmonizes with contemporary interior decor. Available in both black and white finishes, this downlight blends seamlessly with your surroundings, adding grace and sophistication to your environment.

    FEATURES:

    • Constructed from high-grade Aluminum for robustness and aesthetics
    • Boasts a Color Rendering Index (CRI) exceeding Ra90, elevating your surroundings' visual allure
    • Embraces eco-conscious LED technology for efficient and sustainable illumination
    • Illuminates your space with a gentle and calming lighting ambiance
    • A 90-degree beam angle provides ideal illumination
    • Impressive IP52-rated moisture resistance for added durability
    • Offers an extended lifespan of more than 80,000 hours, reducing replacement frequency,
    • Efficiently operates within a voltage range of 90-260V, delivering vivid and brilliant light.

    HOW TO OPERATE:

    • Turn off the power supply at the main circuit breaker
    • Mark and cut holes in the ceiling for the downlights
    • Connect the provided driver to the power source and then wire the downlights according to the given instructions
    • Adjust the downlights as necessary to achieve the desired lighting arrangement

    DIMENSIONS:

    • 3.7" x 4.1" / 9.5cm x 10.5cm
    • 4.5" x 4.3"/ 11.5cm x 11cm

    Chosen By 10,000+ Homeowners

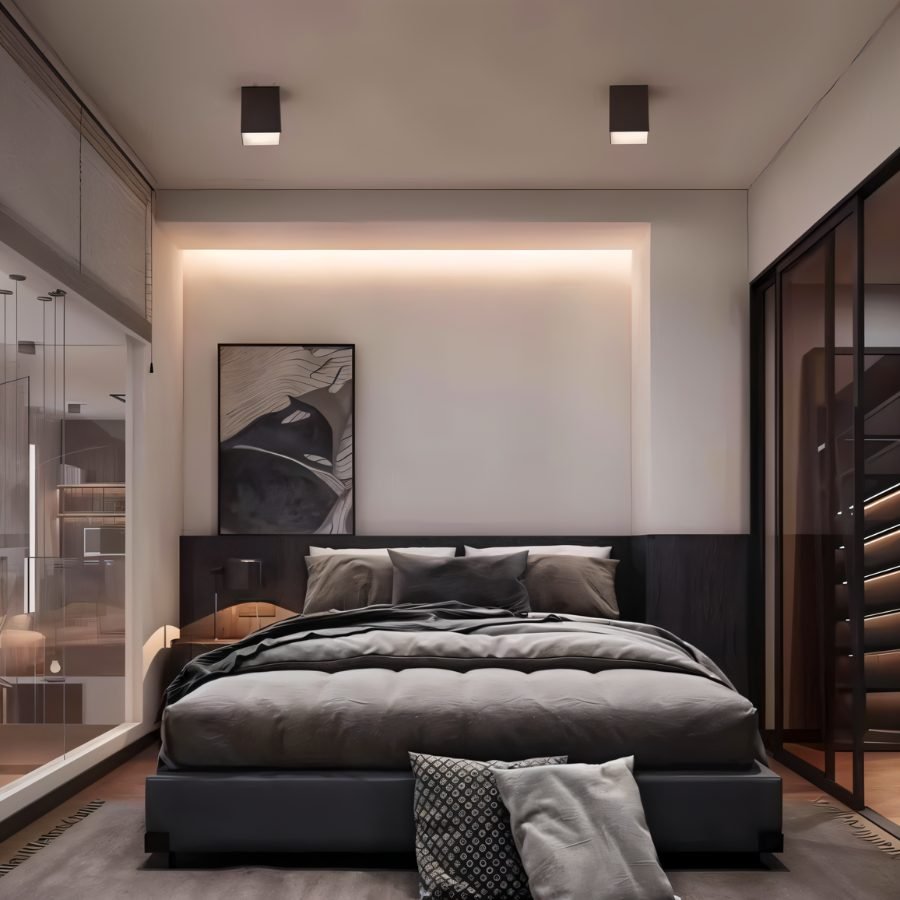

    Bedroom Serenity
    Bedroom Serenity

    Adds cozy, modern lighting for a relaxing ambiance.

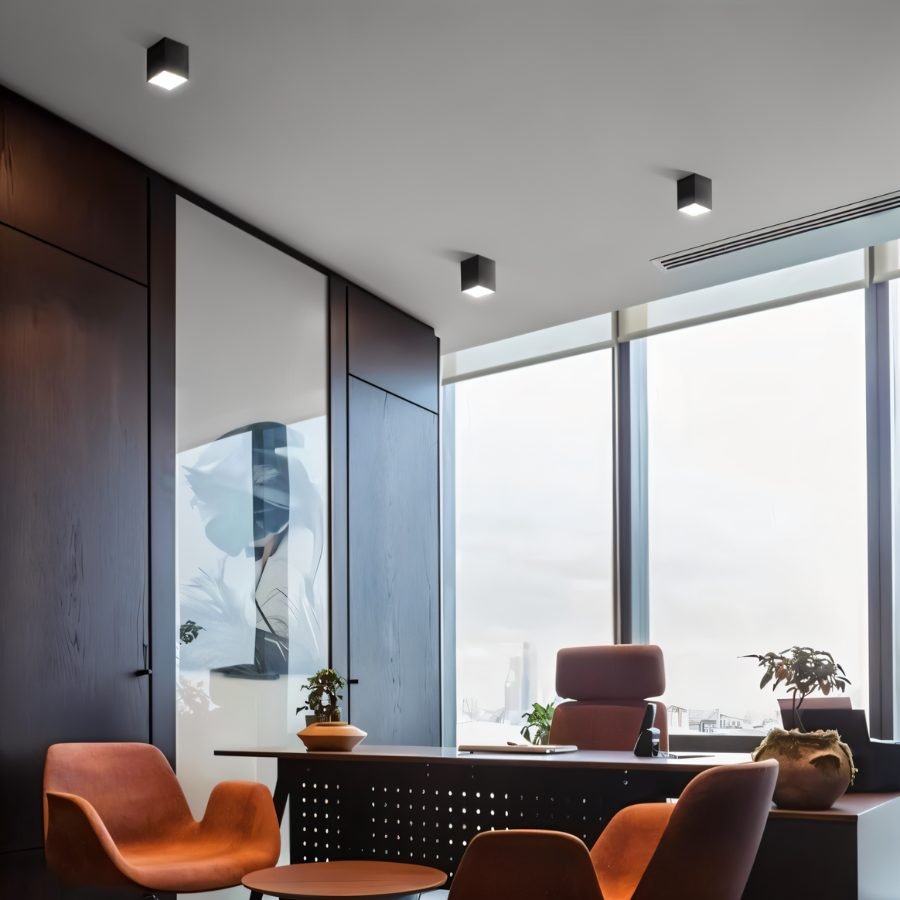

    Office Sophistication
    Office Sophistication

    Sleek lighting enhances focus and style at work.

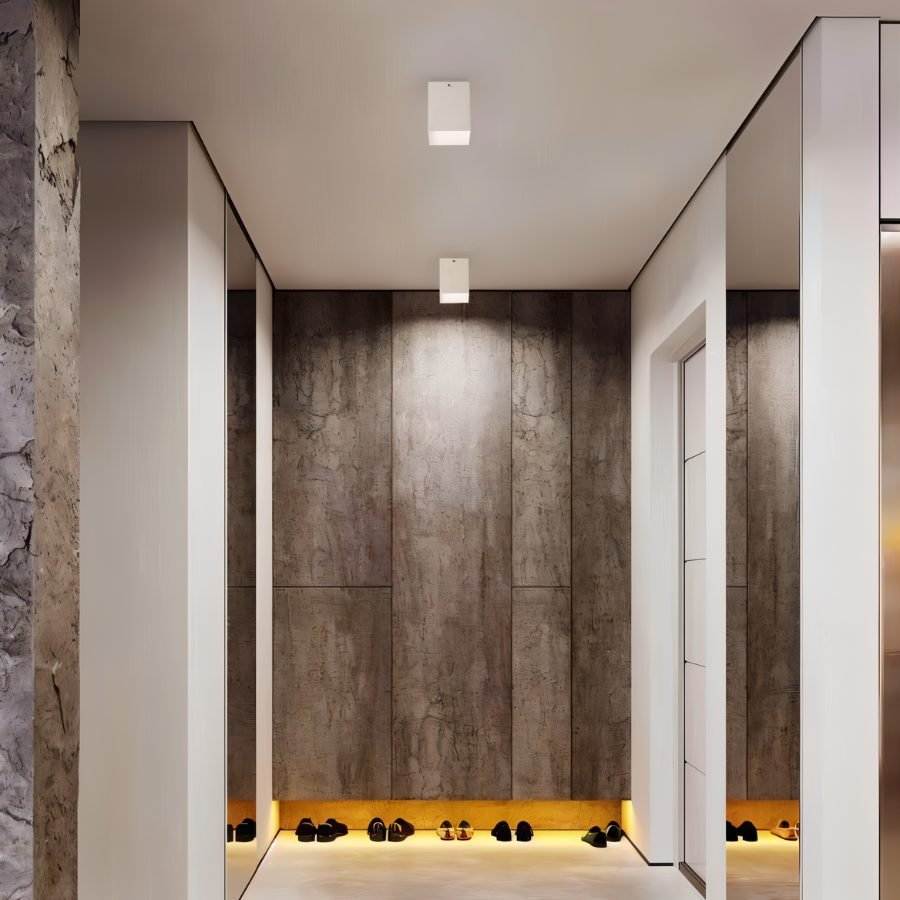

    Corridor Elegance
    Corridor Elegance

    Soft, radiant light elevates transitional spaces.

    Frequently Asked Questions

    What materials are used in the construction?

    High-grade die-cast aluminum.

    How does the installation process work?

    To install the Kaiden Downlight, first turn off the power supply at the main circuit breaker. Then, mark and cut the appropriate holes in your ceiling for the downlights. Connect the provided driver to your power source and wire the downlights according to the included instructions. Finally, adjust the downlights as needed to achieve your desired lighting arrangement. For best results, we recommend using a professional installer. Enjoy the modern elegance and minimalism of your new lighting!

    What is the lifespan of this product?

    The Kaiden Downlight offers an impressive lifespan of over 80,000 hours, ensuring you enjoy its elegant and efficient illumination for years to come. This durability makes it a top choice for those looking to enhance their interior spaces with long-lasting, modern lighting solutions.

    Is this product eco-friendly?

    Absolutely, the Kaiden Downlight is an eco-friendly lighting solution. It utilizes advanced LED technology, which not only provides efficient and sustainable illumination but also significantly reduces energy consumption compared to traditional lighting options. This commitment to eco-conscious design ensures that while you enjoy a beautifully lit space, you are also making a positive impact on the environment.

    Does it provide adequate moisture resistance?

    Yes, the Kaiden Downlight provides adequate moisture resistance with an IP52 rating. This rating indicates that the downlight is protected against dust ingress and dripping water when tilted up to 15 degrees, making it suitable for use in environments where moisture is present. This feature, combined with its robust construction from high-grade aluminum and a long lifespan of over 80,000 hours, ensures that the Kaiden Downlight is both durable and reliable for various indoor settings, enhancing its functionality and appeal in spaces requiring resilient lighting solutions.

    How does the light quality compare to other options?

    The Kaiden Downlight stands out in terms of light quality due to its exceptional Color Rendering Index (CRI) exceeding Ra90, which ensures that colors appear more vibrant and true to life compared to many other lighting options. Additionally, its eco-conscious LED technology provides efficient and sustainable illumination, creating a gentle and calming ambiance. With a 90-degree beam angle, it offers ideal illumination coverage, making it a superior choice for enhancing the visual allure of any contemporary space.

    What voltage range does it operate within?

    The Kaiden Downlight operates efficiently within a voltage range of 90-260V, ensuring vivid and brilliant light across various electrical systems.

    What is the beam angle for illumination?

    90 degrees

    Are there multiple finish options available?

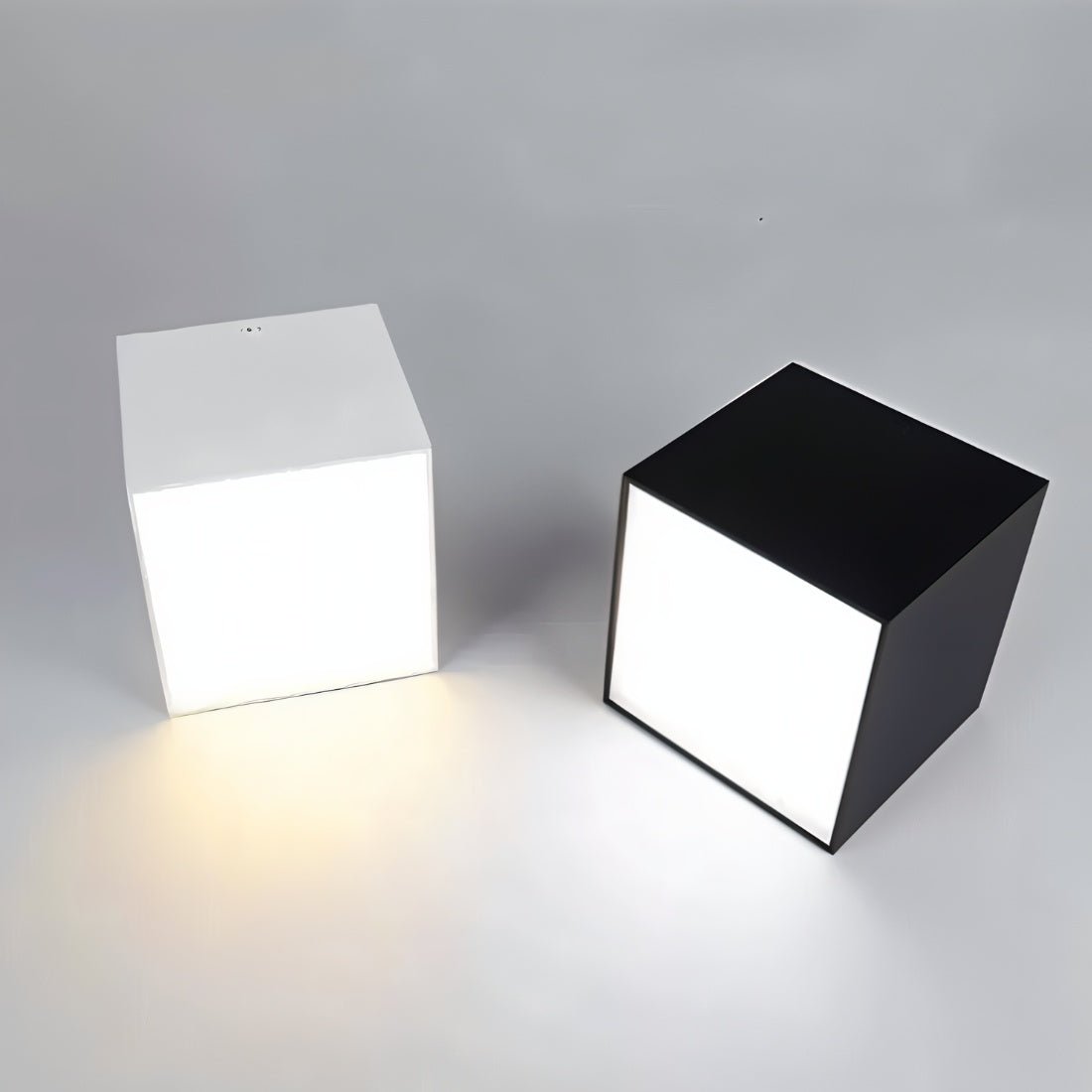

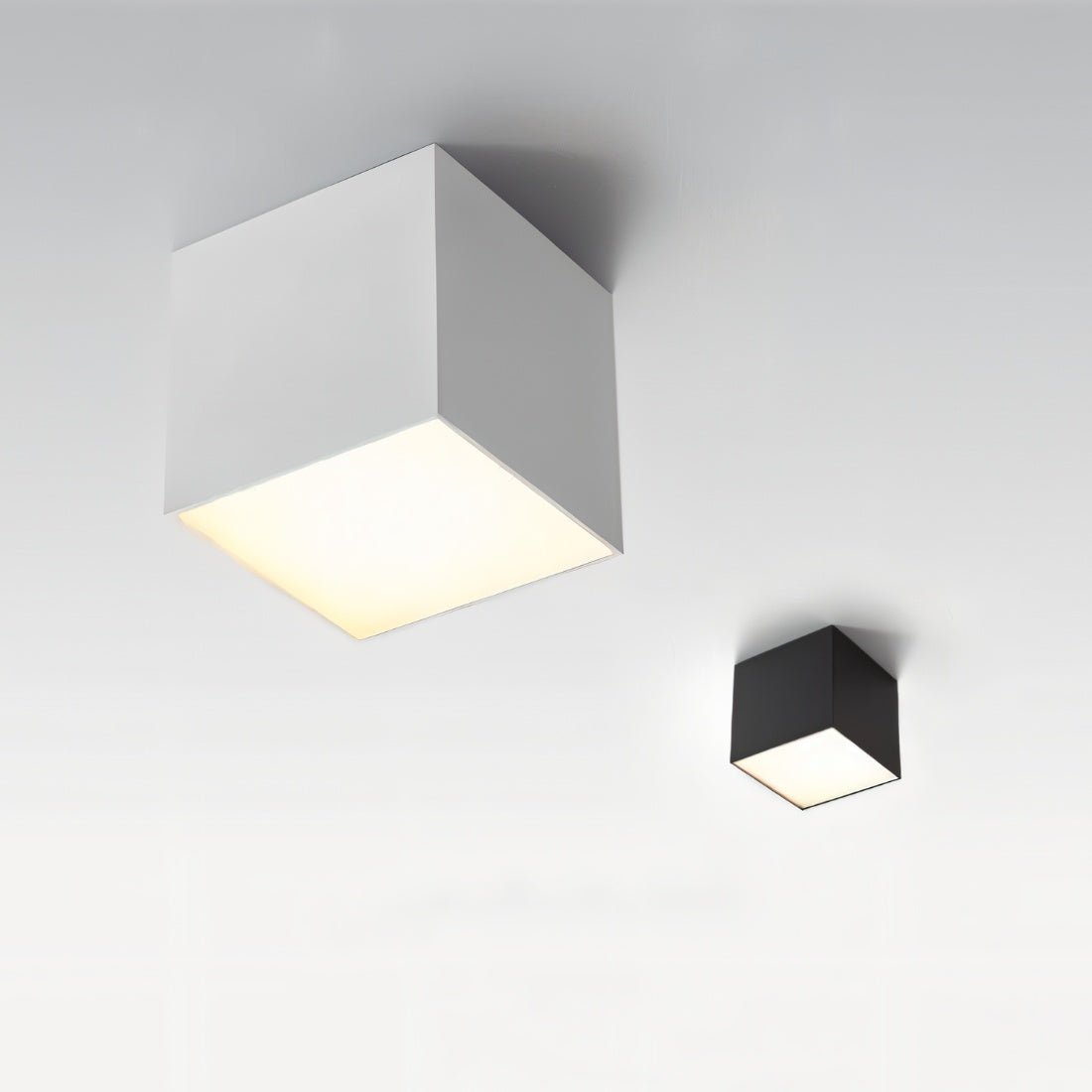

    Yes, the Kaiden Downlight is available in both black and white finishes.

    Is this product suitable for contemporary interiors?

    Yes, the Kaiden Downlight, with its sleek, square design and available black and white finishes, is ideal for contemporary interiors, offering modern grace and minimalism.
