Product Specifications
Product Dimensions: Floodlight: 11.8"(30cm) x 1.2"(3.2cm) x 0.4"(1.1cm) Grille Light A: 9.4"(24cm) x 1.2"(3.2cm) x 0.4"(1.1cm) Grille Light B: 5.5"(14cm) x 4.1"(10.5cm) x 1.3"(35cm) Fill Light: 1.8"(4.8cm) x 1.3"(3.5cm) x 2.3"(6cm) Spotlight A: 2.1"(5.4cm) x 2.9"(7.5cm) Spotlight B: 2.1"(5.4cm) x 3.8"(9.8cm) Spotlight C: 1.8"(4.8cm) x 1.3"(3.5cm) x 2.3"(6cm) Spotlight D: 3.5"(9cm) x 1.4"(3.6cm)
Wattage (Lumens): Floodlight: 12W (1320lm) Grille Light A: 10W (1100lm) Grille Light B: 10W (1100lm) Fill Light: 4W (440lm) Spotlight A: 7W (770lm) Spotlight B: 6W (660lm) Spotlight C: 5W (550lm) Spotlight D: 6W (660lm)
Material: Aluminum Finish: Black, White Light Source: Integrated LED Bulb Included: Yes Dimmable: Upon Request Voltage: 90-260VAC Installation Type: Hardwired Sloped Ceiling Compatible?: Yes Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE
Why you'll love it
Durable premium aluminum construction ensures longevity
Magnetic rails allow flexible light positioning
Customizable length adapts to any room
Installation Guide
Details
Mounting Styles: The magnetic track system can be installed in four configurations: Plaster-in (trimless), Embedded (recessed), Surface-mounted, and Suspended (hanging). Choose the method that matches your space and ceiling structure. Power Supply: Connects directly to a ceiling or wall junction box via an integrated power feed. Some layouts may use a remote driver or surface driver box. Fixture Attachment: Light modules snap magnetically into the track and can be repositioned without tools. Ceiling Compatibility: Supports installation on flat or sloped ceilings. Dimming: Many modules are dimmable. Always verify compatibility with dimmers and power drivers before use.
Tools You May Need
Drill and drill bits
Screwdriver
Voltage tester
Wire stripper
Wire nuts
Mounting anchors and screws
Measuring tape and pencil
Level
Optional: drywall saw (for embedded installs)
Optional: suspension cables and ceiling toggles (for hanging systems)
Installation Steps
Step 1: Turn Off Power Shut off electricity at your breaker panel before starting. Use a voltage tester to confirm power is off at the junction box.
Step 2: Select Mounting Type and Prepare Surface Choose one of the following installation styles:
Plaster-in (Trimless): Cut and frame the ceiling to embed the track channel flush with drywall. Once installed, apply joint compound around the edge and sand smooth before painting.
Embedded (Recessed): Cut a ceiling slot to fit the track body. Slide the channel into the opening and screw it into joists or framing using the provided holes.
Surface-Mounted: Align the track directly on the ceiling and secure it with anchors and screws through the pre-drilled mounting holes.
Hanging (Suspended): Measure and mark suspension points. Install ceiling toggles or anchor bolts, then attach hanging wires to the track body. Adjust to your desired drop height before final tightening.
Step 3: Connect Electrical Power At the power feed end of the track, connect the ceiling wires to the fixture wires:
Black (live) to black
White (neutral) to white
Green or bare wire to ground
Use wire nuts to secure each connection. Tuck wires neatly into the junction box and secure the power feed cover or enclosure.
Step 4: Join Additional Tracks (if applicable) If your layout includes corners or extended runs, use magnetic or mechanical connectors to join track segments. Ensure electrical continuity by aligning the copper conductors inside the channels.
Connector Types
I-Connector: Used for linear, in-line connections between two straight track sections.
L-Connector (Ceiling to Ceiling): Makes 90° ceiling turns.
L-Connector (Ceiling to Wall): Allows transition from ceiling-mounted tracks to wall-mounted segments.
T-Connector: Enables three-way connections for branching track layouts.
Choose the appropriate connector based on your layout and desired direction of the track run. All connectors are designed for quick snap-in assembly with magnetic or mechanical alignment.
Step 5: Install Magnetic Light Modules Once the track is powered, attach the light modules by simply snapping them into the channel. The magnetic system ensures both mechanical hold and electrical contact. Modules can be repositioned or swapped at any time without tools.
Step 6: Restore Power and Test Switch power back on at the breaker. Use the wall switch or connected dimmer to activate the system. Check that all modules illuminate properly and that dimming or directional functions (if available) operate as expected.
Important Tips
Use only compatible magnetic fixtures and drivers as specified in your product guide.
For trimless and embedded systems, installation is best done during the construction or remodeling phase.
Secure all suspension cables and verify weight capacity when using the hanging mount.
Avoid over tightening screws near trimless or recessed edges to maintain a flush finish.
For complex layouts or multi-zone dimming, consult an electrician or lighting specialist.
Need help planning your custom track system?
We’re happy to help with layout, power supply pairing, or fixture compatibility.
Contact us at: help@residencesupply.com
Make it your own
Our in-house technicians can customize any order!
Popular Changes:
Hanging length
Material color or paint
Emitting color
Dimmable add-on
Add or reduce size/dimension
Redesign the entire lighting fixture to your suggestion
What We Do:
Make minor adjustments above
Create CAD drawings for your custom design
3D render the product into your photo
Speak with an expert on live chat or call us now from 9AM EST to 6PM EST.
The heads pivot and angle easily allowing light to land where it is needed.
Seamless LED Illumination
Provide steady, warm brightness without exposed bulbs or glare.
A Ceiling That Stays Open
Its slim profile on the ceiling plane keeps the room uncluttered.
Flexible Lighting Framework
As the layout evolves the lighting adapts just as easily.

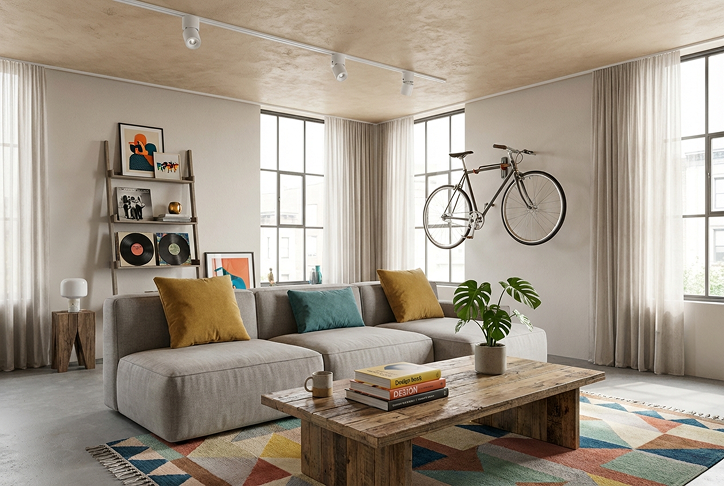

A Ceiling Track Designed for Control
Dawn begins as a simple line across the ceiling, a slim aluminum rail that quietly organizes the space beneath it. It gives the room a sense of direction, as if the lighting has finally found its place.
Each module sends light exactly where it belongs. The effect is clean and deliberate, the kind of lighting that makes a room feel instantly more composed.
Made For Every Mood In Your Home.
Every room carries a mood, and Dawn knows how to speak each one fluently.

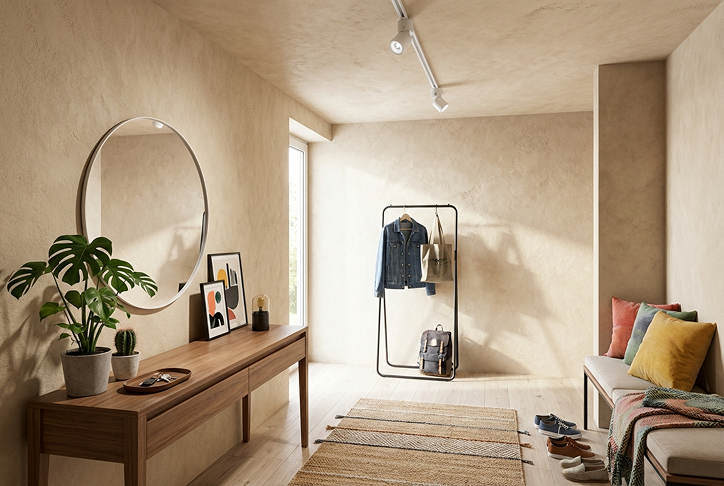

Light That Guides the Way In
The moment you step inside, the ceiling begins to work quietly. Dawn runs in a slim aluminum track that almost disappears overhead. The result feels calm and deliberate, the house seems to welcome you with light that knows where to go.
Recommended Configuration
Install in a straight run along the entry path. Angle heads to wash the wall or highlight a console so the space feels guided rather than simply bright

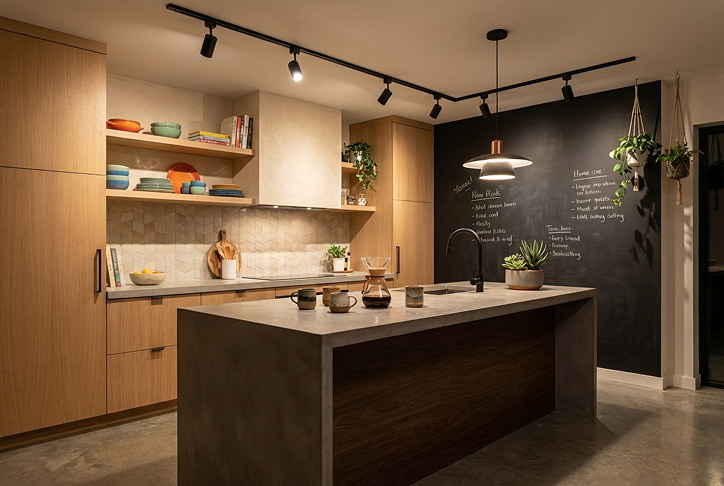

Clarity Where It Matters Most
In the kitchen, light becomes part of the rhythm of the room. Dawn lets you position illumination exactly over the places where hands move most. Instead of harsh overhead light, the room receives focused clarity that moves with how the kitchen is used.
Recommended Configuration
Space adjustable heads evenly to create balanced task lighting across counters.
A Ceiling That Responds to the Room
Because each head can shift along the track, the lighting evolves as the room changes. Furniture moves, art rotates, and the illumination adapts without effort. Dawn becomes more about control than lighting.
Recommended Configuration
Multi-gang configurations for controlling chandeliers, sconces, accent lighting, and dimmers independently. Position near dining table and main seating areas for intuitive access.
Light That Moves With the Space
Because the modules glide along the track, the atmosphere can change as easily as the room itself. Slide a fixture toward artwork to bring it forward. Shift another toward a table where people gather.
Because the modules glide along the track, the atmosphere can change as easily as the room itself. Slide a fixture toward artwork to bring it forward. Shift another toward a table where people gather.
Dawn Track Light System – A Line That Brings The Room Into Focus
The Dawn does not try to impress the eye, it organizes the space. The slim aluminum track runs cleanly across the ceiling. Then the glow begins to travel along the line, falling gently over counters, tables, and walls. What was once just a ceiling becomes a quiet framework that guides where light belongs.
WHY YOU WILL LOVE IT:
When illuminated, the light flows along the track and settles evenly across the surfaces below.
The slim aluminum profile keeps the ceiling visually calm, allowing the room itself to remain the focus.
As furniture shifts or artwork moves, the track system allows the lighting to adapt with the space.
In a living space, the controlled glow softens the room without flooding it with brightness
What You'll Notice Every Time
The Quiet Details That Define Our Products
Built With Durable Materials
It is designed to perform consistently without sagging, warping, or visual wear.
Adapts With the Room
The track system allows adjustments without replacing the entire fixture.
A Design That Ages Well
Its minimal profile works with modern interiors today and will continue to feel relevant years from now.
An Upgrade You’ll Appreciate Daily
Energy-efficient LED compatibility means long-lasting performance and lower maintenance.
Specifications & Downloads
Plate DimensionsSolid Brass
MaterialSolid Brass
VoltageSolid Brass
AmperageSolid Brass
ListingsSolid Brass
WeightSolid Brass
All documents include electrical ratings, compatible dimmer types, and mounting dimensions.
Need Help Planning Your Project?
Our design team is here to help with layout, finish coordination, and switch placement.
Need Help Planning Your Project?
Book a 15-minute call with our design team for switch layout guidance and finish pairing support.
The shipping time for the Dawn Track Light System is between 15-20 days. Customizations may increase shipping times.
Is installation straightforward for a DIY project?
Absolutely! The Dawn Track Light System is designed with user-friendliness in mind, making it a straightforward DIY project. Simply install the track within your ceiling, plug it into an electric socket, and use the magnetic track to customize your lighting. For optimal results and safety, we recommend using a professional installer.
What materials are used in the construction?
The Dawn Track Light System is meticulously crafted from premium aluminum, ensuring top-notch quality and durability while adding a sleek, modern touch to any interior.
Are energy-efficient LED bulbs included?
Yes, the Dawn Track Light System is designed to be compatible with energy-efficient LED bulbs, ensuring that your lighting solution is not only stylish and sophisticated but also cost-effective and eco-friendly. This compatibility underscores our commitment to providing high-quality, durable, and sustainable lighting options that enhance any modern space.
How do I customize the magnetic tracks?
The Dawn Track Light System offers a highly customizable lighting solution with its innovative magnetic tracks. To customize the magnetic tracks, you can easily reconfigure the layout of the lights according to your preferences or the needs of your space. The system's magnetic rails allow for quick adjustments and repositioning of the individual light elements. Simply detach and reattach the lights along the magnetic track to achieve your desired lighting arrangement. This flexibility makes it perfect for those who frequently update their space or require versatile lighting solutions for different occasions or tasks.
What maintenance is required for optimal performance?
To maintain optimal performance of your Dawn Track Light System, regular dusting and cleaning of the aluminum rail and LED bulbs are recommended. Ensure the magnetic rails are free from debris to maintain their reconfigurability. Periodically check the connectors and the overall system for any signs of wear or damage, and replace any faulty components promptly. This minimal maintenance will help sustain the system's efficiency and longevity, ensuring your space remains beautifully illuminated.
Can the rail track be extended?
Yes, the rail track of the Dawn Track Light System can be easily extended to meet your specific needs using user-friendly connectors. This feature allows for customization and flexibility, ensuring the lighting system can adapt to various space requirements and design preferences.
What is the operational life of the LEDs?
50,000 hours
Is this lighting system suitable for modern interiors?
Yes, the Dawn Track Light System is ideal for modern interiors due to its sleek, minimalist design, premium aluminum construction, and compatibility with energy-efficient LED bulbs.
How do I turn on the lighting system?
Install the Dawn Track Light System in your ceiling, plug it into an electric socket, and use the magnetic track to customize your lighting.
Complete The Look
Build a cohesive suite with matching brass accessories — designed to coordinate perfectly with your toggle switches.
Cart
Choose your shipping
$0$5,000
Dawn Track Light System
Event Price:$60
Regular Price:$75
Regular price
• Use code "SPRING20" for 20% off
TRANSFORM YOUR SPACE INTO A SANCTUARY OF STYLE AND SOPHISTICATION
The Dawn Track Light System is a sleek and timeless lighting solution crafted from premium aluminum that effortlessly enhances any space's elegance. With its minimalist design, durability, and compatibility with energy-efficient LED bulbs, it not only brings a touch of modern style to your interior but also offers a cost-effective and eco-friendly lighting solution, making it the ideal choice to illuminate and elevate your space.
FEATURES:
Engineered for contemporary environments, this state-of-the-art lighting solution is ideal for modern spaces
Crafted from premium aluminum, it ensures top-notch quality and durability
Featuresan exceptionally slim aluminum rail track
Magnetic rails are easily reconfigured to suit changing preferences with no difficulty
Easily extend the rail track to your exact needs with user-friendly connectors
Enjoy an impressive operational life of 50,000 hours, promising long-lasting dependability
Equipped with 220V LEDs, providing brilliant and uniform illumination for your space
HOW TO OPERATE:
Install it within your ceiling
Plug it into any electric socket to turn it on
Use the magnetic track to customize your lighting
DIMENSIONS:
Floodlight - 11.8" x 1.2" x 0.4" / 30cm x 3.2cm x 1.1cm
Grille Light A - 9.4" x 1.2" x 0.4" / 24cm x 3.2cm x 1.1cm
Grille Light B - 5.5" x 4.1" x 1.3" / 14cm x 10.5cm x 35cm
Fill Light - 1.8" x 1.3" x 2.3" / 4.8cmx 3.5cm x 6cm
Spotlight A - 2.1" x 2.9" / 5.4cm x 7.5cm
Spotlight B - 2.1" x 3.8" / 5.4cm x 9.8cm
Spotlight C - 1.8" x 1.3" x 2.3" / 4.8cmx 3.5cm x 6cm
Spotlight D - 3.5" x 1.4" / 9cm x 3.6cm
ENDURING ELEGANCE
The minimalist design of the Dawn ensures it complements a wide range of interior styles, providing a timeless elegance that never goes out of fashion.
COHESIVE DESIGN
The customizable length options and minimalist aesthetics create a cohesive and harmonious look that seamlessly blends with your interior decor.
EASY INSTALLATION
The system's user-friendly design simplifies installation, allowing you to quickly and effortlessly transform your space with elegant, effective lighting.
DUAL COLOR OPTIONS
It is available in two stylish colors, letting you choose between a sleek matte black or a white finish to perfectly suit your interior decor.
