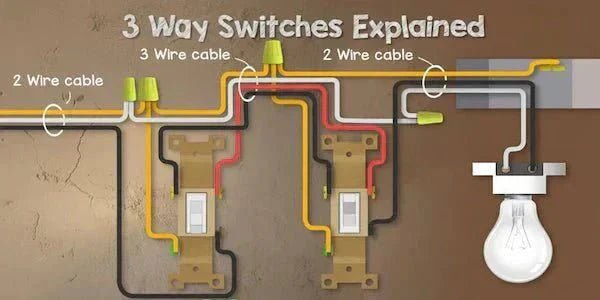

3-Way Light Switch Wiring: A Handy Guide for Homeowners
Megan Reed |
A 3-way switch circuit lets you control one light from two locations. The correct wiring depends on where power enters the circuit and where the light fixture is located. Use the five diagrams below to find the layout that matches your home before disconnecting any wires.
The Brass Toggle Switch
$105.00
View product →
The Brass 3-Way Rotary Dimmer Switch
$150.00
View product →
The Brass Dimmer Switch
$130.00
View product →Understanding the Basics of 3-Way Light Switches
Before diving into the wiring process, it's crucial to understand what a 3-way light switch is and how it works. Unlike a standard switch that controls a light from a single location, a 3-way switch allows you to control a light source from two different places. This is particularly useful in larger rooms or areas with multiple entry points, such as a staircase or a long hallway.
Each 3-way switch has three terminals: a common terminal (COM) and two traveler terminals (L1 and L2). The COM terminal is usually a different color from the other two and is where the live or hot wire goes. The traveler terminals are where the traveler wires, which run between the two switches, are connected.
The Role of the Common Terminal
The common terminal plays a crucial role in the functionality of a 3-way switch. It's the point of power for the switch. In one switch, the hot wire from the power source is connected to the common terminal. In the other switch, the wire from the common terminal goes to the light fixture. This allows the electricity to flow from the power source, through the first switch, along the traveler wires to the second switch, and then to the light fixture.
The Role of the Traveler Terminals
The traveler terminals are equally important in a 3-way switch setup. They provide the pathway for the electrical current to travel between the two switches. When the switches are toggled, they change the path of the electricity, turning the light on or off.
Tools and Materials Needed
Before starting your 3-way light switch wiring project, you'll need to gather a few essential tools and materials. Having everything on hand before you start will make the process smoother and more efficient.
Here's what you'll need:
- Two 3-way switches
- 14-2 nonmetallic-sheathed cable (Type NM-B)
- 14-3 nonmetallic-sheathed cable (Type NM-B)
- Wire strippers
- Wire nuts
- Screwdriver
- Electrical tape
- Voltage tester
3-way switch wiring diagrams: 5 common setups
Before choosing a wiring diagram
A 3-way circuit can use different wiring layouts depending on where power enters the circuit and where the light fixture is located. Match your setup to one of the five diagrams before disconnecting any wires.
- Identify which electrical box contains the incoming power.
- Identify which box or fixture receives the cable leading to the light.
- Check whether the light is between the two switches.
- For staircases, note whether the switches are on different floors or landings.
- If your wiring does not match any diagram, stop and contact a licensed electrician.
Safety note: Turn off the circuit breaker and verify that the wires are de-energized with a voltage tester before opening or disconnecting any switch. Do not identify wires by color alone. Existing wiring may have been modified, and older installations may not follow current conventions. If you are replacing an existing switch, see our guide to changing a light switch before beginning.
Diagram 1 — Power at Switch 2, Light After Switch 1
Wiring path - Power → SW2 → SW1 → Light
How to recognize this layout: Use this diagram when the incoming power cable enters the box for Switch 2 and the cable to the light fixture leaves from Switch 1. In this arrangement, the two switches are joined by traveler conductors, while the common terminal at each switch serves a different job. Match the box locations and cable route to the diagram before changing any connection.
Diagram 2 — Power at Switch 1, Light at End
Wiring path - Power → SW1 → SW2 → Light
How to recognize this layout: Use this diagram when incoming power enters the first switch box, the traveler cable runs to the second switch, and the light fixture is connected after that second switch. This is a common two-switch layout, but wire colors alone do not confirm it. Check where each cable enters and leaves before using the diagram.
Diagram 3 — Light Fixture Between the Two Switches
Wiring path - Power → SW1 → Light Box → SW2
How to recognize this layout: Use this diagram when the cable route runs from the first switch to the light fixture box and then to the second switch. The light box sits in the middle of the circuit, so its connections differ from layouts where the fixture sits after both switches. Confirm that physical route before proceeding.
Diagram 4 — Stairwell Configuration
Wiring path - Power at lower SW1 → upper SW2 → upper light
How to recognize this layout: Use this diagram when one switch is located at the lower end of a stairway and the other is at the upper end, with the light fixture positioned near one end of the run. The layout is still a 3-way circuit, but access and cable routing can make the boxes look different. Match the incoming power location, fixture location, and traveler path to the diagram.
Diagram 5 — Multiple Light Fixtures on One 3-Way Circuit
Wiring path - Power → SW1 → SW2 → Light 1 → Light 2+
How to recognize this layout: Use this diagram when two or more light fixtures are controlled together by the same pair of 3-way switches. The fixtures are connected on the load side of the circuit. If lights are controlled independently, or the circuit includes a third control location, stop and identify the system before using this diagram.
Step-by-Step Guide to Wiring a 3-Way Light Switch
Now that you understand the basics of 3-way switches and have gathered your tools and materials, it's time to get to work. Remember, safety should always be your top priority when working with electricity. Always turn off the power at the circuit breaker before starting any electrical work.
Step 1: Prepare the Wires
- Start by cutting a length of 14-3 electrical wire long enough to reach from one switch location to the other. Use your wire strippers to strip about 1/2 inch of insulation from each end of the wire.
-
From the first switch to the second switch:
Run a 14-3 NM-B cable (with white, black, red, and bare copper conductors).
From the second switch to the light fixture:
Run a 14-2 NM-B cable.
Step 2: Connect the First Switch
Connect the black (hot) wire to the common terminal on the first switch. Then, connect the red and black (traveler) wires to the traveler terminals. It doesn't matter which traveler wire goes to which traveler terminal.
Step 3: Connect the Second Switch
At the second switch location, connect the black wire from the light fixture to the common terminal. Then, connect the red and black traveler wires to the traveler terminals, just as you did with the first switch.
Note: Sequence to Follow Black, Red and White ( to avoid confusion)
Step 4: Ground Wire Connections for Safety in 3-Way Switch Circuits
A ground wire runs from the supply to switch box 1, connecting all ground terminals and wire connectors. It continues from switch box 1 to switch box 2, and then to the metal ceiling box for proper grounding and safety.
Step 5: Test Your Work
Once everything is wired up, turn the power back on at the circuit breaker. Test the switches to make sure they're working correctly. If the light turns on and off from both switches, congratulations! You've successfully wired a 3-way light switch.
Troubleshooting a 3-way switch circuit
Light does not turn on
Turn the breaker off before checking anything. Start with the bulb and breaker, then inspect for a loose wire or a connection that does not match the selected diagram. If you cannot identify the line, load, common, and traveler conductors with confidence, contact a licensed electrician.
One switch only works when the other switch is in a certain position
This often points to a common conductor being connected where a traveler should be, or a wiring layout that does not match the diagram being followed. Turn off power and compare the existing cable route with the correct diagram. Do not move wires by trial and error.
Both switches work, but the light operates in an unexpected pattern
Check that the circuit matches one of the five layouts and that the common terminal has not been confused with a traveler terminal. Traveler terminals are not the same as the common terminal. If the wiring is unclear, photograph the box and have an electrician review it.
Breaker trips after power is restored
Turn the breaker off and do not reset it repeatedly. A tripping breaker can indicate a short circuit, damaged insulation, or an incorrect connection. This is a point to stop and call a licensed electrician.
Light flickers or a dimmer behaves inconsistently
First confirm that the bulb or fixture is compatible with the dimmer. Then check that the dimmer is rated for use in a 3-way circuit and installed in the location specified by its manufacturer. Our dimmer-switch guide explains the compatibility questions to check. Loose connections can also cause flickering, so do not continue using the circuit if you suspect one.
Need control from three or more locations
A pair of 3-way switches controls one light from two locations. A third control location usually requires a 4-way switch between the two 3-way switches. Do not try to make a third location work by substituting another 3-way switch.
3-way vs. 4-way switches: which one do you need?
A 3-way switch circuit controls one light or group of lights from two locations. It uses two 3-way switches, such as one at each end of a hallway or staircase.
A 4-way switch is used when you need to control the same light from three or more locations. It sits between the two 3-way switches in the circuit. For more switch types and use cases, see our guide to different types of light switches. For example, a long hallway with controls at both ends and one in the middle usually uses two 3-way switches plus one 4-way switch.
If your home has more than two control locations, do not use the five 3-way diagrams above as a complete wiring plan. Identify whether a 4-way switch is already present, then follow the correct circuit diagram or ask a licensed electrician to confirm the setup.
Conclusion
Wiring a 3-way light switch may seem complicated at first, but with a little knowledge and patience, it's a task that most homeowners can tackle. Remember, always prioritize safety when working with electricity and don't hesitate to call a professional if you're unsure about any part of the process. With this guide, you're well on your way to adding convenience and functionality to your home's lighting system.
